Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DG322UGB

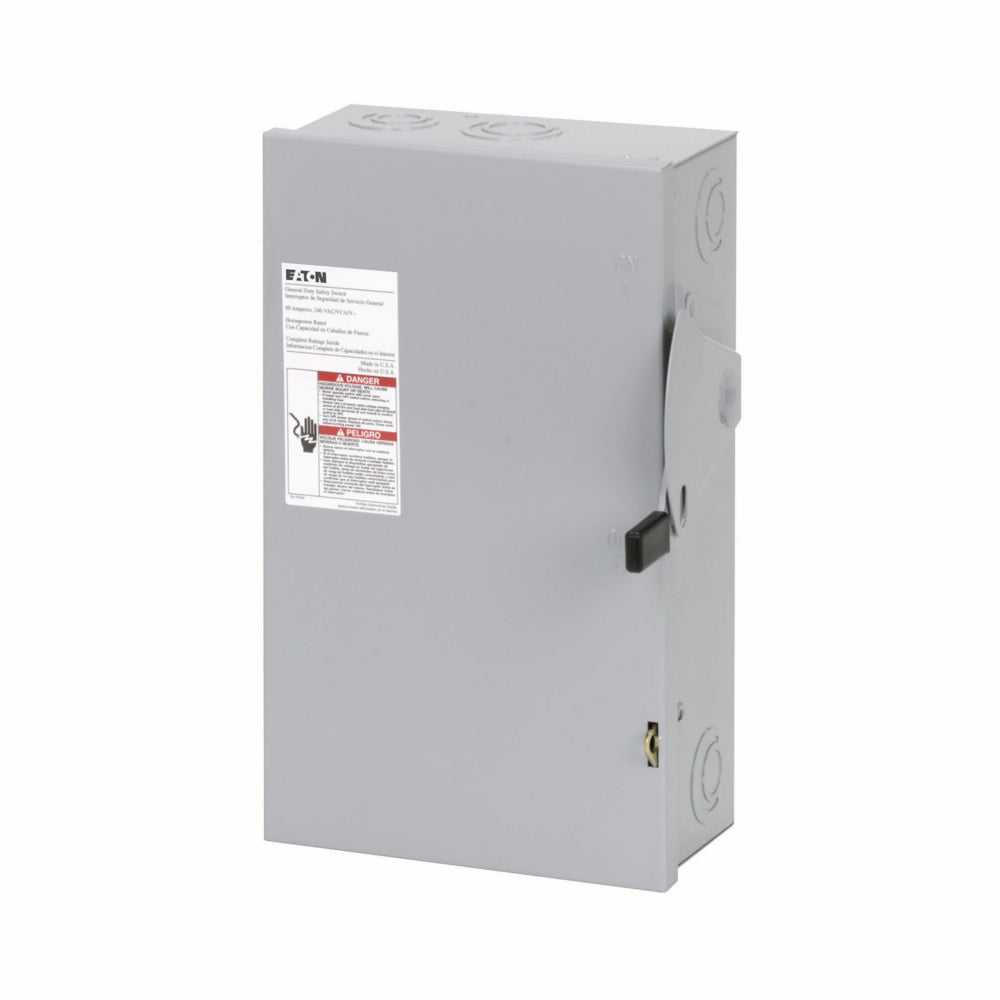

DG322UGB is a Cutler Hammer general duty non-fusible safety switch rated for 60 amps and 240 volts AC with 3 poles and NEMA 1 indoor enclosure.DG322UGB features a single-throw mechanism designed for three-phase, three-wire systems, providing reliable safety switching for general electrical applications. It supports up to 15 HP at 240 VAC and is built for indoor use with a NEMA 1 enclosure.
- Key Specifications
- Amperage: 60 Amps
- Voltage: 240 VAC
- Poles: 3
- Mounting Type: Indoor NEMA 1 Enclosure
- Interrupt Rating: General Duty
- Series/Frame: DG Series
- Trip Unit: Non-Fusible, Single Throw
- Phase: 3-Phase, 3-Wire
- Horsepower Rating: 15 HP at 240 VAC
- Manufacturer: Cutler Hammer (Eaton)
Specifications
- Part Number: DG322UGB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DG Series
- Type : DG
- Voltage : 240 AC
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
- Compatible Frames : TB
Product Data
- UPC : 078211314430
- GTIN : 00782113144306
- Country of Origin : United States
- Dimensions : 7.38 in x 14.19 in x 8.69 in (Length/Depth x Height x Width)
- Weight : 9
- Certification : NEMA KS-1, UL Listed, UL98
