Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DG223UGB

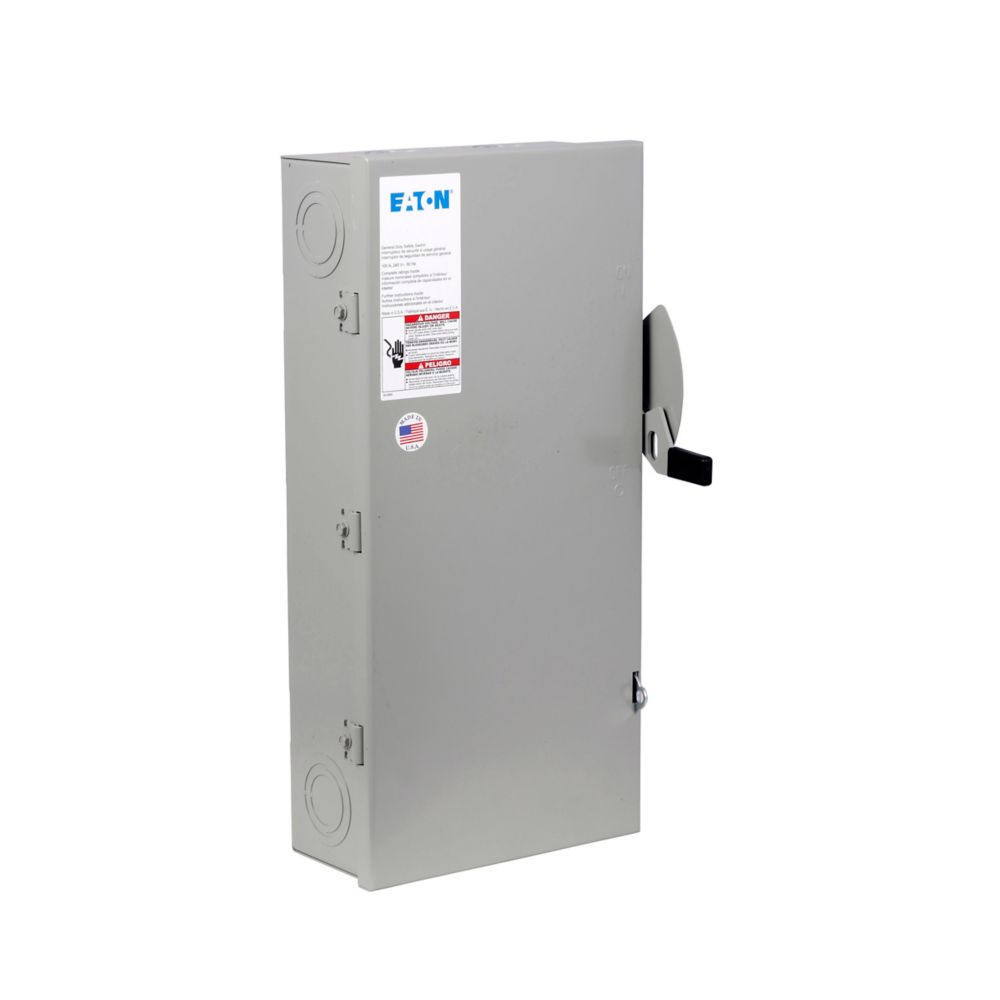

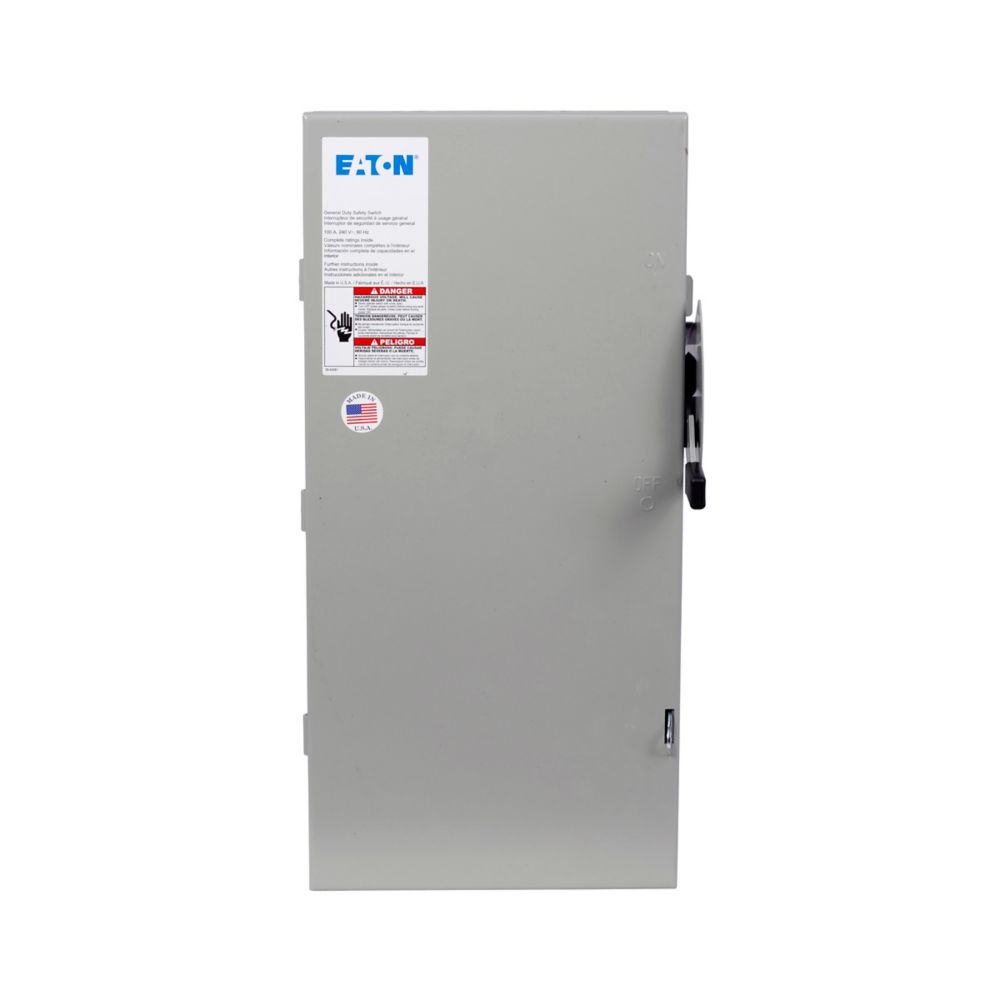

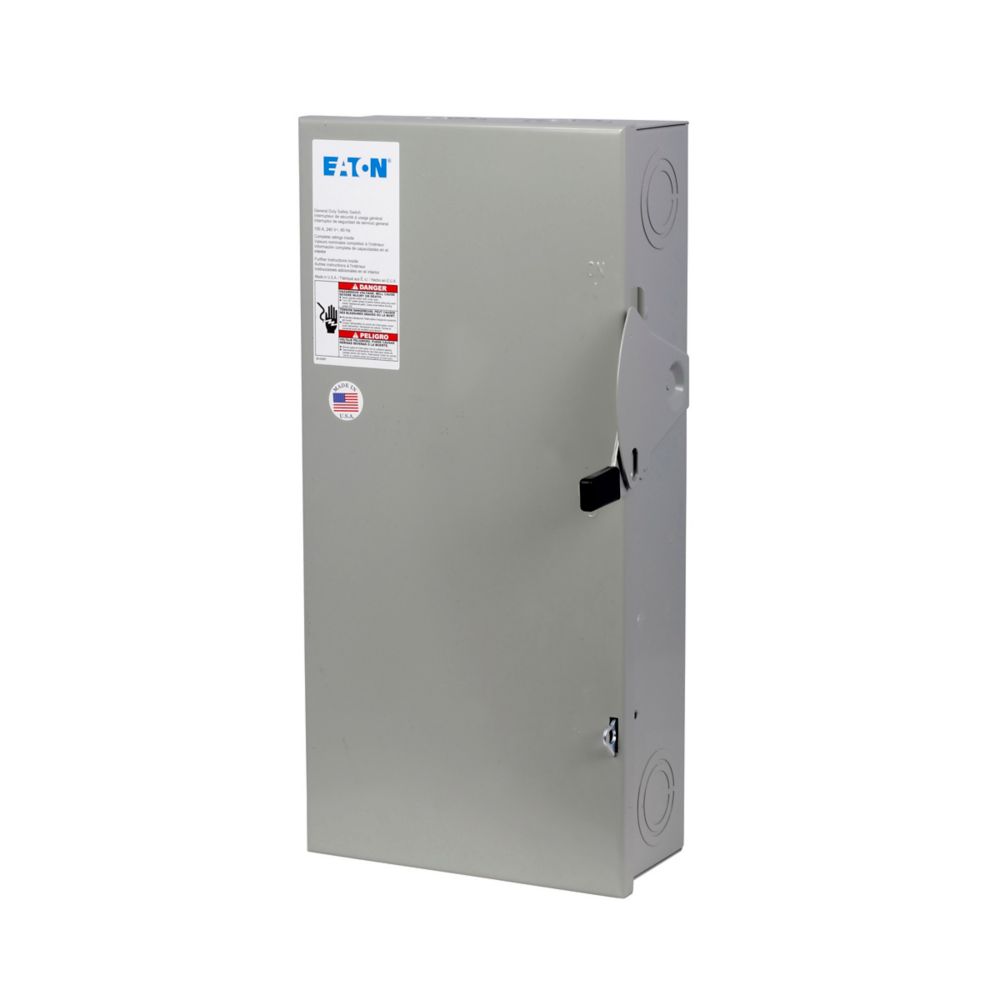

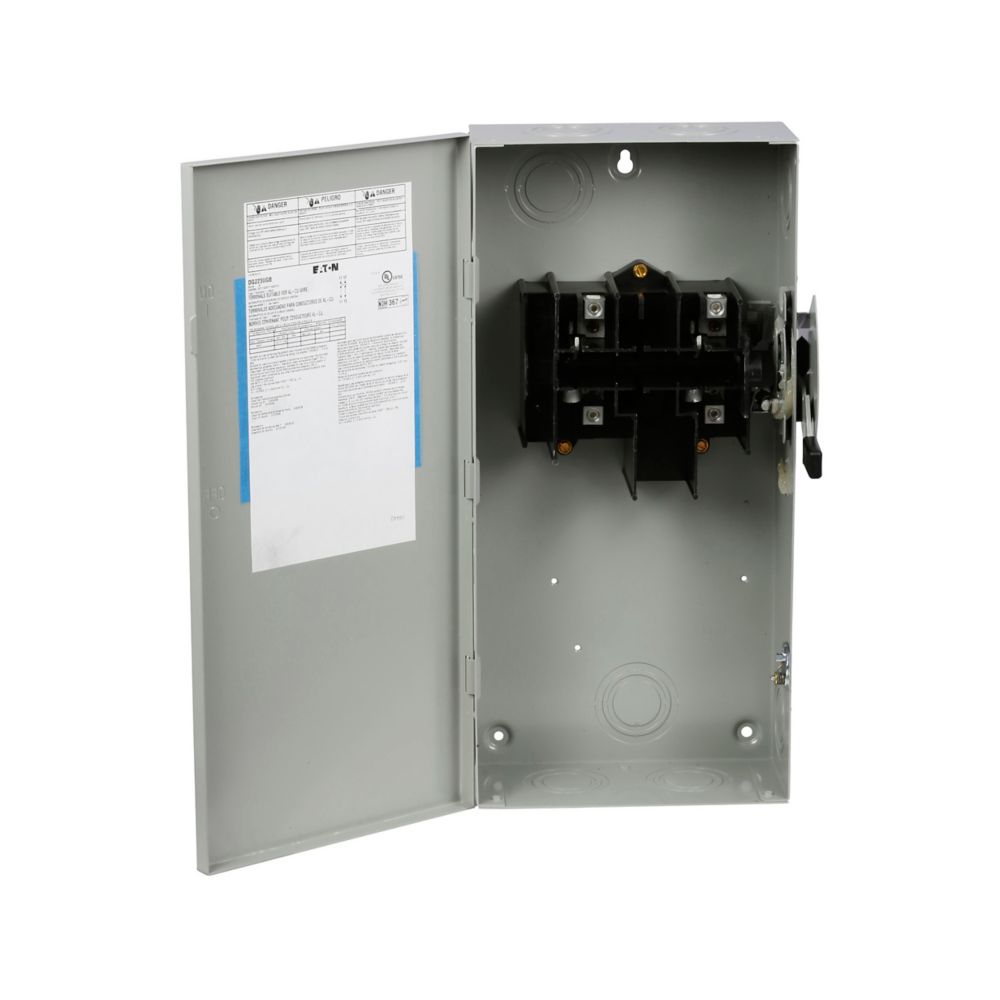

DG223UGB is a Cutler Hammer general duty non-fusible safety switch designed for reliable power disconnection in commercial and industrial applications.
This indoor safety switch features a robust painted steel NEMA 1 enclosure, single-throw operation, and is suitable for general duty use. It is not approved for service entrance unless a neutral kit is installed. The switch is UL Listed and complies with NEC 230.62 (C) for barrier requirements.
-
Key Specifications
- Amperage: 100A
- Voltage: 240V
- Poles: 2
- Mounting Type: Indoor
- Interrupt Rating: Not specified in available data
- Series/Frame: B Series
- Trip Unit: Not applicable (non-fusible)
- Certifications: UL Listed
- Enclosure: NEMA 1, painted steel
- Type: Non-fusible, single-throw
- Wire: 2
- Horsepower Rating: 15 HP
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: DG223UGB
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Switch
- Item Subcategory : Disconnect
- Family : DG Series
- Type : DG
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
- Compatible Frames : TED
Product Data
- UPC : 782114731147
- GTIN : 00785901481911
- Country of Origin : United States
- Dimensions : 7.38 in x 6.7 in x 9.13 in (Length/Depth x Height x Width)
- Weight : 12
- Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
