Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Disconnect
Description
DG223NGB

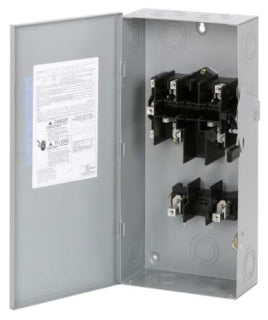

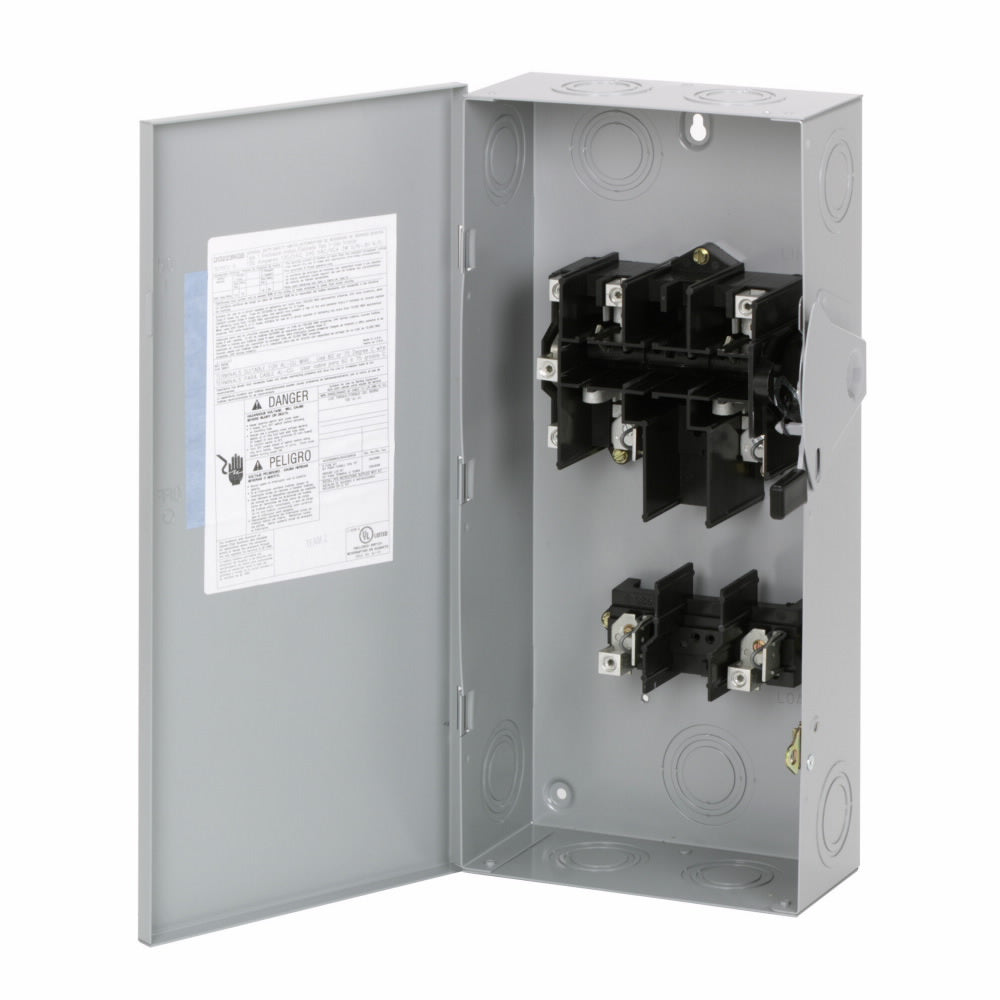

DG223NGB is a Cutler Hammer general duty cartridge fuse safety switch designed for reliable power distribution control.This switch features a 100 ampere rating, 240 volt voltage, and 2 poles with a 3-wire fusible design. It is constructed with a painted steel NEMA 1 enclosure and uses Class H cartridge fuses. The switch is suitable for general duty applications requiring a fusible safety switch with neutral.
- Key Specifications
- Amperage: 100 A
- Voltage: 240 VAC
- Poles: 2
- Mounting Type: Surface mount (NEMA 1 enclosure)
- Interrupt Rating: General duty
- Series/Frame: DG Series
- Trip Unit: Cartridge fuse (Class H)
- Neutral: Fusible with neutral
- Enclosure Material: Painted steel
- Wiring: 3-wire
- Certifications: Meets Eaton standards
- Part Number: DG223NGB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DG Series
- Type : DG
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : TB
- UPC : 782113144245
- GTIN : 00782113144245
- Country of Origin : United States
- Dimensions : 7.38 in x 18.81 in x 9.13 in (Length/Depth x Height x Width)
- Weight : 14
- Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
