Product Info
- Manufacturer:Eaton
- Sub-Category:Disconnect
Description
DG222UGB

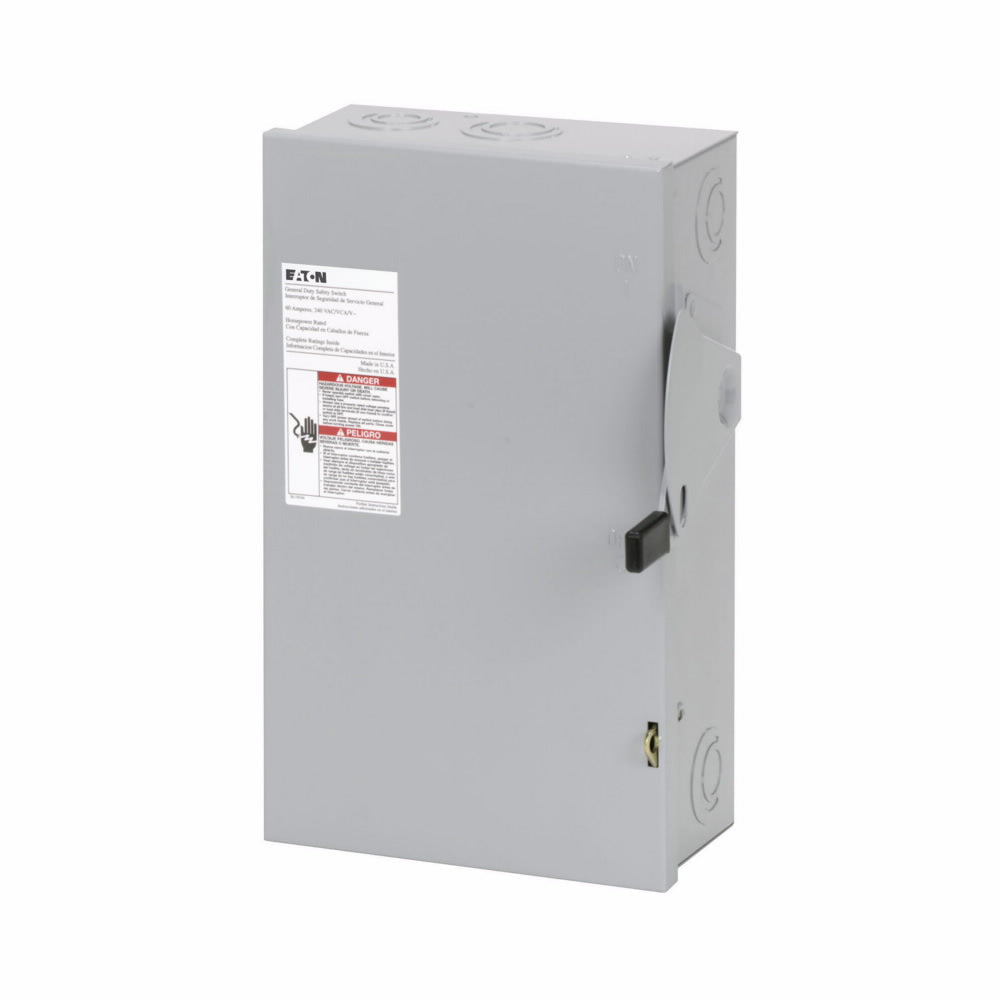

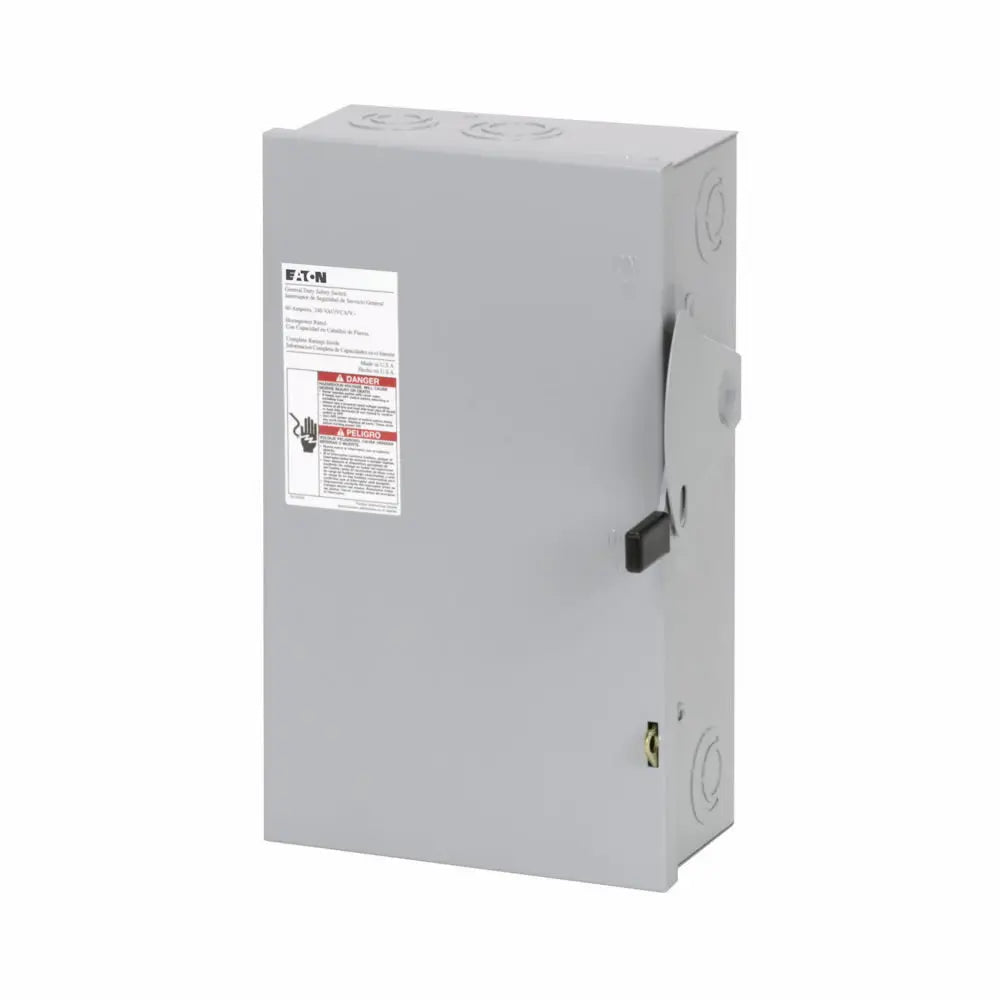

DG222UGB is a general duty non-fusible safety switch from Eaton Cutler Hammer designed for indoor use.DG222UGB features a 60 ampere current rating, 240 volt AC voltage, and 2 poles with double-pole single-throw (DPST) contacts. It has a NEMA 1 rated painted steel enclosure suitable for surface mounting. This switch supports up to 10 horsepower and has an interrupt rating of 100kA at 240V.
- Key Specifications
- Amperage: 60 A
- Voltage: 240 VAC
- Poles: 2 (DPST)
- Mounting Type: Surface
- Interrupt Rating: 100kA @ 240V
- Series/Frame: DG Series
- Trip Unit: Non-Fusible
- Enclosure: NEMA 1, Painted Steel
- Horsepower Rating: 10 HP
- Phase: Single Phase
- Wires: 2 Wire
- Certifications: UL Listed
Specifications
- Part Number: DG222UGB
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DG Series
- Type : DG
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
- Compatible Frames : SKLA
Product Data
- UPC : 782114731130
- GTIN : 00783643151673
- Country of Origin : United States
- Dimensions : 7.38 in x 14.19 in x 8.69 in (Length/Depth x Height x Width)
- Weight : 9
- Certification : UL Listed
