Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

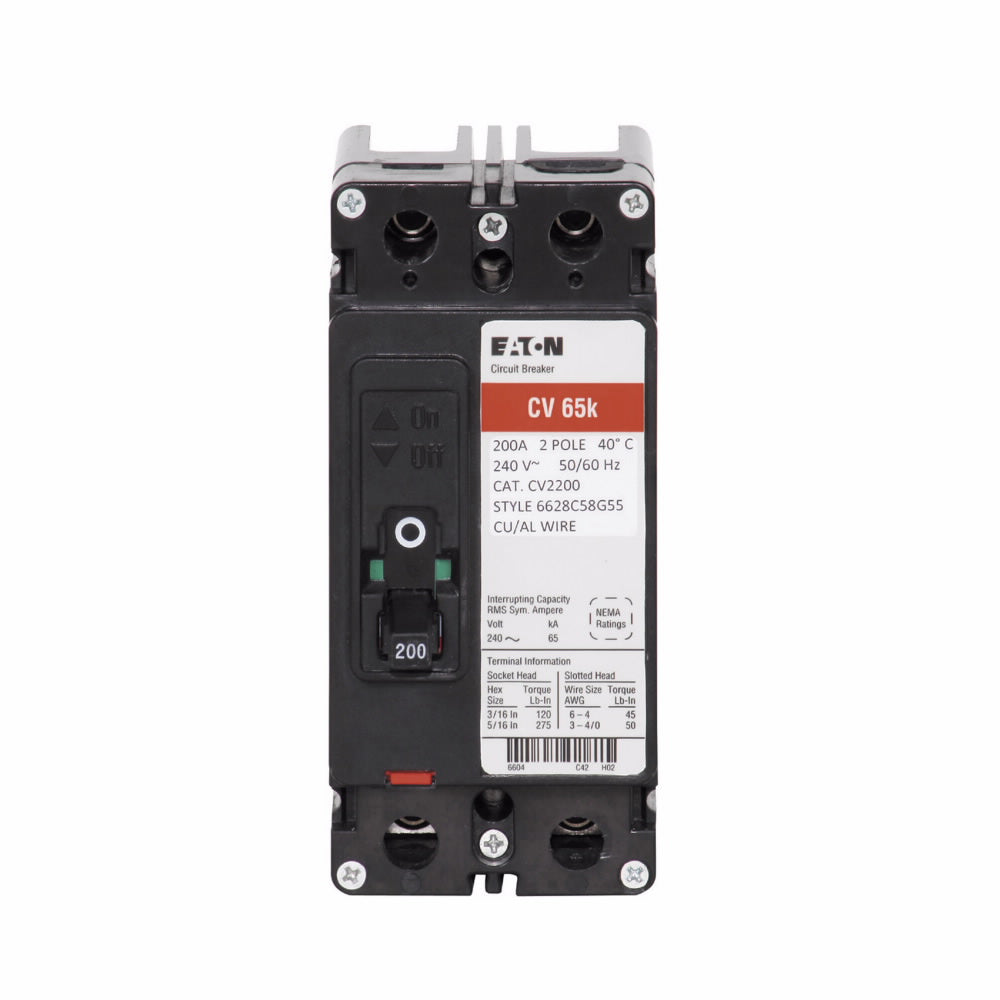

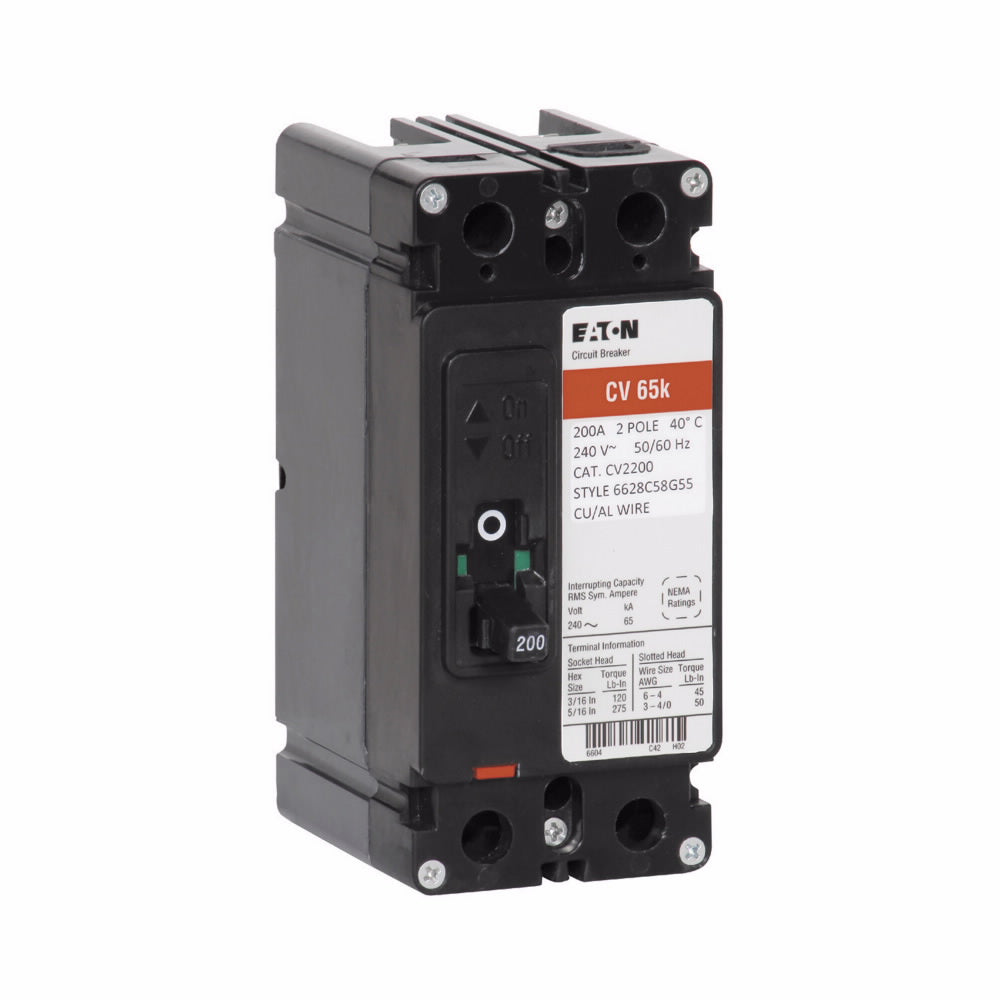

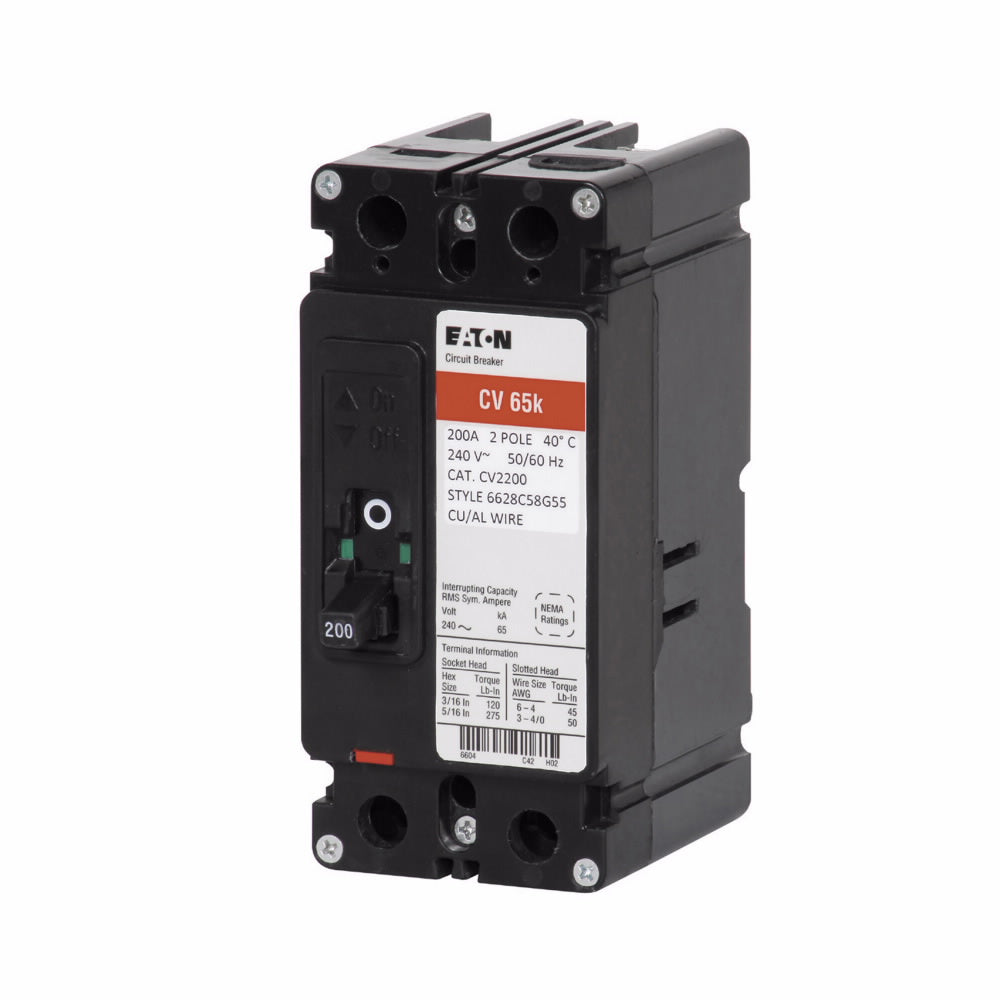

CVS2200XMM
CVS2200XMM is a Cutler Hammer molded case circuit breaker designed for 200 amp, 240 volt applications with a two-pole configuration.This Eaton Type CV circuit breaker features a 42 kA interrupt rating, bolt-on mounting, and supports conductor sizes from 6 to 4/0 Al/Cu with a maximum load of 4/0 kcmil. It includes a mounting kit and is UL 489 certified, suitable for reliable circuit protection in commercial and industrial electrical systems.
- Amperage: 200 Amp
- Voltage: 240 VAC
- Poles: 2
- Interrupt Rating: 42 kAIC
- Frame Type: CV
- Mounting Type: Bolt On
- Conductor Range: 6 - 4/0 Al/Cu
- Maximum Load: 4/0 kcmil
- Includes Mounting Kit
- Certifications: UL 489
Specifications
- Part Number: CVS2200XMM
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CVS Series
- Type : CVS
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 25kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786685705927
- GTIN : 00786685705927
- Country of Origin : Dominican Republic
- Dimensions : 7.5 in x 5 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 2.75
- Certification : CSA Std. C22.2 No. 5,UL 489
- Wire Size : 6 to 4/0 AWG
