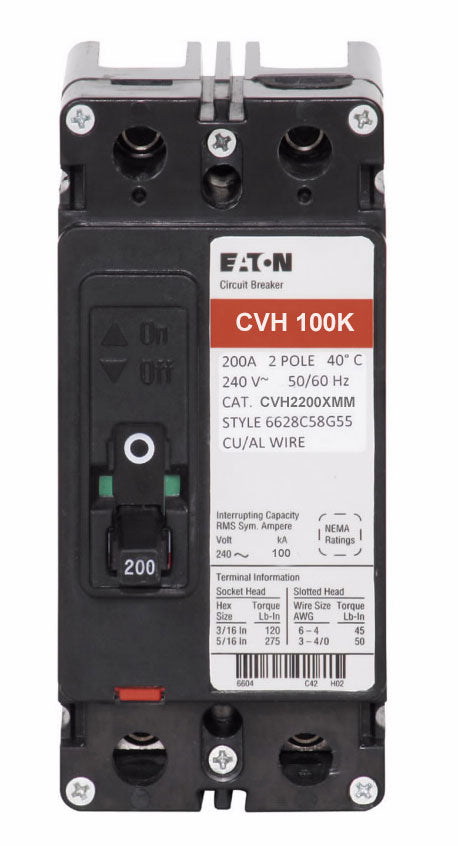

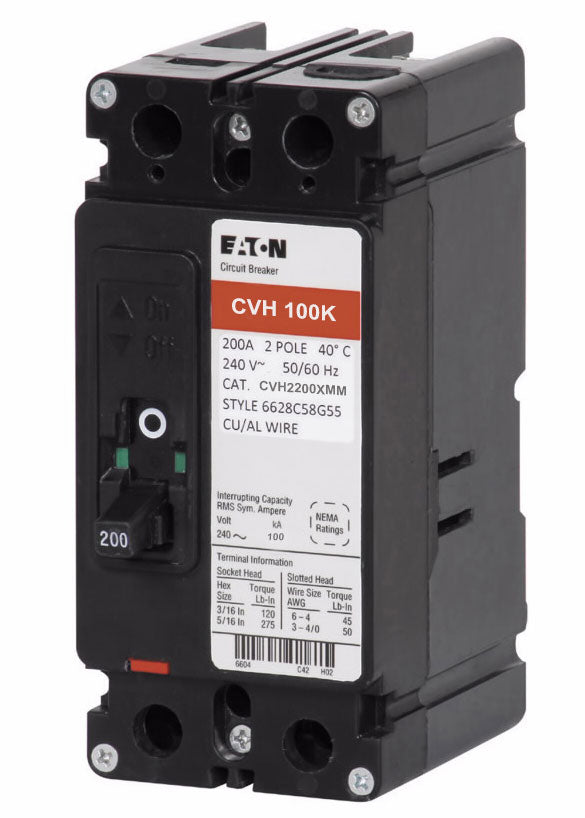

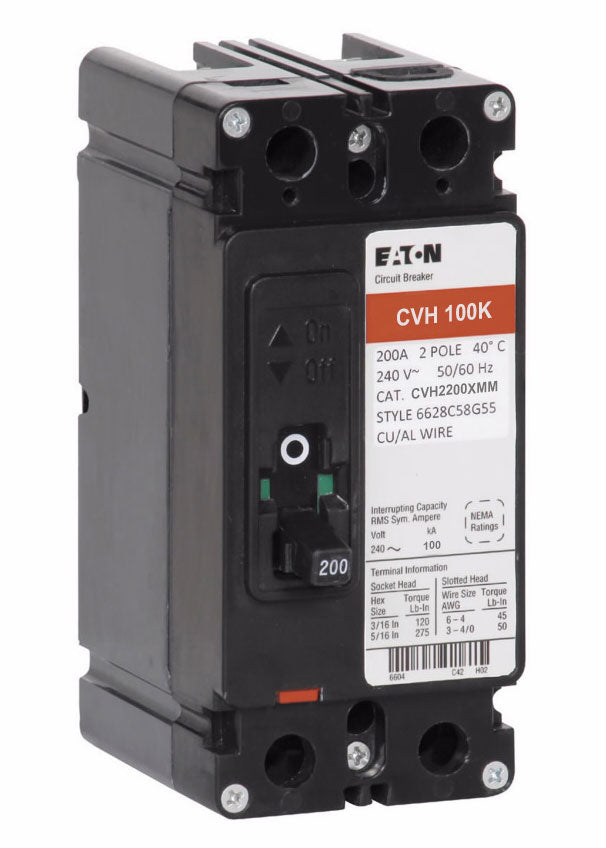

CVH2200XMM - Cutler Hammer 200A 2-Pole 240V Molded Case Circuit Breaker 100kA Interrupt Rating

CVH2200XMM

CVH2200XMM is a Cutler Hammer 200 amp, 2-pole molded case circuit breaker designed for 240 Volt applications with a 100 kA interrupt rating.This Type CV molded case circuit breaker features thermal magnetic trip units and supports wire sizes up to 4/0 kcmil. It includes a mounting kit and is certified to CSA Std. C22.2 No. 5 and UL 489 standards. The breaker is suitable for residential and light commercial use, with a limited lifetime warranty.

• Amperage Rating: 200A
• Voltage Rating: 240 VAC
• Number of Poles: 2
• Interrupt Rating: 100 kAIC
• Trip Unit: Thermal Magnetic
• Wire Size Capacity: #6 to 4/0 AWG Cu/Al
• Terminals: #4/0 kcmil maximum load
• Mounting: Includes mounting kit
• Series/Frame: Type CV
• Certifications: CSA Std. C22.2 No. 5, UL 489
• Dimensions: 5" H x 7.5" L x 3.5" W
• Weight: 2.75 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CVH2200XMM
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CVH Series
• Type : CVH
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685707044
• GTIN : 00786685707044
• Country of Origin : Dominican Republic
• Dimensions : 7.5 in x 5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 2.75
• Certification : CSA Std. C22.2 No. 5,UL 489
