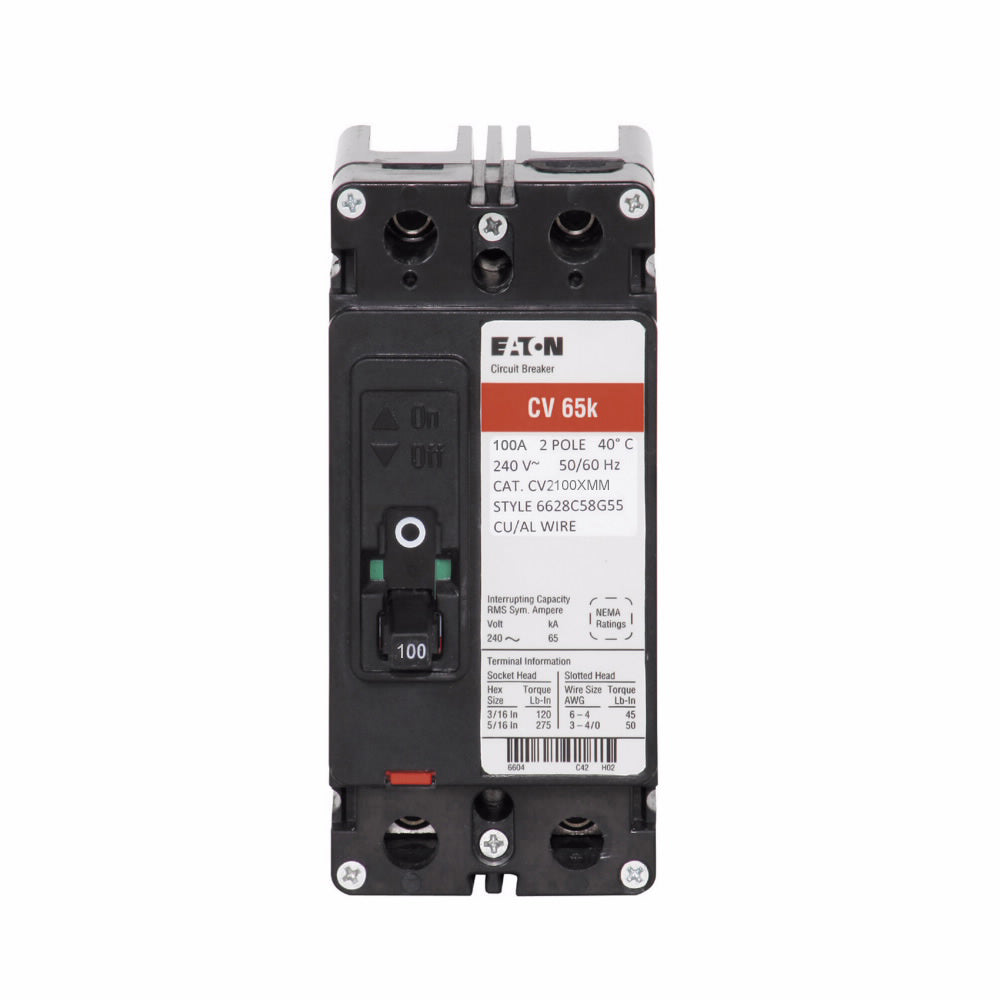

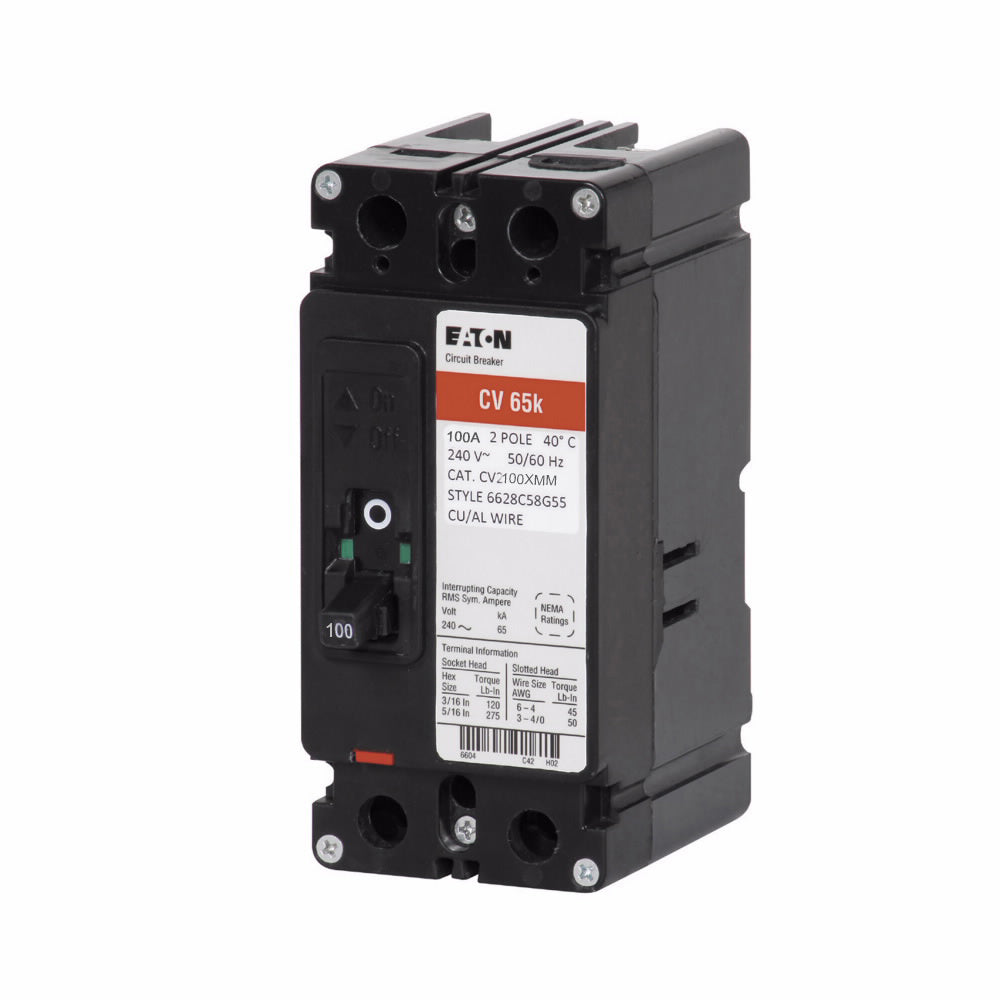

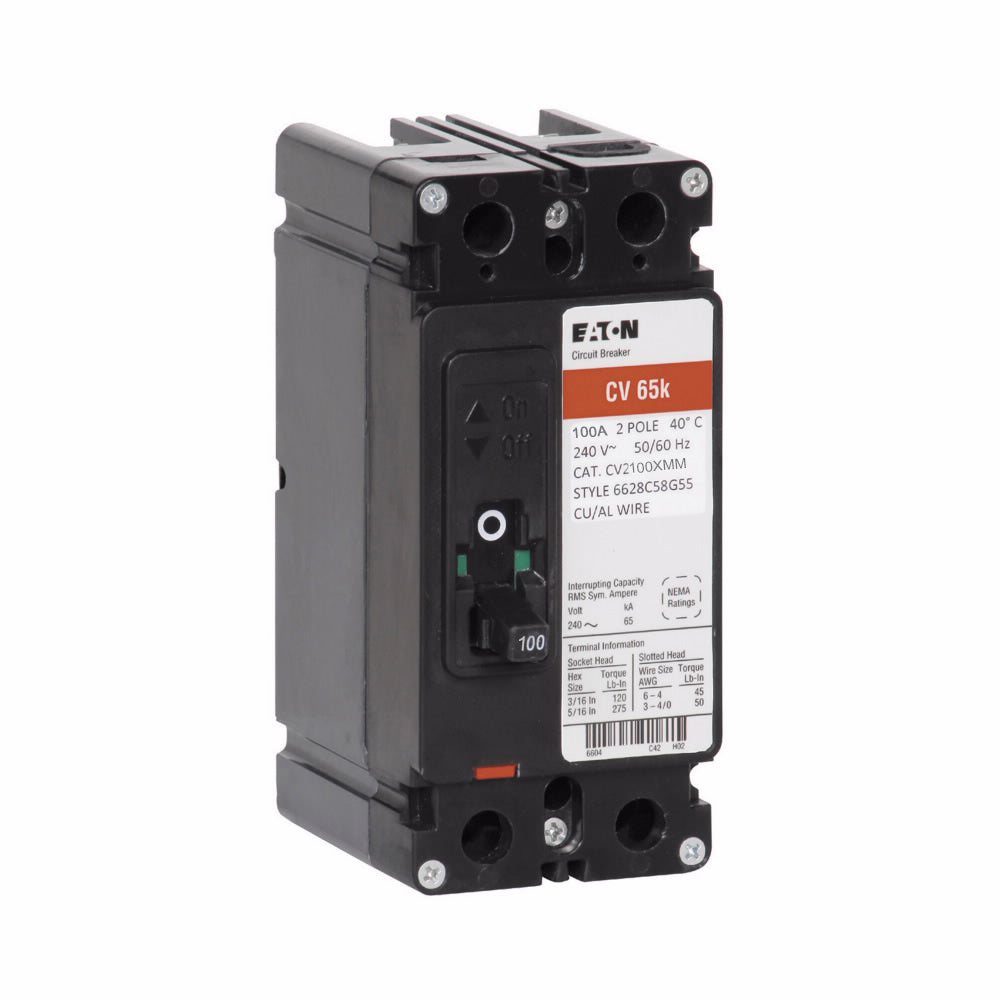

CVH2100XMM - Cutler Hammer 100A 240V 2-Pole Molded Case Circuit Breaker CV Frame Bolt-On

CVH2100XMM

CVH2100XMM is a Cutler Hammer molded case circuit breaker designed for 100 amp, 240 volt applications with a 2-pole configuration and CV frame.This circuit breaker features a bolt-on mounting type, thermal magnetic trip unit, and a 100 kA interrupt rating at 240 VAC. It supports wire sizes from #6 to 4/0 AWG aluminum or copper and includes a mounting kit. The breaker is UL 489 and CSA certified, suitable for single-phase electrical systems.

• Amperage: 100 A
• Voltage: 240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 100 kAIC
• Frame/Series: CV
• Trip Unit: Thermal Magnetic
• Wire Size Range: #6 - 4/0 AWG Al/Cu
• Certifications: UL 489, CSA Std. C22.2 No. 5
• Includes mounting kit
• Phase: Single-phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CVH2100XMM
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CVH Series
• Type : CVH
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685707006
• GTIN : 00786685707006
• Country of Origin : Dominican Republic
• Dimensions : 7.5 in x 5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 2.75
• Certification : UL 489,CSA Std. C22.2 No. 5
