CV2100XMM - Cutler Hammer 100A 240V 2 Pole Molded Case Circuit Breaker CV Series

CV2100XMM

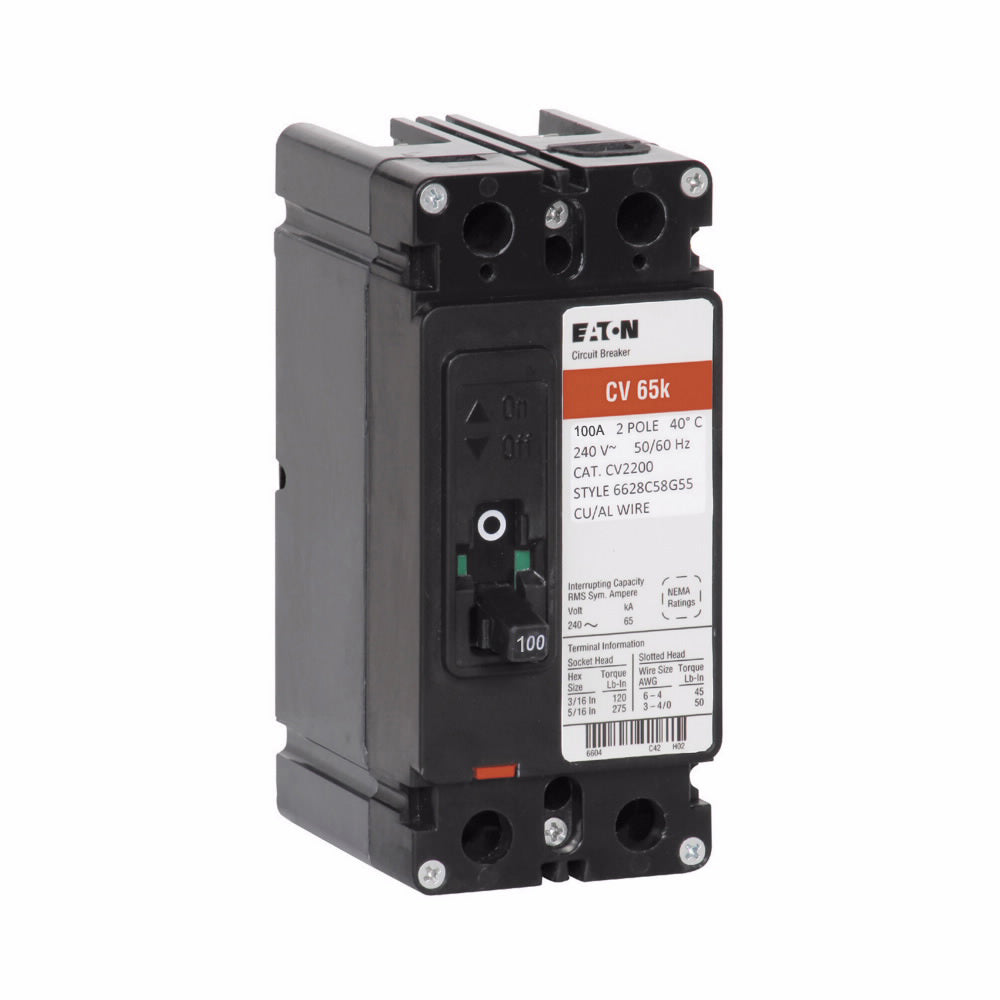

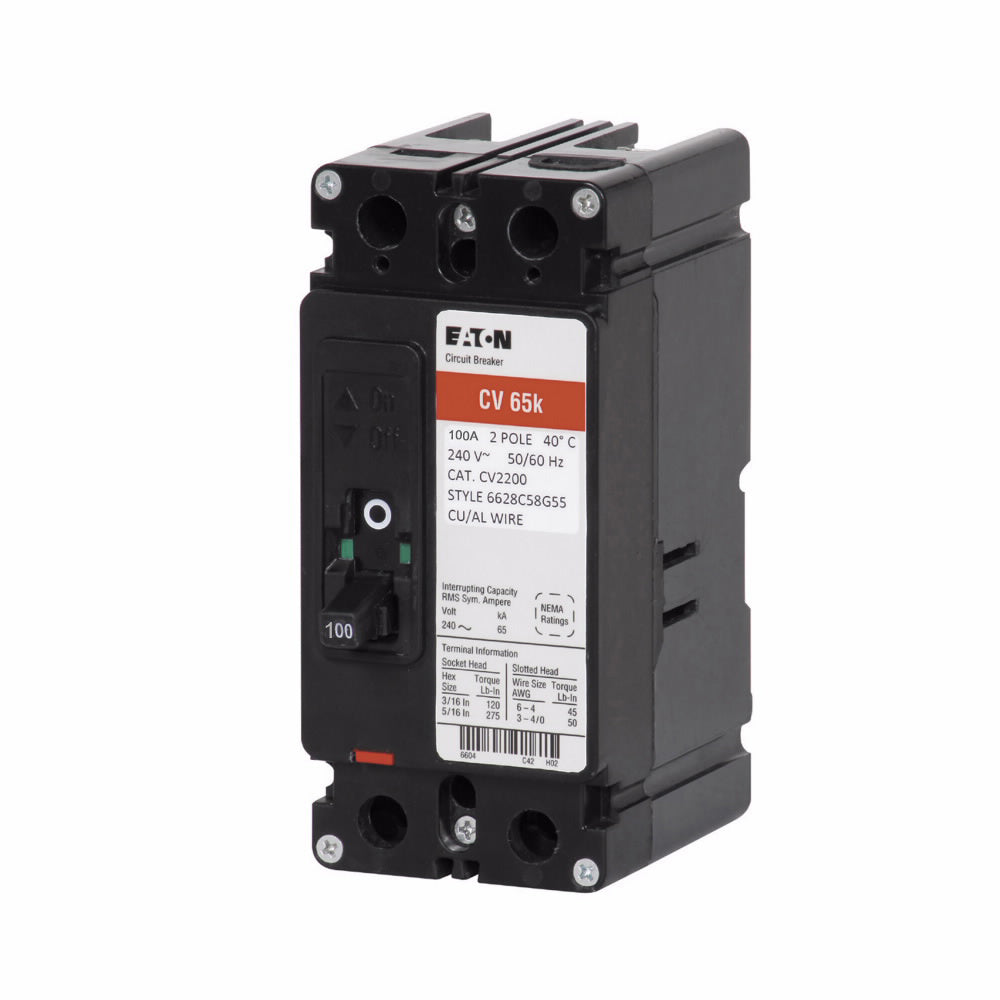

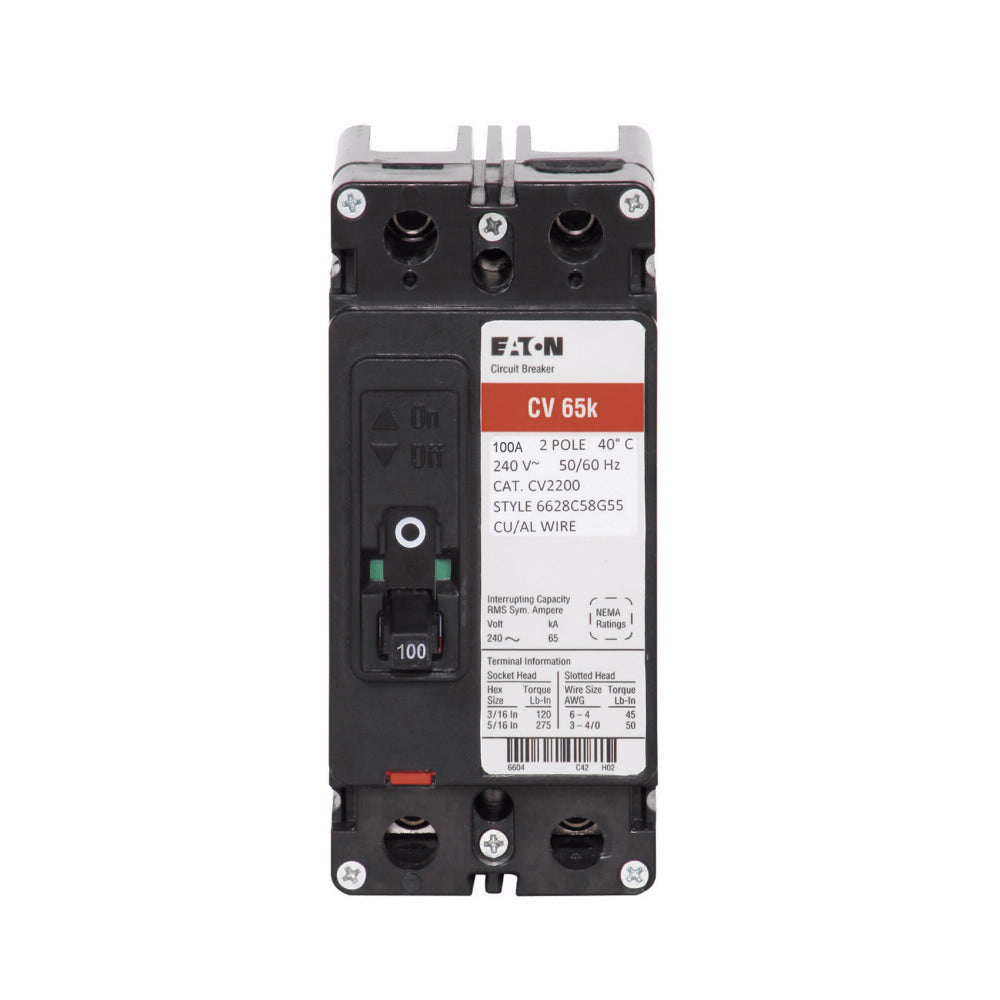

CV2100XMM is a Cutler Hammer molded case circuit breaker designed for reliable protection in electrical systems.

This 2-pole circuit breaker is rated for 100 amps and 240 volts AC, featuring a thermal magnetic trip unit for long-time and instantaneous protection. It has a 65kA interrupt rating at 240V and supports bolt-on mounting. The breaker is part of the CV series and includes a mounting kit. It supports conductor sizes from #6 to 4/0 Al/Cu with a maximum load of 4/0 kcmil. Dimensions are 5.0" x 3.5" x 7.5" and it weighs approximately 2.75 lbs.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Series/Frame: CV
• Amperage: 100 A
• Voltage: 240 V AC
• Poles: 2
• Interrupt Rating: 65 kAIC @ 240 V
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Mounting Type: Bolt On
• Conductor Range: #6 - 4/0 Al/Cu
• Maximum Load: 4/0 kcmil
• Dimensions (HxWxD): 5.0" x 3.5" x 7.5"
• Weight: 2.75 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CV2100XMM
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CV Series
• Type : CV
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685706443
• GTIN : 00786685706443
• Country of Origin : Dominican Republic
• Dimensions : 7.5 in x 5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 2.75
• Certification : CSA Std. C22.2 No. 5,UL 489
