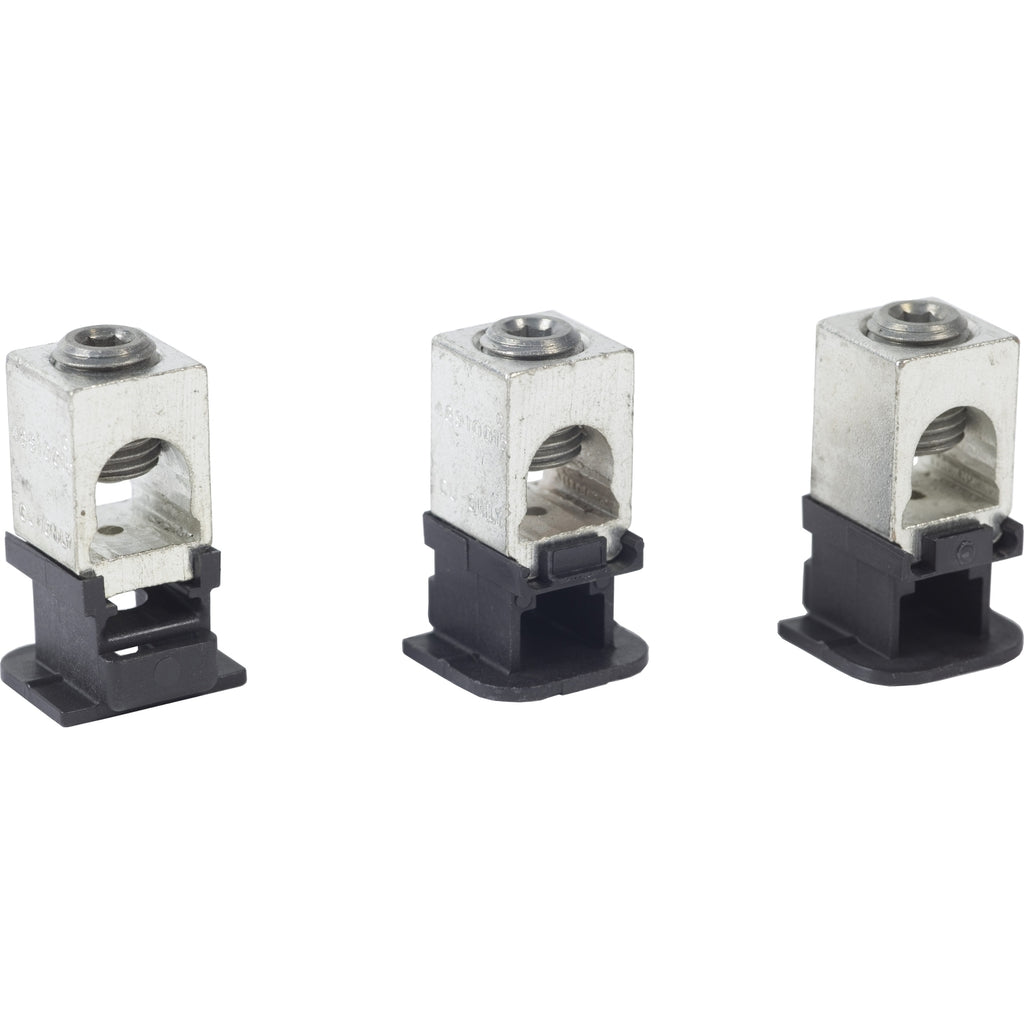

CU150HD - Square D Mechanical Lug Kit for 15 to 150A HD/HG/HJ/HL Frame Circuit Breakers

CU150HD

CU150HD is a Square D mechanical lug kit designed for use with PowerPact HD, HG, HJ, and HL frame circuit breakers rated from 15 to 150 amps.CU150HD supports copper conductors ranging from 14 AWG to 2/0 AWG and is compatible with single-phase circuit breakers in the specified frame series. This lug kit facilitates secure copper conductor connections for molded case circuit breakers within the 50 to 150 amp range.

• Manufacturer: Square D
• Compatible Frame Series: HD, HG, HJ, HL
• Amperage Range: 15 to 150 Amps
• Conductor Type: Copper
• Conductor Size Range: 14 AWG to 2/0 AWG
• Phase: Single Phase
• Application: Mechanical Lug Kit for Circuit Breakers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CU150HD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : Powerpact
• Type : CU
• Voltage : 600 AC
• MCM Size : 133
• Barrels : 1
• Metal Type : Copper
• Compatible Frames : HDA,HDF,HDL,HDM,HDP,HDN,HDD,HDS,HGA,HGF,HGL,HGM,HGP,HGN,HGD,HGS,HJA,HJF,HJL,HJM,HJP,HJN,HJD,HJS,HLA,HLF,HLL,HLM,HLP,HLN,HLD,HLS,HDK,HGK,HJK,HLK

Product Data

• UPC : 78590158260
• GTIN : 00785901582601
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.268
• Certification : CSA - UL
• Wire Size : AWG 14...AWG 2/0 copper
