Product Info
- Manufacturer:General Electric
- Sub-Category:Contactor
Description
CR305D002

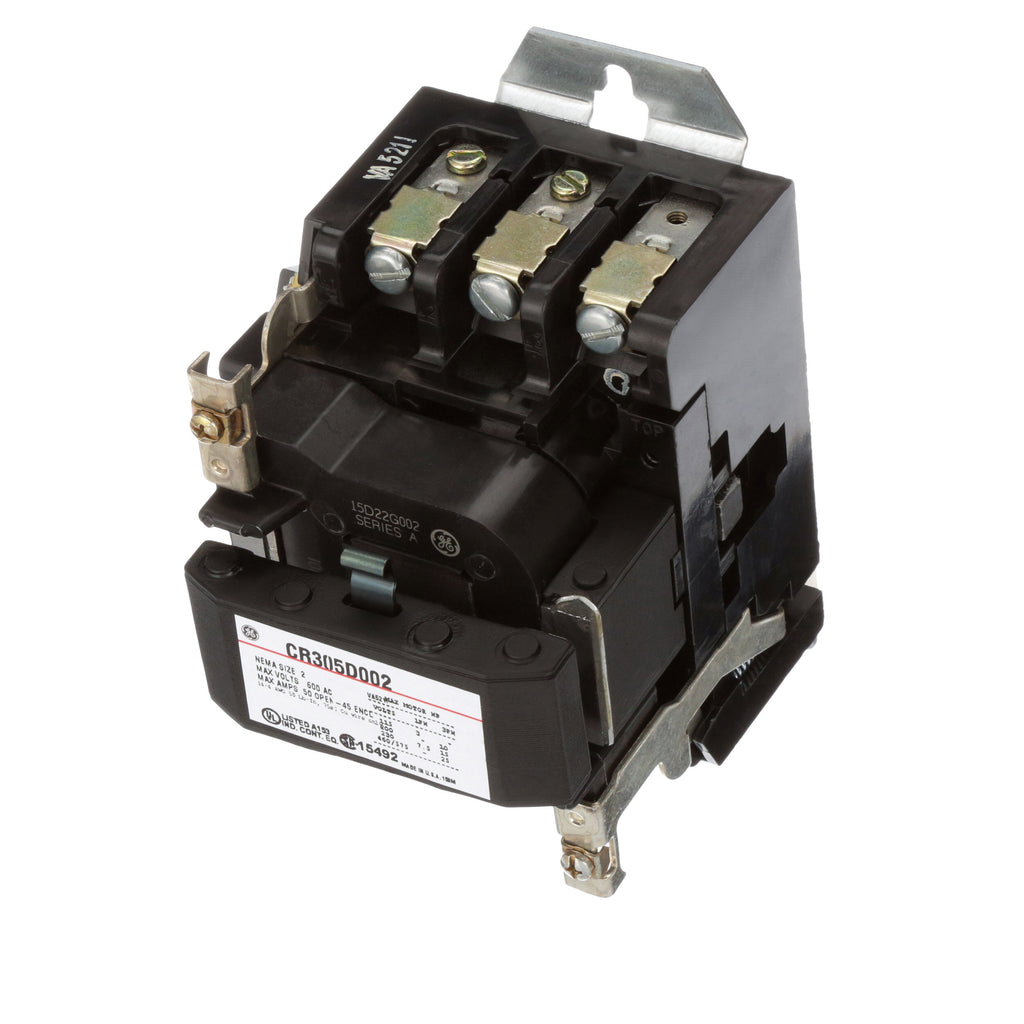

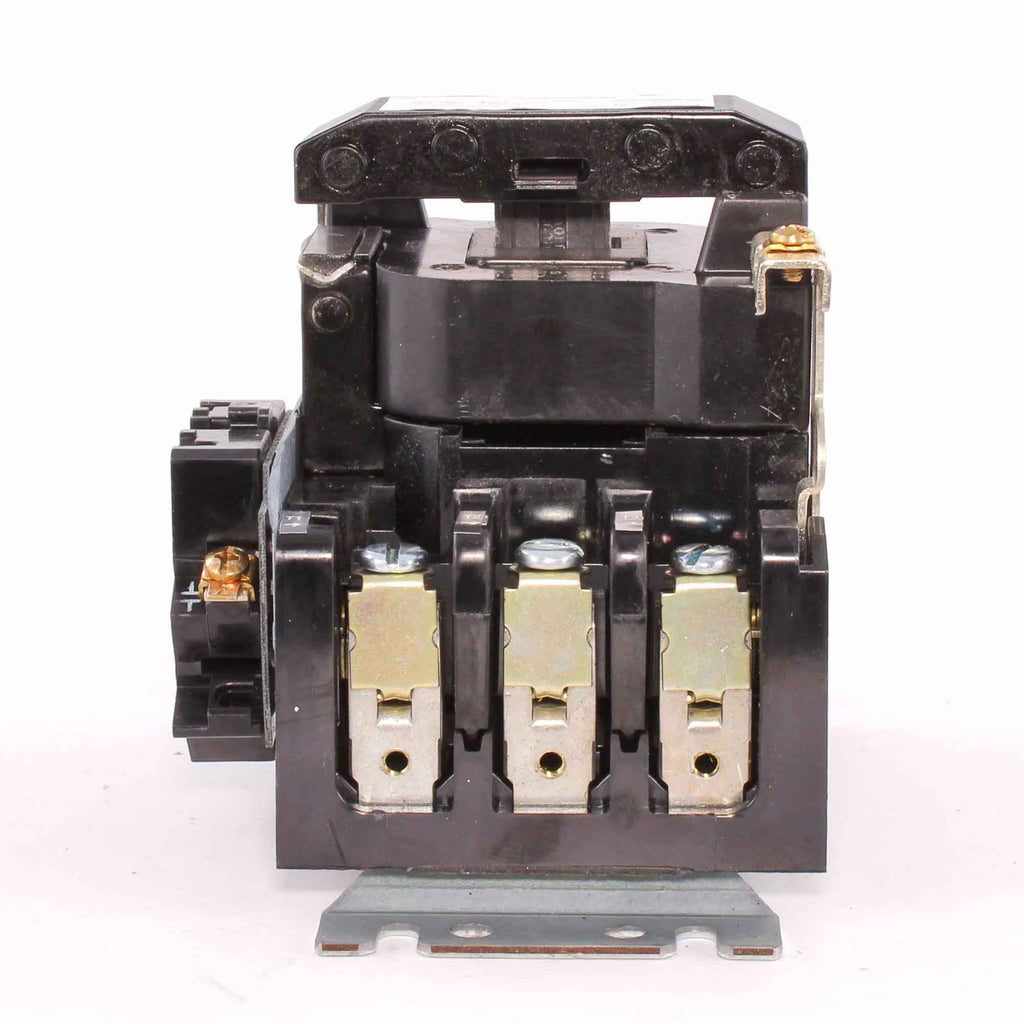

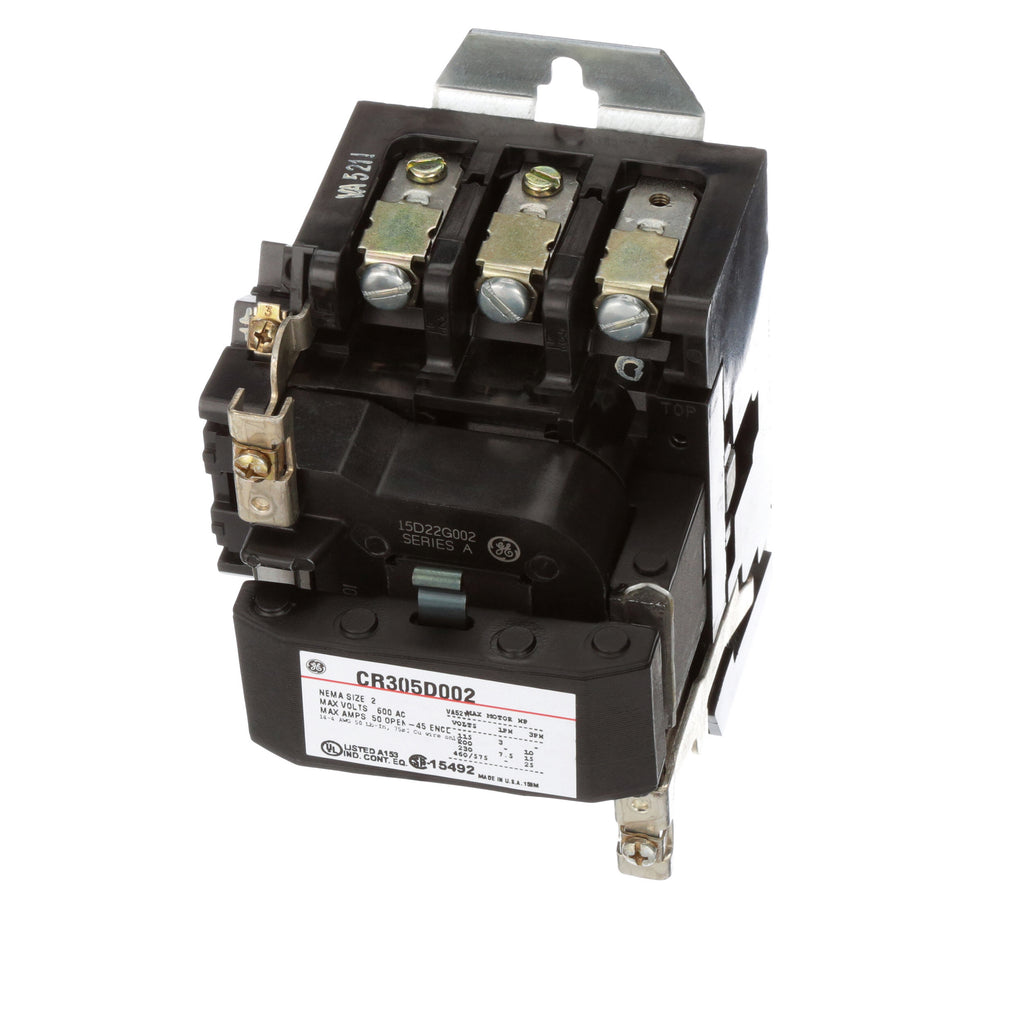

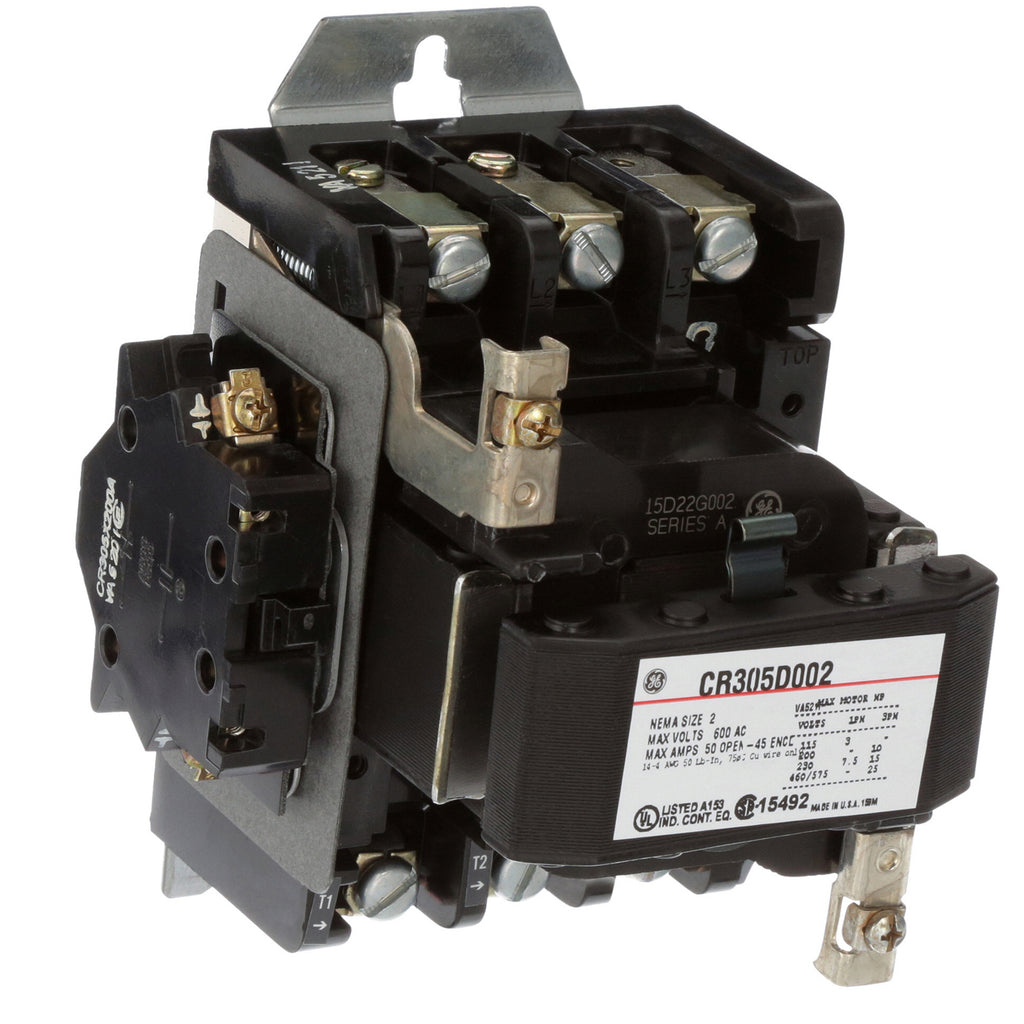

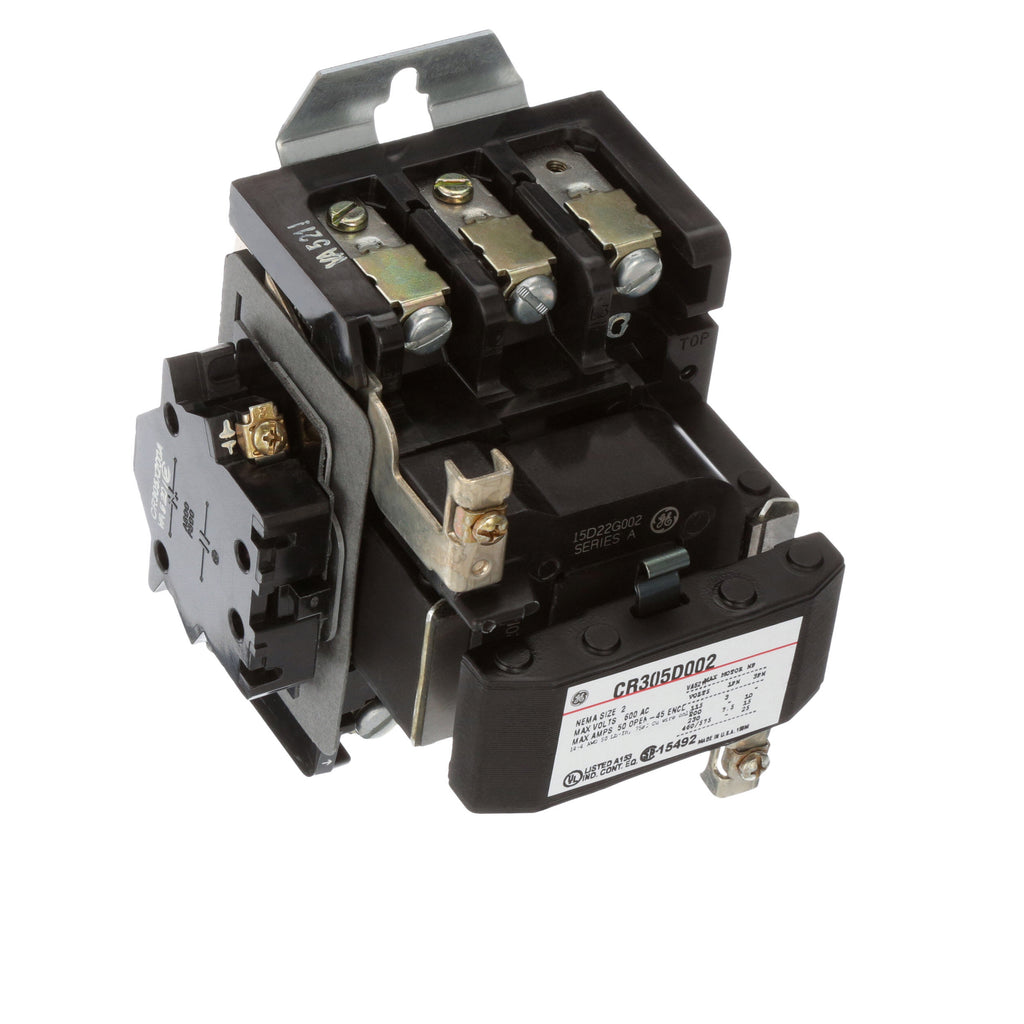

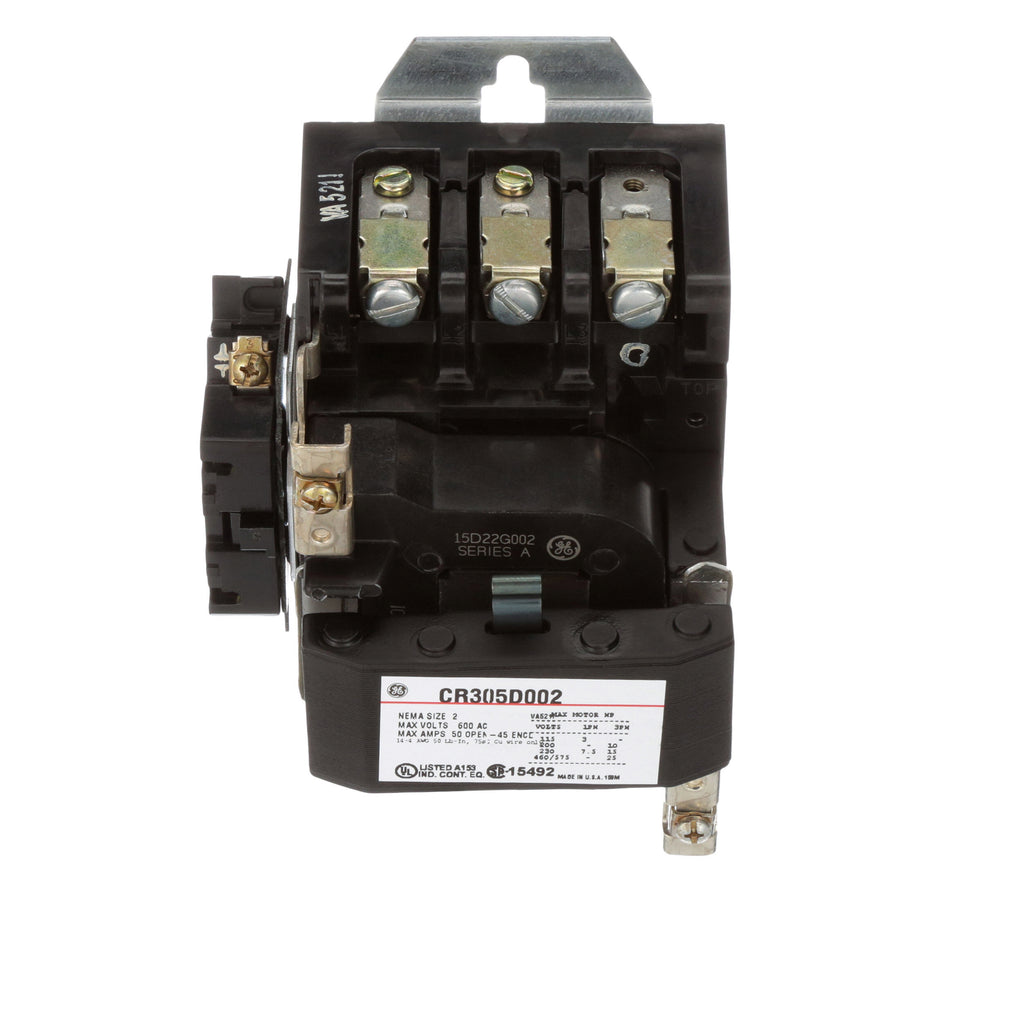

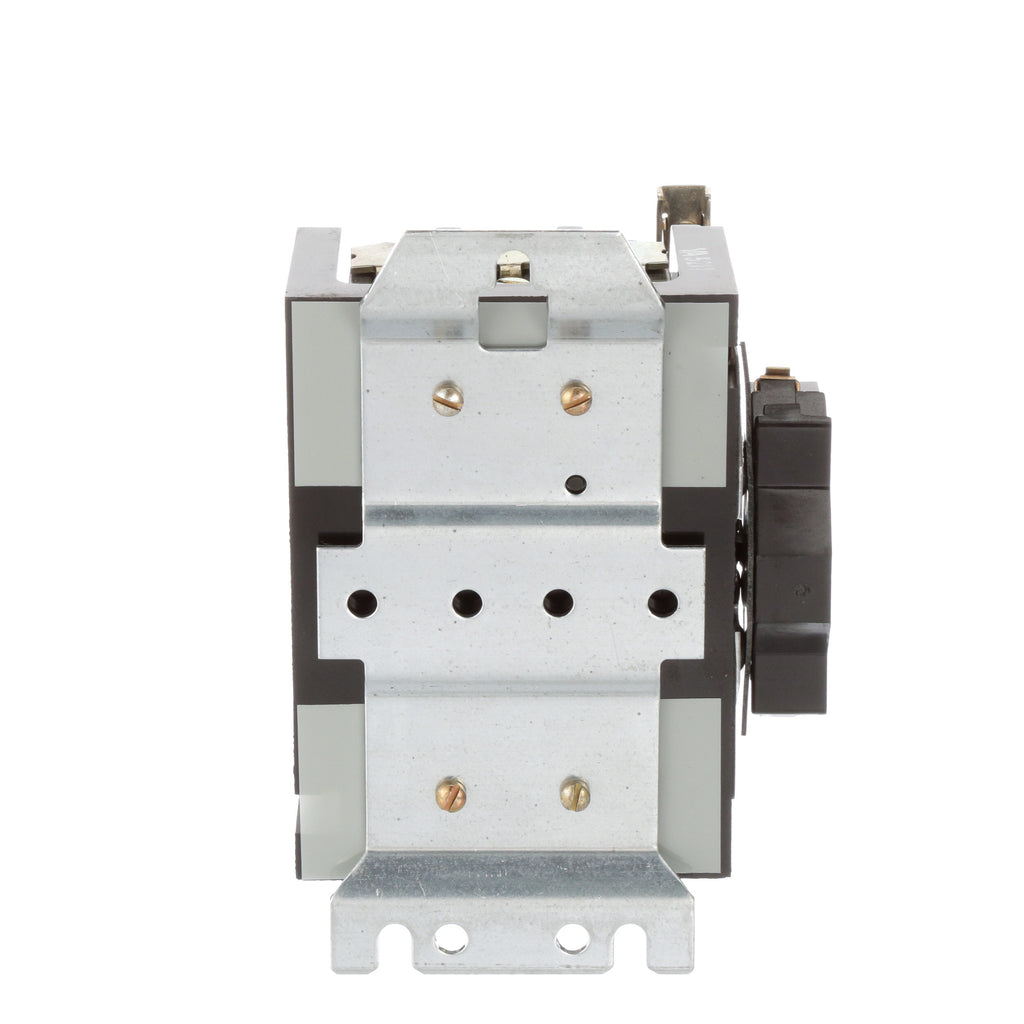

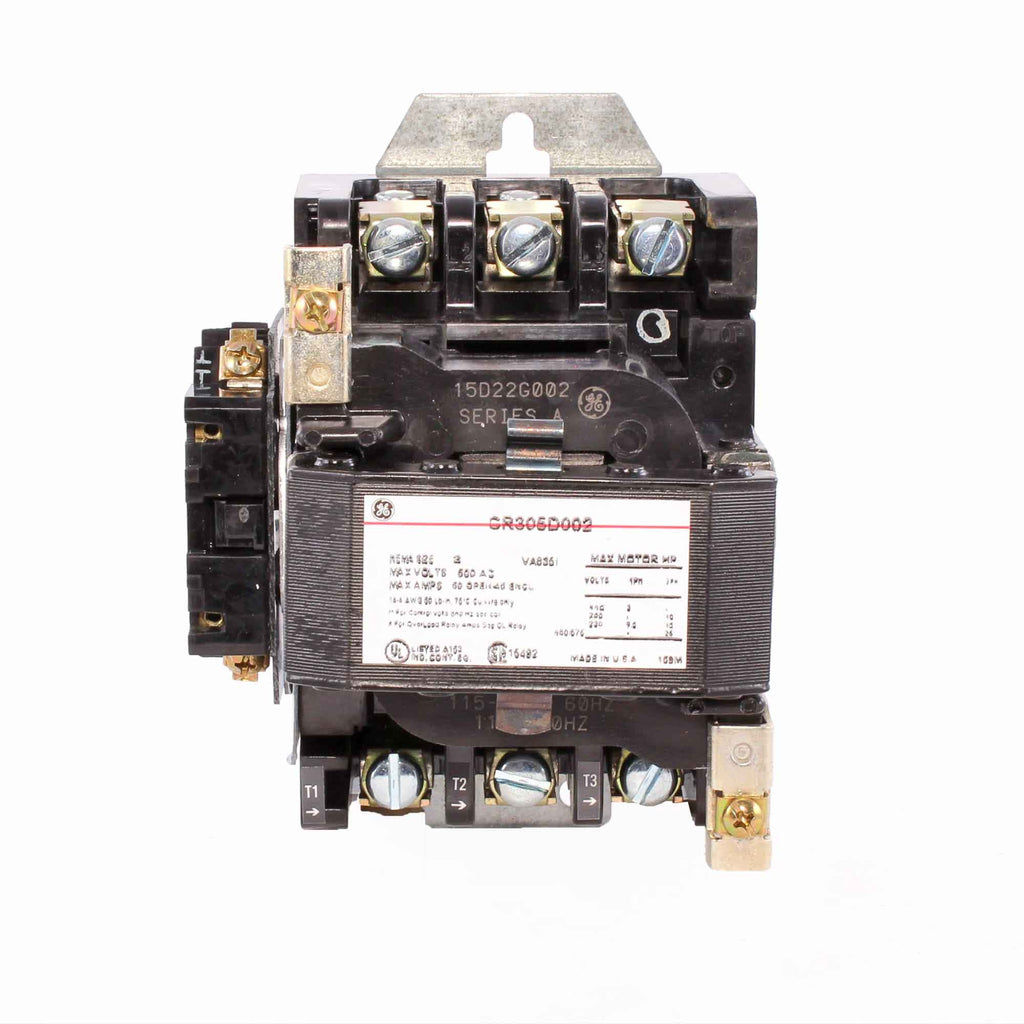

CR305D002 is a General Electric 3 pole, 3 phase motor control contactor designed for 600V applications with a 50 amp rating and 115-120V coil voltage.This NEMA Size 2 contactor features full voltage, non-reversing operation suitable for 300-Line motor control systems. It supports 3 phase power at 600 volts and 50 amperes with vertical mounting and open construction. The contactor includes one normally open auxiliary contact and pressure terminals for line and load connections, meeting NEMA construction standards.
- Key Specifications
- Amperage: 50A
- Voltage: 600V AC
- Poles: 3
- Coil Voltage: 115-120V AC, 60 Hz
- Phase: 3 Phase
- Mounting Type: Vertical
- Size: NEMA Size 2
- Construction: Open
- Auxiliary Contact: 1 Normally Open (1NO)
- Series: 300-Line
- Type: Full Voltage, Non-Reversing
Specifications
- Part Number: CR305D002
- Manufacturer : General Electric
- Brand : General Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : 300-Line
- Type : CR305D
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
- Aux Contacts : 1NO
- Coil Voltage Maximum : 120
- Full Load Amps : 45 A
- Coil Voltage Minimum : 115
Product Data
- UPC : 783166348468
- GTIN : 00783166348468
- Country of Origin : United States
- Dimensions : 5.5 in x 6.62 in
- Weight : 8
- Certification : cULus, UL Listed, WEEE B2C/B2B
