2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CQD370

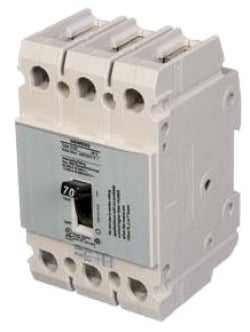

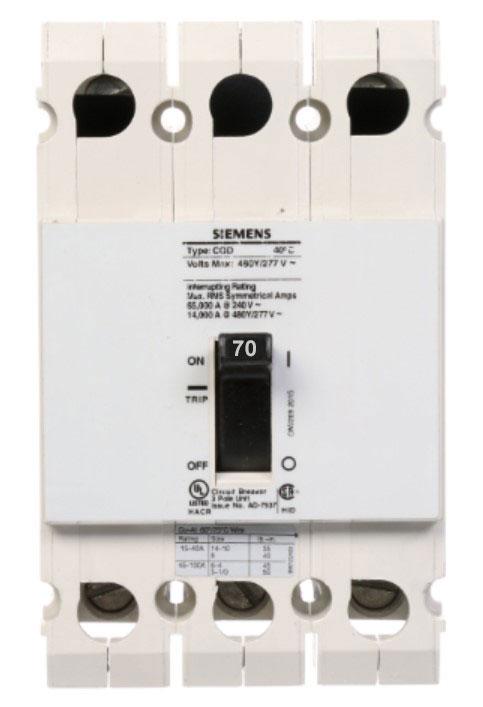

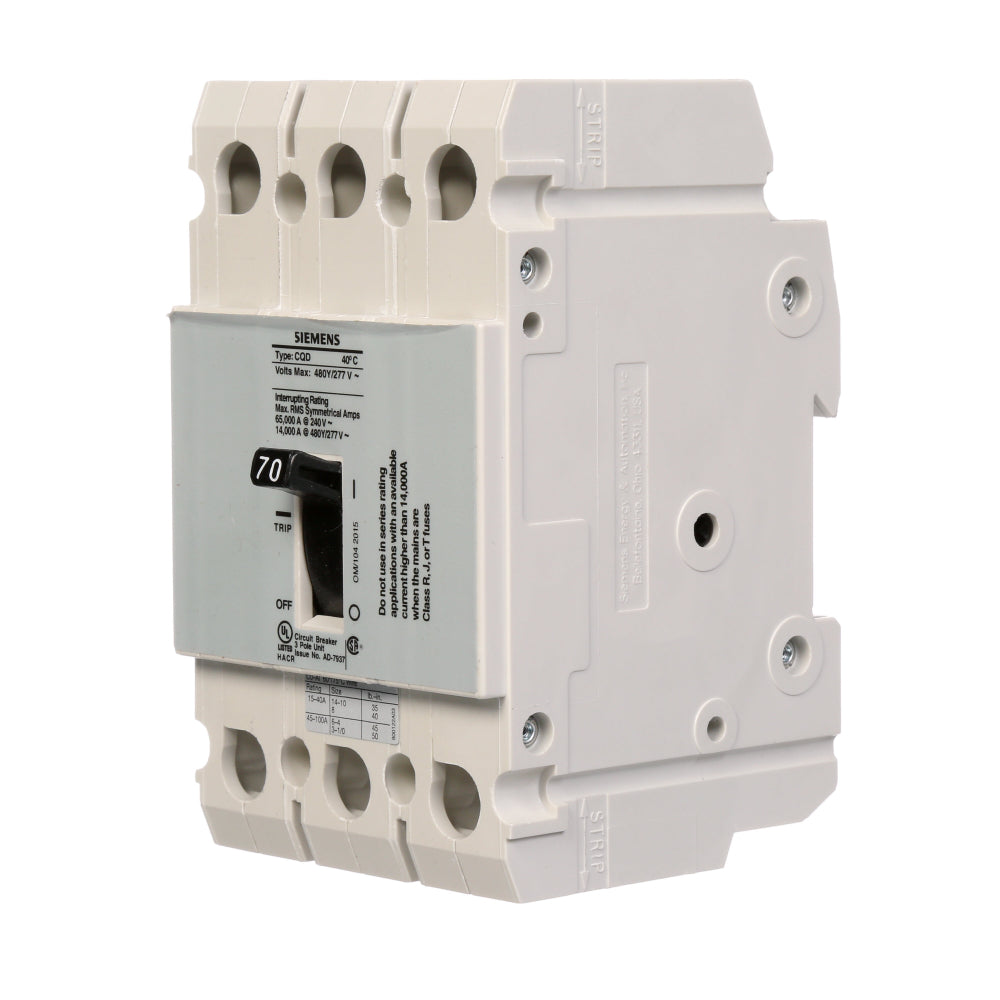

CQD370 is a Siemens 3 pole molded case circuit breaker rated for 70 amps and 480 volts, designed for din rail mounting.This Siemens CQD370 circuit breaker features a thermal magnetic trip unit with a 14 kA interrupt rating at 480V. It is part of the CQD series, suitable for low voltage applications with line and load side lug terminals.
- Key Specifications
- Manufacturer: Siemens
- Part Number: CQD370
- Amperage: 70A
- Voltage Rating: 277/480 VAC
- Poles: 3
- Mounting Type: Din Rail
- Interrupt Rating: 14 kA at 480V
- Trip Unit: Thermal Magnetic
- Series/Frame: CQD
- UPC/GTIN: 783643277823
- Part Number: CQD370
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CQD Series
- Type : CQD
- Voltage : 480
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 783643277823
- GTIN : 00783643277823
- Country of Origin : Mexico
- Weight : 2.101
- Certification : Ul Listed Csa Certified
- Wire Size : 6 To 1/0 Awg Aluminum 8 To 1 Awg Copper
