Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CND63S120A

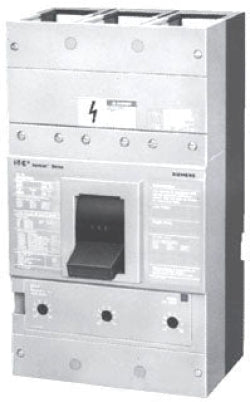

CND63S120A is a 3 pole, 600 Volt, 1200 amp molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This Siemens CND63S120A breaker features a bolt-on mounting design, thermal-magnetic trip unit, and is part of the ND frame series. It is rated for 1200A continuous current, 600V AC, and offers a high interrupting capacity for demanding applications. The breaker is current limiting and does not include lugs.
- Part Number: CND63S120A
- Manufacturer: Siemens
- Series/Frame: ND
- Mounting Type: Bolt-On
- Amperage: 1200A
- Voltage: 600V AC
- Poles: 3
- Interrupt Rating: 100kA @ 480V
- Trip Unit: Thermal-Magnetic, Non-Interchangeable
- Application: Commercial, Industrial
- Features: Current Limiting, Switch Only
- Certifications: UL Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: CND63S120A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CND
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : NA - No Overcurrent Protection
- Frame Size : ND Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Non-Automatic
Product Data
- UPC : 783643236912
- GTIN : 00783643236912
- Country of Origin : Mexico
- Weight : 54
- Wire Size : 250 to 500KCM, Cu/Al
