CND63B120H - Siemens 1200A 600V 3 Pole Bolt-On Circuit Breaker, Thermal Magnetic, CND Frame

CND63B120H

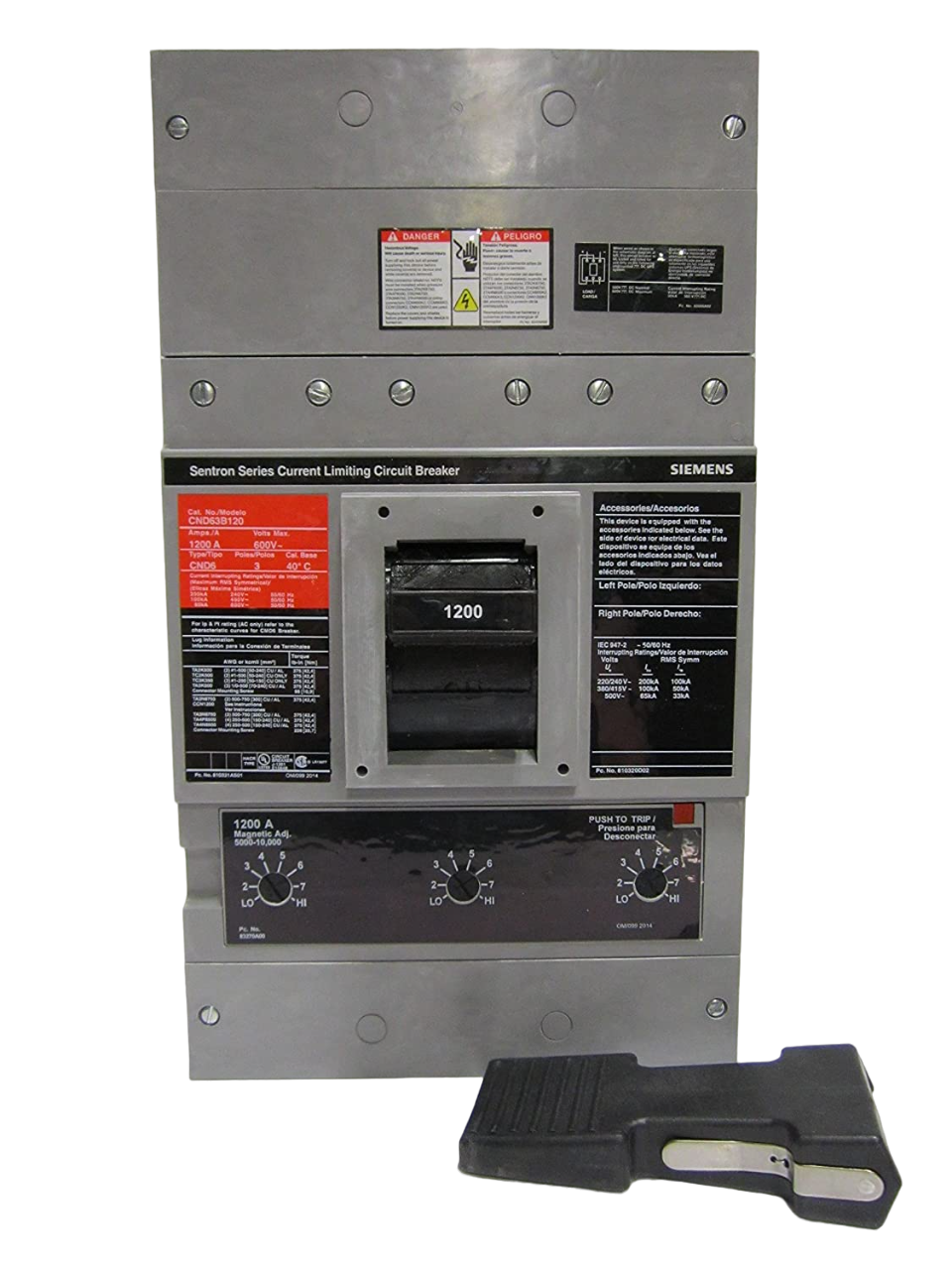

CND63B120H is a Siemens 1200 amp, 600 volt, 3 pole bolt-on circuit breaker designed for reliable power distribution protection.This Siemens CND63B120H circuit breaker features a thermal magnetic trip unit and a CND frame type. It is 100% rated with a current limiting breaking capacity, offering interrupting ratings of 200kA at 240V AC, 100kA at 480V AC, and 65kA at 600V AC. The breaker measures 9 inches wide by 16 inches high by 8.25 inches deep and weighs approximately 80 lbs. It supports lug kits for wire sizes from 250 to 500 Kcmil. This breaker meets UL 489 and IEC 60947-2 standards for safety and performance.

Key Specifications
• Amperage: 1200A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Frame Type: CND
• Interrupting Rating: 200kA @ 240V, 100kA @ 480V, 65kA @ 600V
• Trip Unit: Thermal Magnetic
• Dimensions: 9" W x 16" H x 8.25" D
• Weight: 80 lbs
• Wire Size Compatibility: 250 to 500 Kcmil (with lug kit)
• Certifications: UL 489, IEC 60947-2
• 100% Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CND63B120H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CND
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : ND Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643215955
• GTIN : 00783643215955
• Country of Origin : Mexico
• Weight : 54
• Wire Size : 250 to 500KCM, Cu/Al
