CN55KN3E - Cutler Hammer 90A 600V 3 Pole Motor Control Contactor NEMA Size 3 Reversing Relay

CN55KN3E

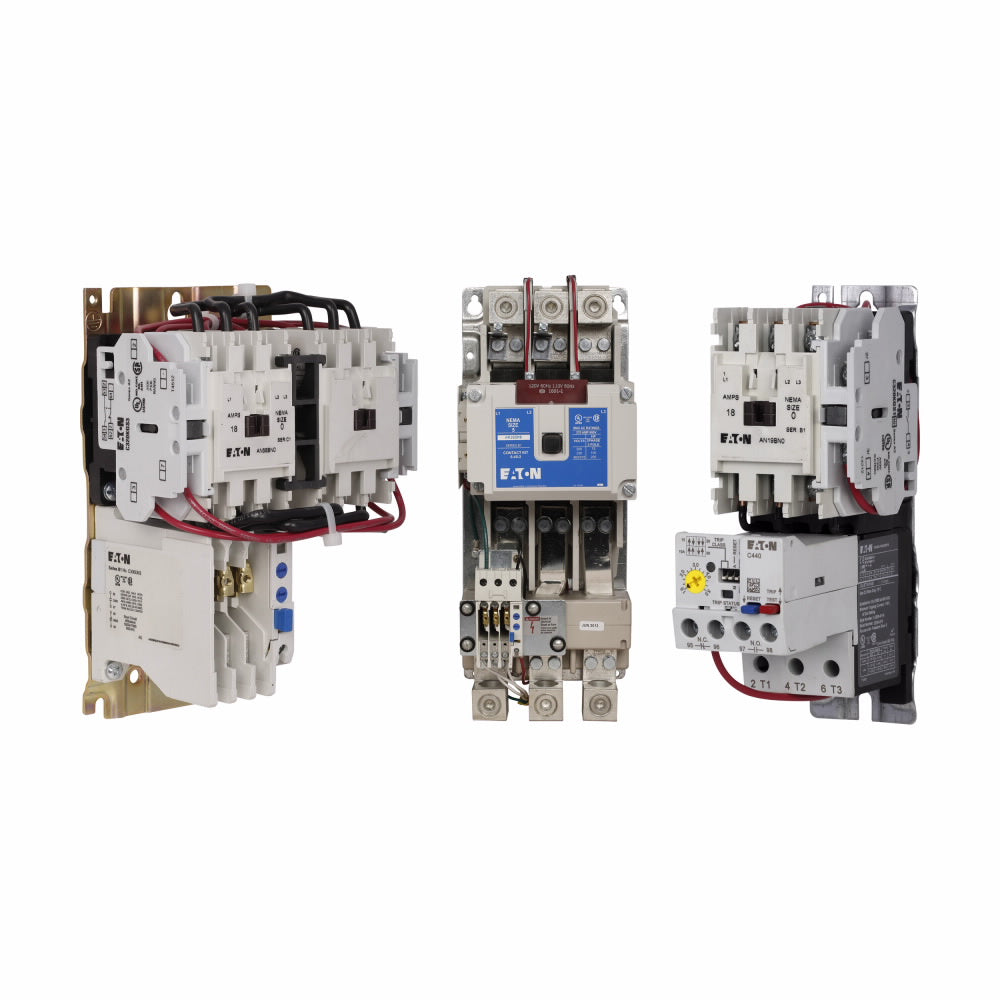

CN55KN3E is a Cutler Hammer motor control contactor designed for reversing motor applications with a 90 amp rating and 600 volt capacity.This Eaton Freedom NEMA Size 3 contactor features a three-pole configuration suitable for three-phase power systems. It supports full voltage reversing operation with a coil voltage of 208V at 60 Hz. The contactor is rated for 90 amps continuous current and can handle horsepower ratings of 25 hp at 208V, 30 hp at 240V, and up to 50 hp at 480/600V. It comes in an open enclosure style and is UL Listed for safety compliance.

• Amperage: 90 A
• Voltage: 600 V
• Poles: 3
• Phase: Three-phase
• Mounting Type: NEMA Size 3 open enclosure
• Control Type: Full voltage reversing relay
• Horsepower Ratings: 25 hp @ 208V, 30 hp @ 240V, 50 hp @ 480/600V
• Coil Voltage: 208 VAC, 60 Hz
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CN55KN3E
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp
• Aux Contacts : 1NO/1NC
• Coil Voltage Maximum : 208
• Full Load Amps : 90 A
• Coil Voltage Minimum : 208

Product Data

• UPC : 782113748962
• GTIN : 00782113748962
• Country of Origin : United States
• Dimensions : 7.25 in x 9.11 in x 7.05 in (Length/Depth x Height x Width)
• Weight : 20
• Certification : BS, CSA, UL Listed, VDE
