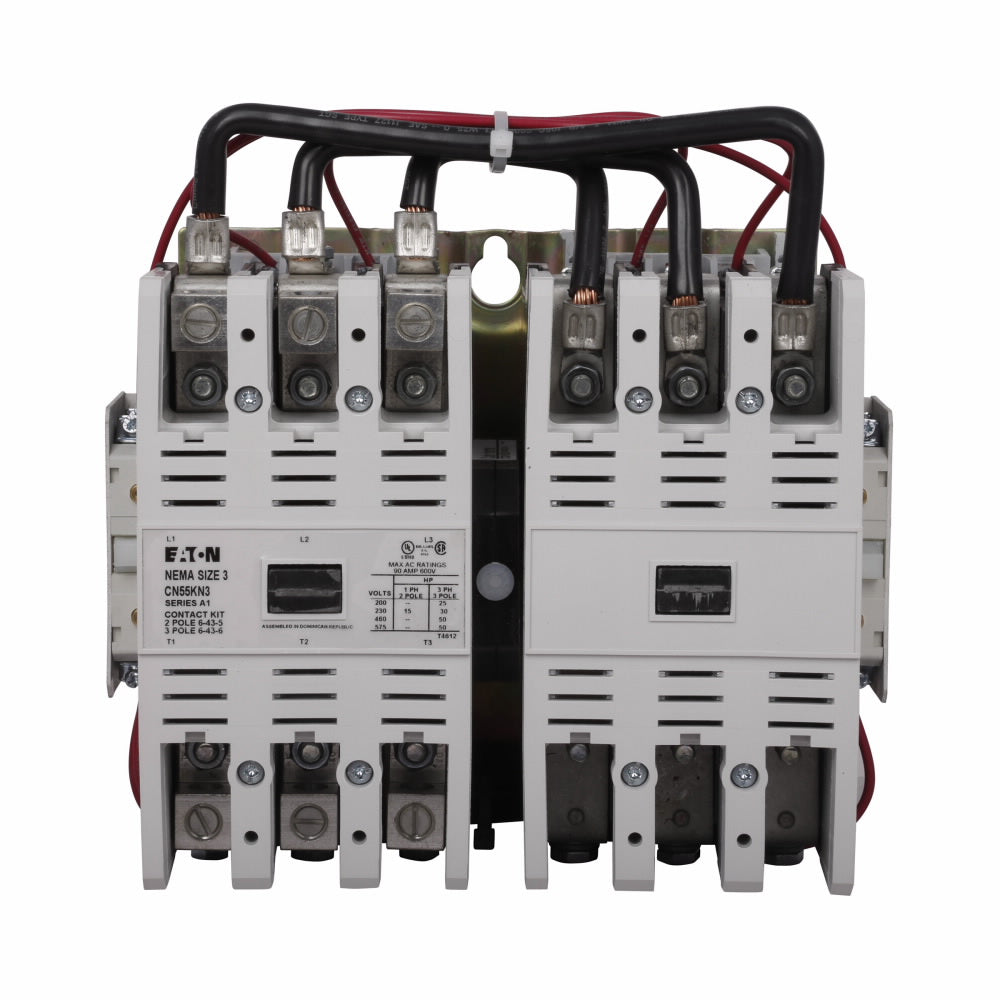

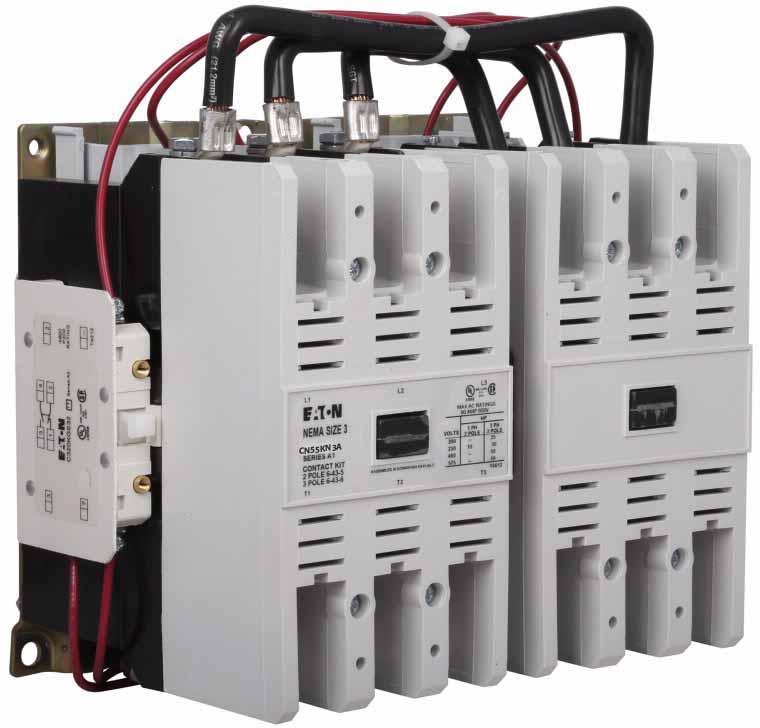

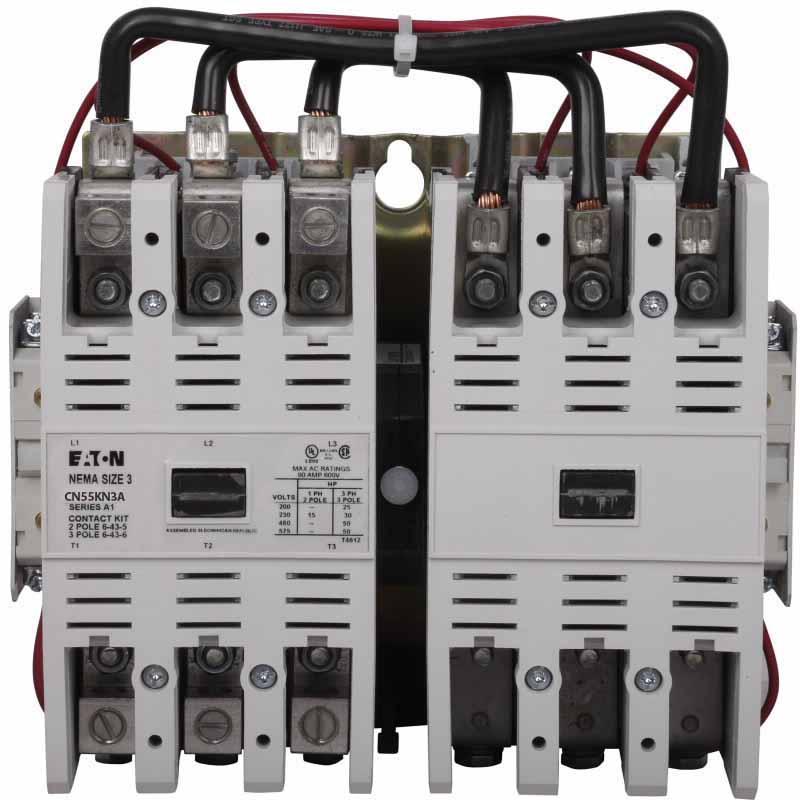

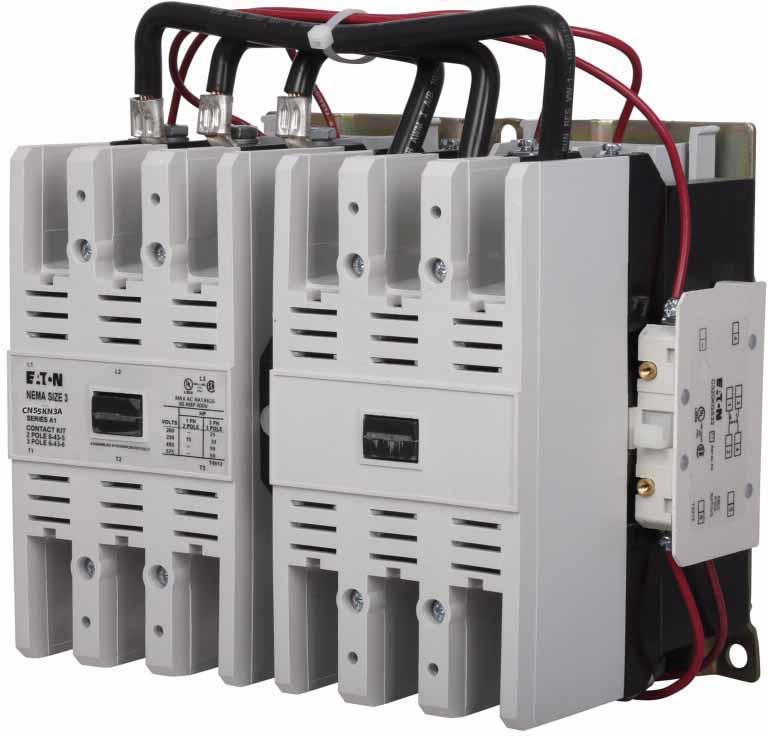

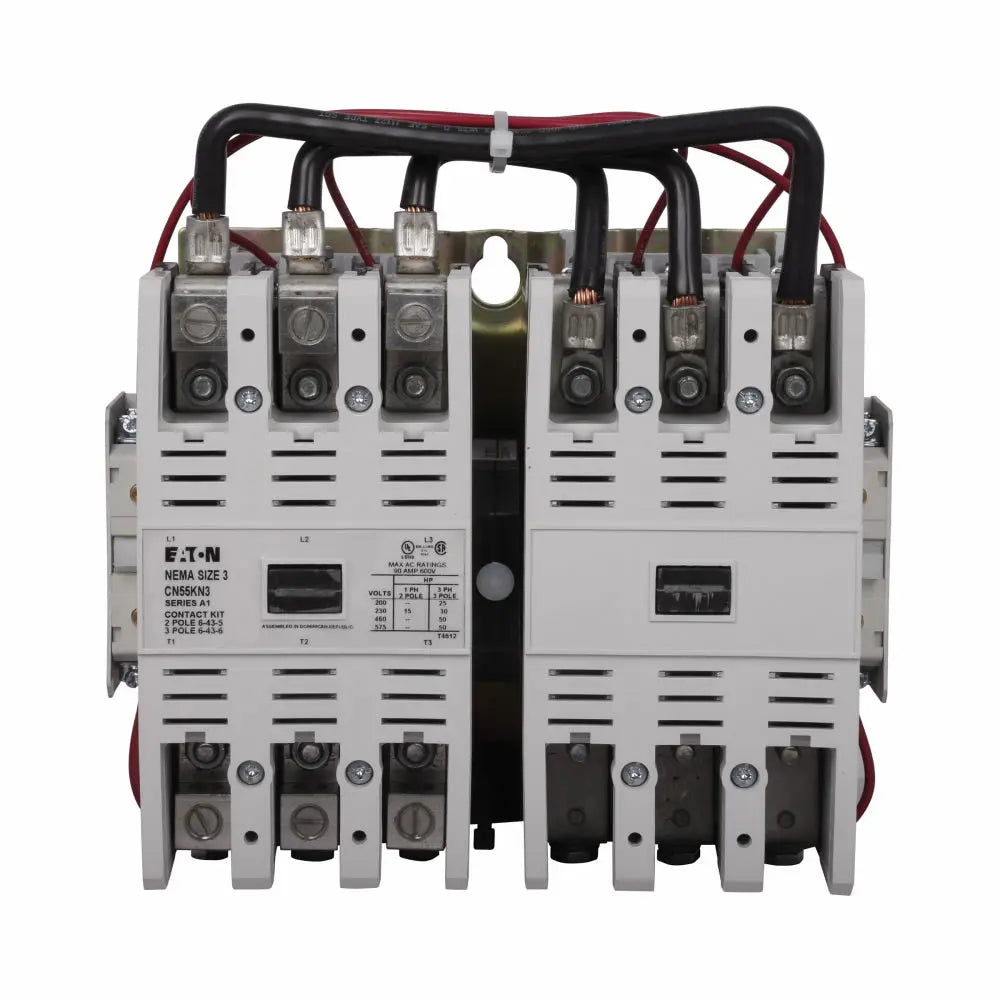

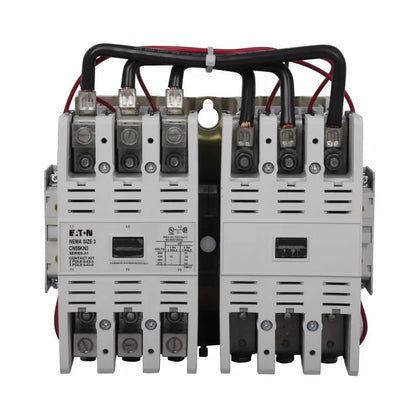

CN55KN3A - Cutler Hammer Freedom Series 90A 600V 3-Pole NEMA Size 3 Reversing Motor Contactor

CN55KN3A

CN55KN3A is a Cutler Hammer Freedom Series motor control contactor designed for reversing applications with a 90 amp rating and 600 volt capacity.This Eaton Freedom NEMA Size 3 contactor features a three-pole configuration suitable for three-phase power systems. It supports horsepower ratings of 25 HP at 208 V, 30 HP at 240 V, and 50 HP at 480/600 V. The coil voltage options include 120 VAC at 60 Hz or 110 VAC at 50 Hz. It is UL Listed and CSA Certified for safety and reliability.

Key Specifications
• Amperage Rating: 90 A
• Voltage Rating: 600 V
• Poles: 3
• Configuration: Reversing
• NEMA Frame Size: 3
• Horsepower Ratings: 25 HP @ 208 V, 30 HP @ 240 V, 50 HP @ 480/600 V
• Coil Voltage: 120 VAC 60 Hz / 110 VAC 50 Hz
• Mounting: Horizontal/Vertical
• Enclosure Type: Open
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This NEMA Reversing Contactor includes a 110 VAC coil.

Specifications

• Part Number: CN55KN3A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CN55KN
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 25 hp HP @ 3 Phase - 240V 30 hp HP @ 3 Phase - 480V 50 hp
• Configuration : Reversing
• Aux Contacts : 1NO/1NC
• Coil Voltage Maximum : 120
• Full Load Amps : 90 A
• Coil Voltage Minimum : 110
• Nema Starter Size : 3
• Frequency : 50 Hz

Product Data

• UPC : 782113625027
• GTIN : 00782113625027
• Country of Origin : Dominican Republic
• Dimensions : 5.94 in x 7.17 in x 4.08 in (Length/Depth x Height x Width)
• Weight : 15 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, UL Listed
