CN55BN3AB - Cutler Hammer Eaton Freedom NEMA Motor Control Contactor 18A 3-Pole 600V Reversing

CN55BN3AB

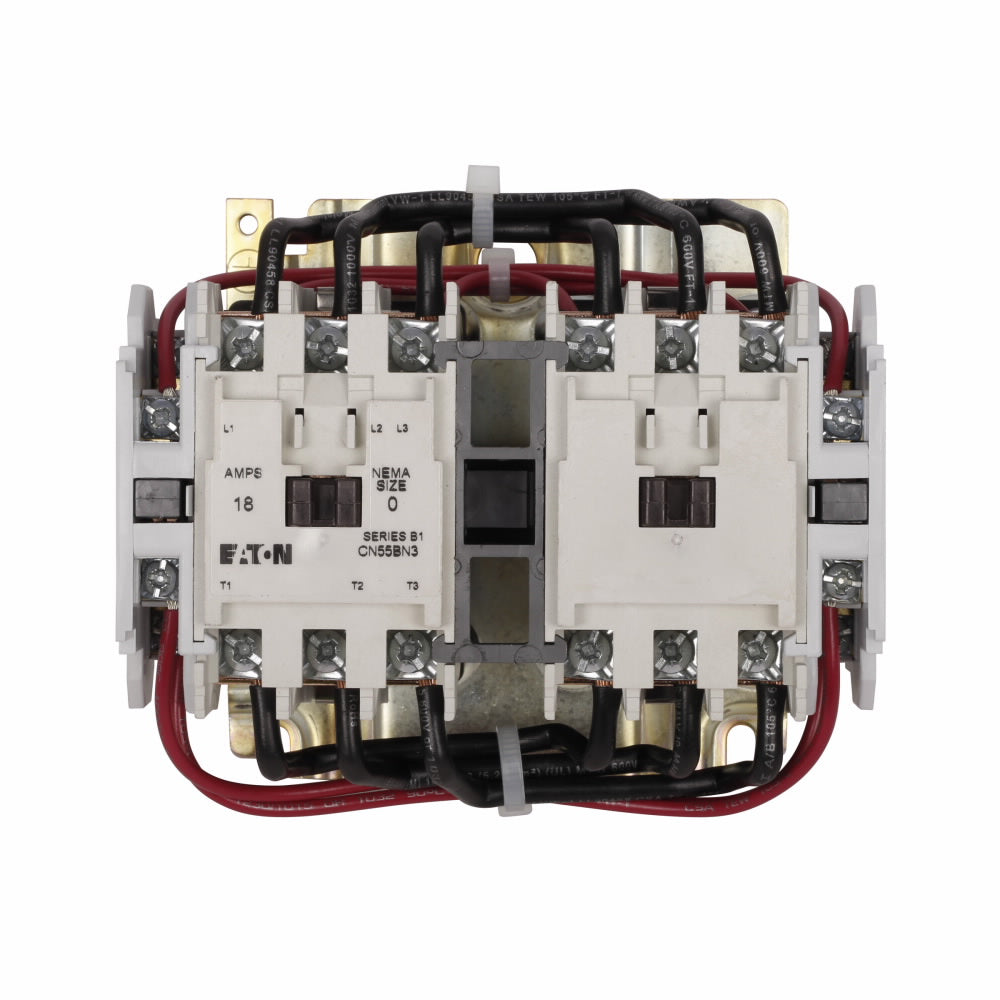

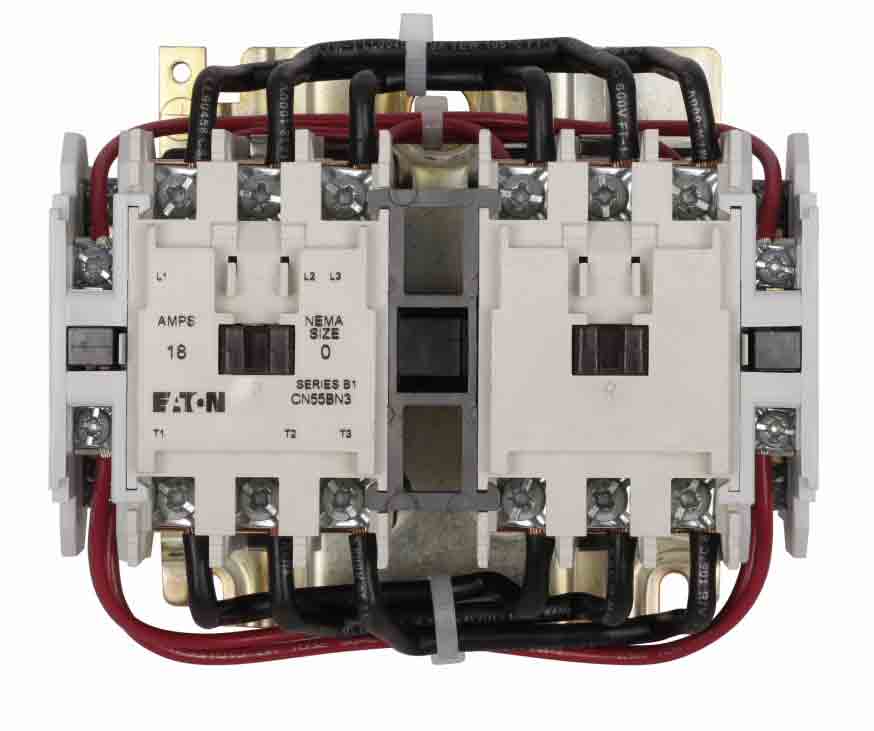

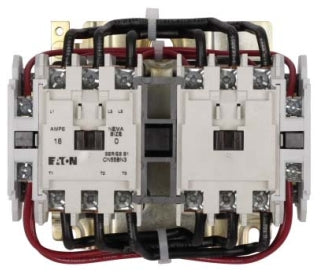

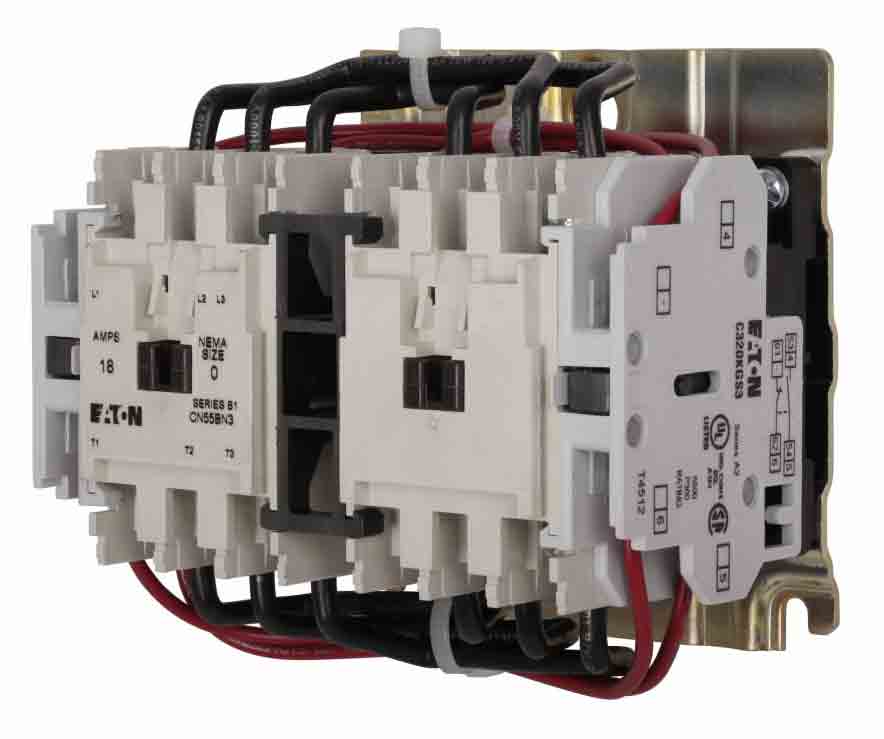

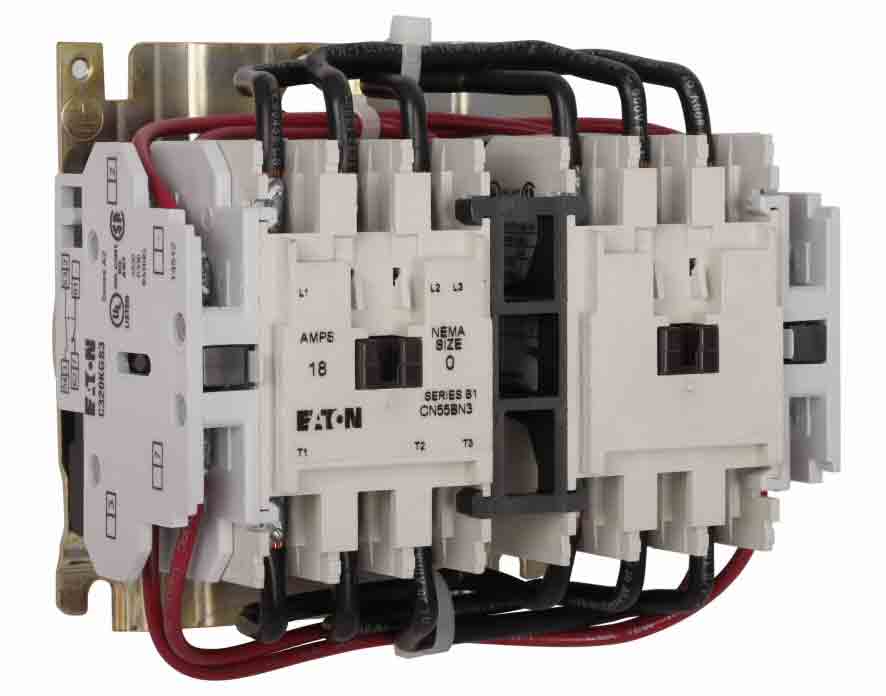

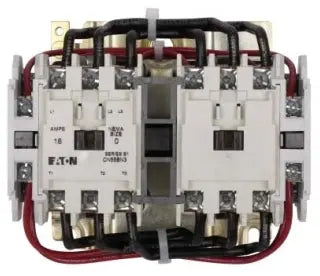

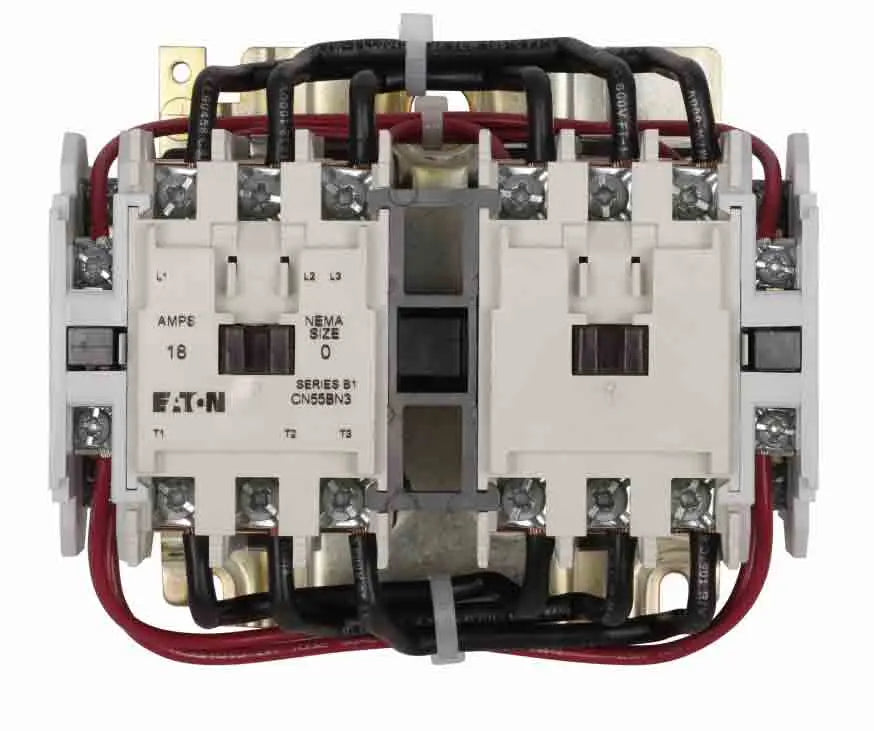

CN55BN3AB is a Cutler Hammer Eaton Freedom NEMA motor control contactor designed for reversing applications with a 3-pole configuration and 18 ampere rating.This Eaton Freedom Series contactor supports single-phase and three-phase motors with horsepower ratings up to 5 HP at 480/600V and coil voltages of 110/120V AC. It is UL Listed and CSA Certified, built for durability with 2,000,000 electrical and 20,000,000 mechanical operations, and sized as a Size 0 frame.

Key Specifications
• Amperage Rating: 18A
• Voltage Rating: 600 VAC max
• Poles: 3
• Mounting Type: NEMA Freedom Series
• Horsepower Ratings: 1 HP at 115V, 2 HP at 230V, 3 HP at 208/240V, 5 HP at 480/600V
• Coil Voltage: 110V/50Hz, 120V/60Hz
• Interrupt Rating: Suitable for general duty control
• Series/Frame: Freedom Series, Size 0
• Trip Unit: Magnetic Contactor
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This NEMA Reversing Contactor includes a 120 VAC coil.

Specifications

• Part Number: CN55BN3AB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CN55BN
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp
• Configuration : Reversing
• Aux Contacts : 1NO/1NC
• Coil Voltage Maximum : 120
• Full Load Amps : 18 A
• Coil Voltage Minimum : 110
• Nema Starter Size : 0
• Frequency : 50 Hz

Product Data

• UPC : 782113781327
• GTIN : 00782113781327
• Country of Origin : Dominican Republic
• Dimensions : 3.49 in x 3.88 in x 1.75 in (Length/Depth x Height x Width)
• Weight : 8.5 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, UL Listed
