CN15SN3C - Cutler Hammer 270A 3-Pole Motor Contactor, 480V Coil, NEMA Size 5, Non-Reversing, 600VAC Frame

CN15SN3C

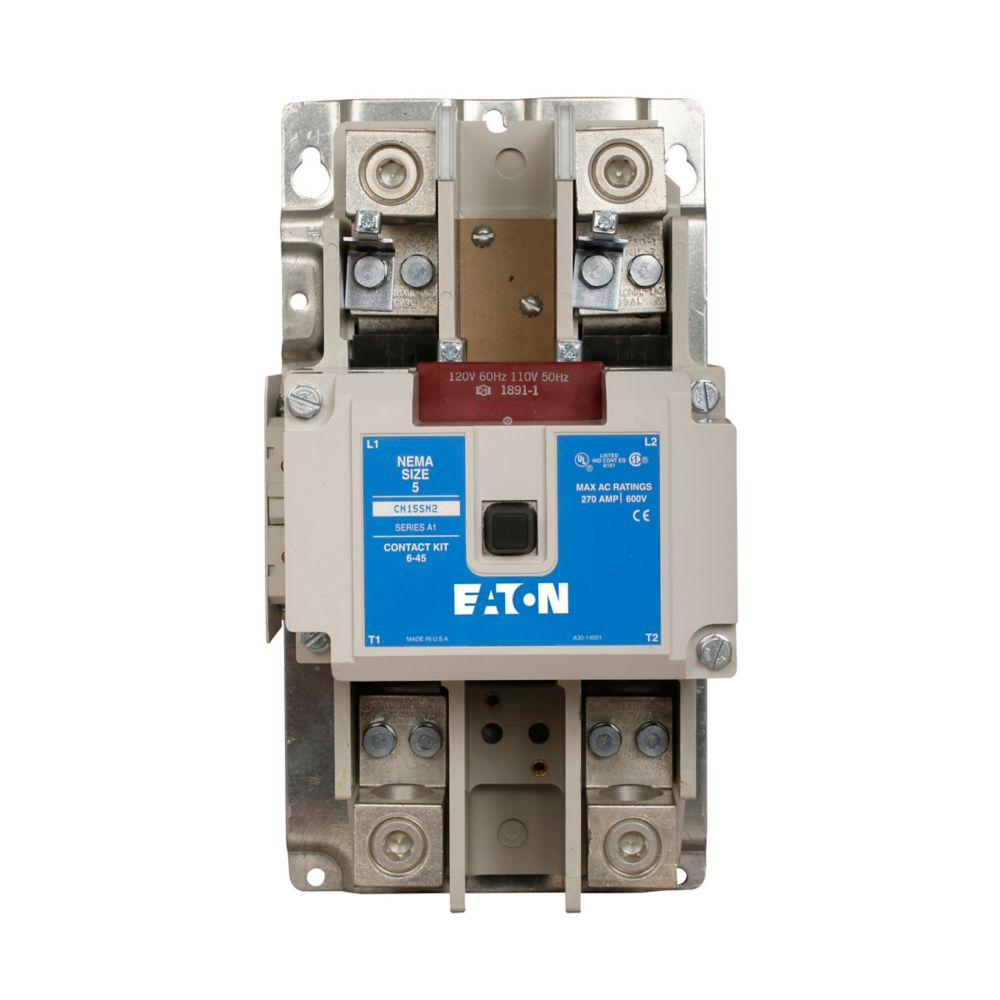

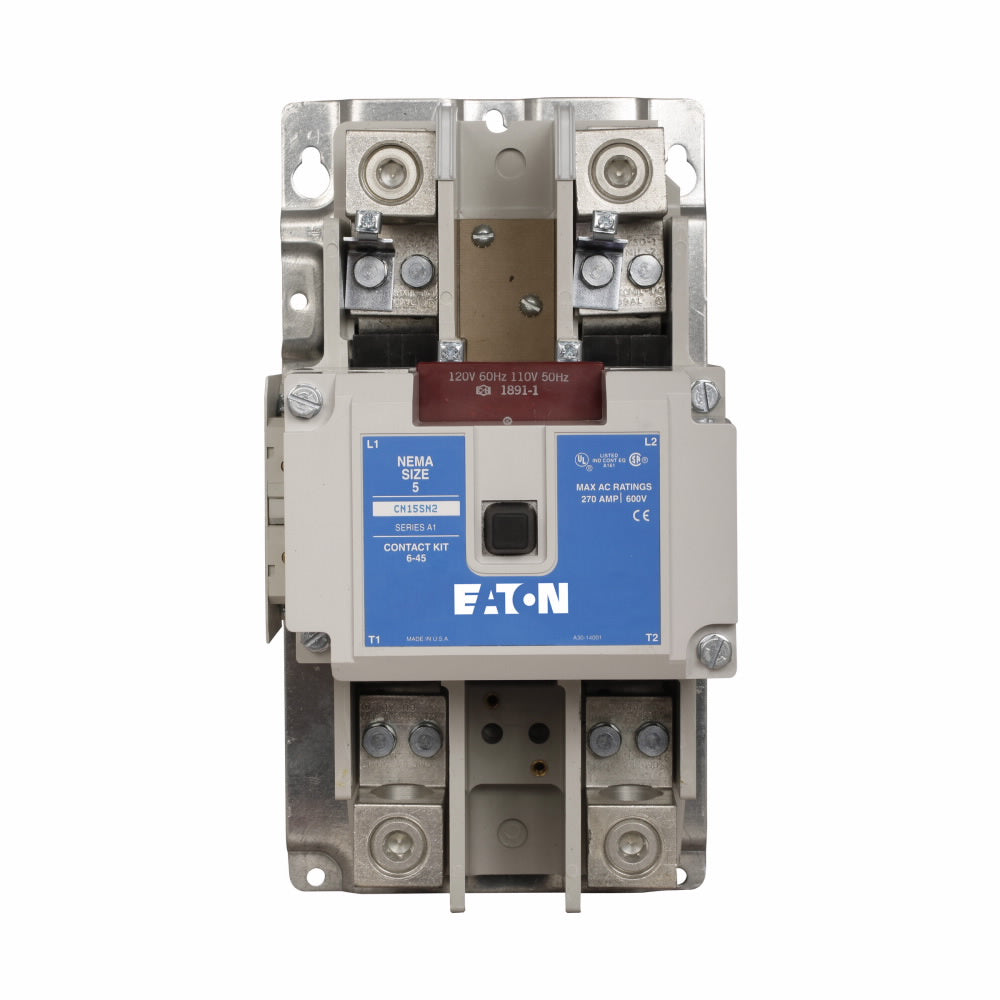

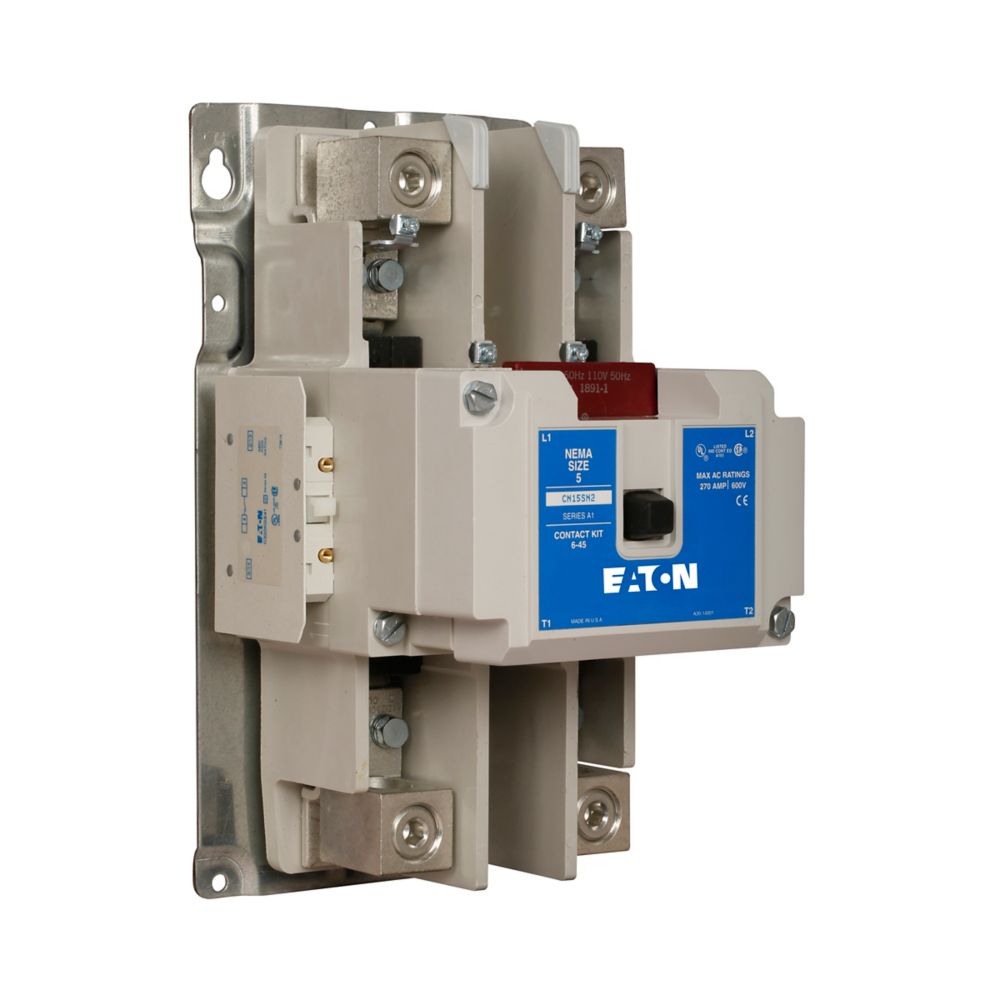

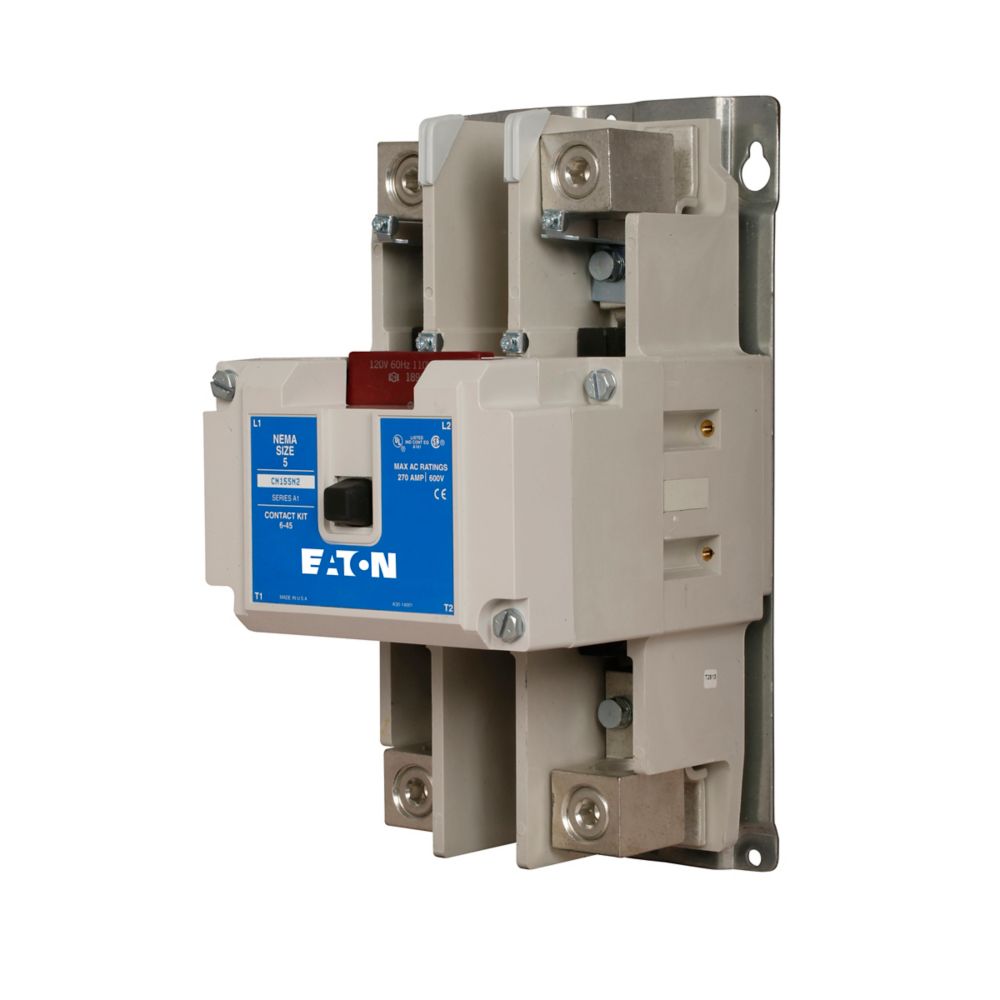

CN15SN3C is a Cutler Hammer motor control contactor designed for heavy-duty industrial applications with a 270 amp rating and 3 poles.This Eaton Freedom Series contactor features a 480 VAC coil voltage and supports full voltage operation up to 600 VAC. It is a non-reversing, three-phase device built to NEMA Size 5 standards, suitable for controlling motors up to 200 HP at 480/600 volts. The contactor has line and load end terminals with box lug termination and is UL Listed and CSA Certified for safety and reliability.

• Amperage Rating: 270 A
• Poles: 3 (Three-pole)
• Coil Voltage: 480 VAC (also compatible with 440 VAC)
• Voltage Max: 600 VAC
• NEMA Frame Size: 5
• Configuration: Non-Reversing
• Maximum Horsepower: 75 HP @ 208 V, 100 HP @ 240 V, 200 HP @ 480/600 V
• Termination Type: Box Lug
• Certifications: UL Listed, CSA Certified
• Enclosure: Open Style (No enclosure)
• Manufacturer Warranty: One Year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CN15SN3C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CN15SN
• Voltage : 600
• Amperage : 270
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 75 hp HP @ 3 Phase - 240V 100 hp HP @ 3 Phase - 480V 200 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 480
• Full Load Amps : 270 A
• Coil Voltage Minimum : 440

Product Data

• UPC : 782113622514
• GTIN : 00782113622514
• Country of Origin : United States
• Dimensions : 7.78 in x 13.12 in x 7.05 in (Length/Depth x Height x Width)
• Weight : 0.9 lb
• Certification : CSA, UL Listed
