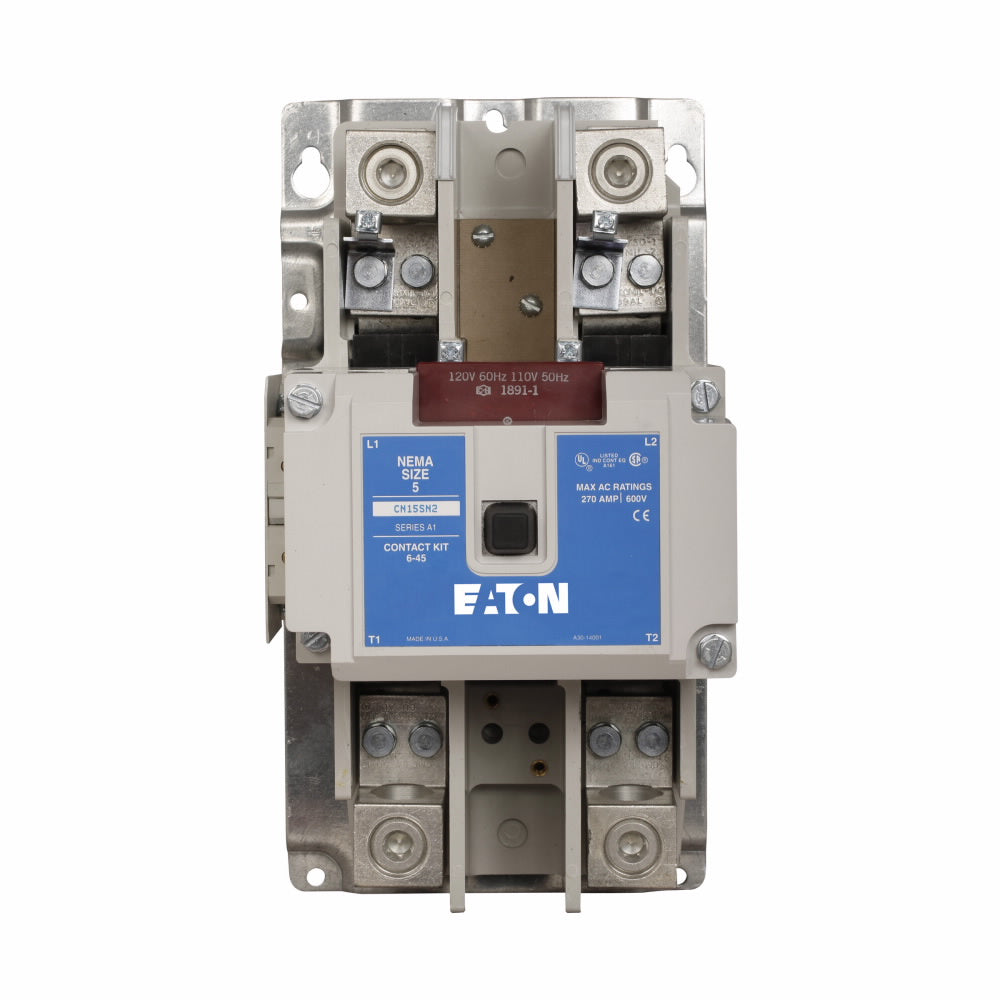

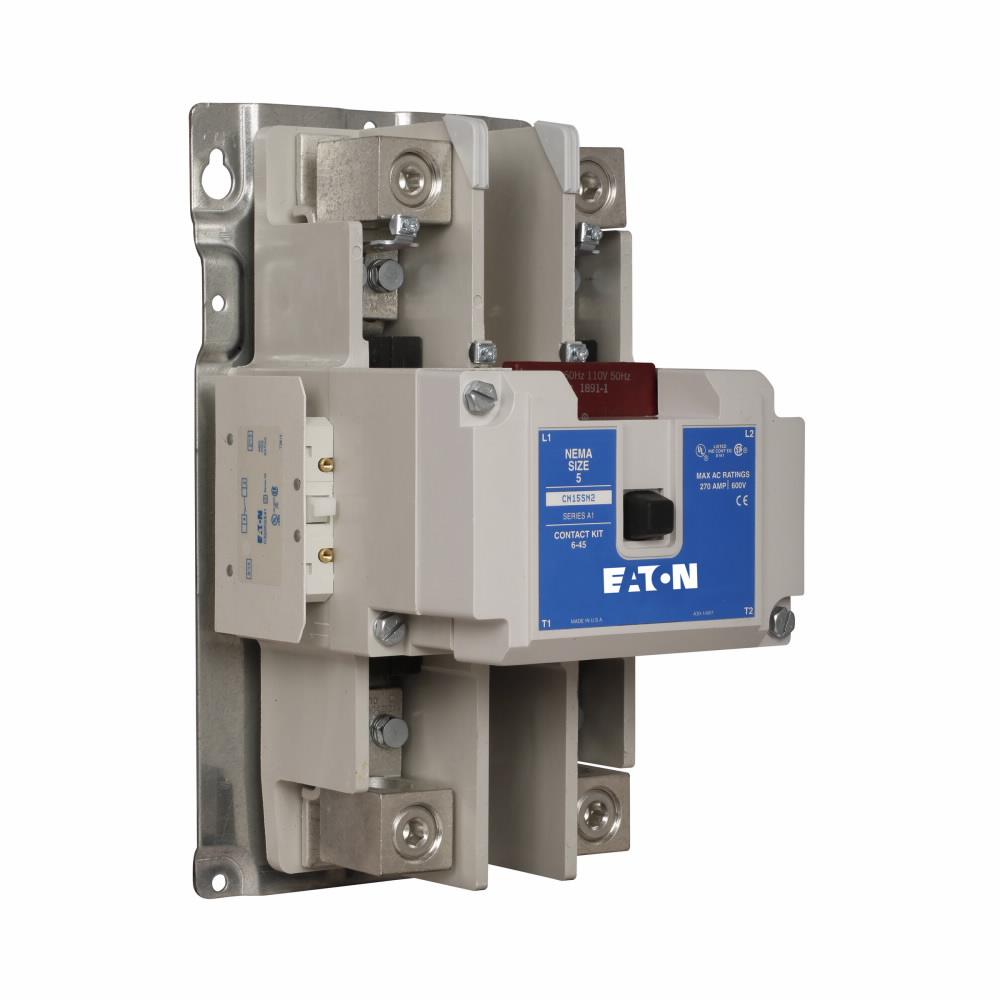

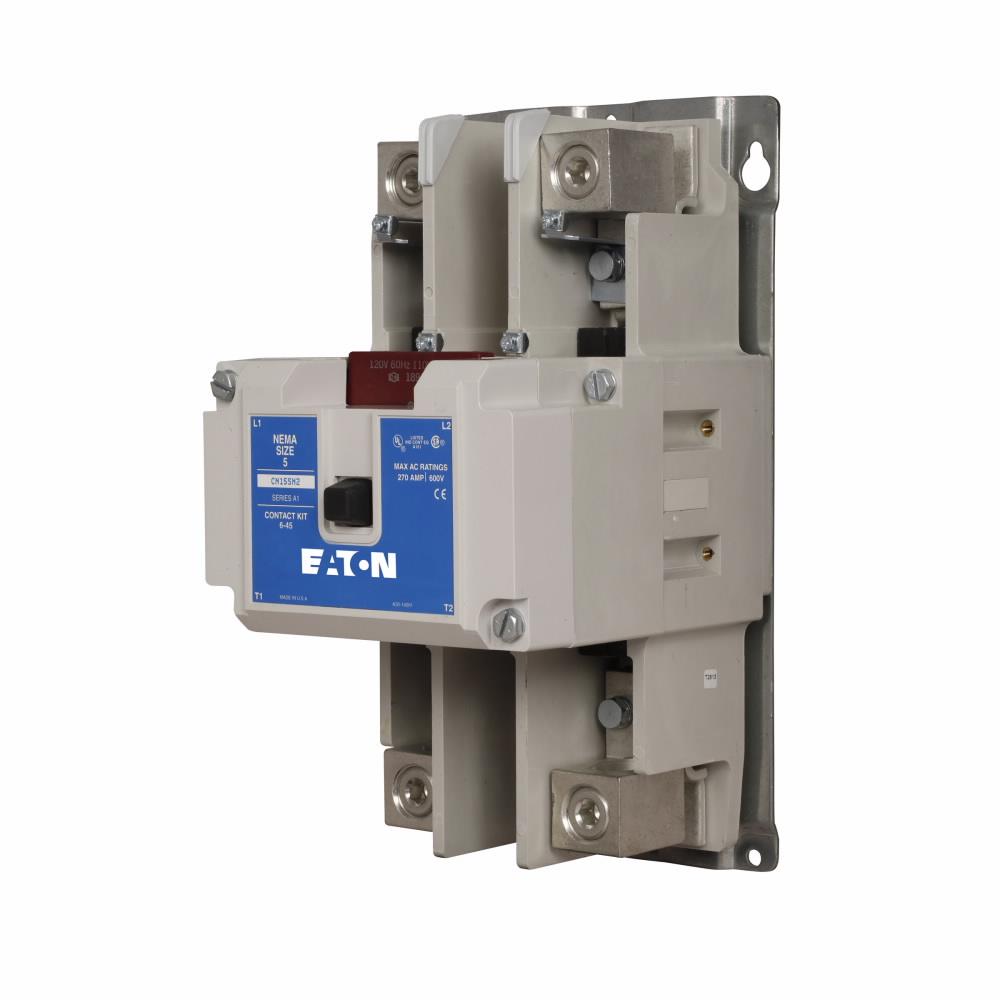

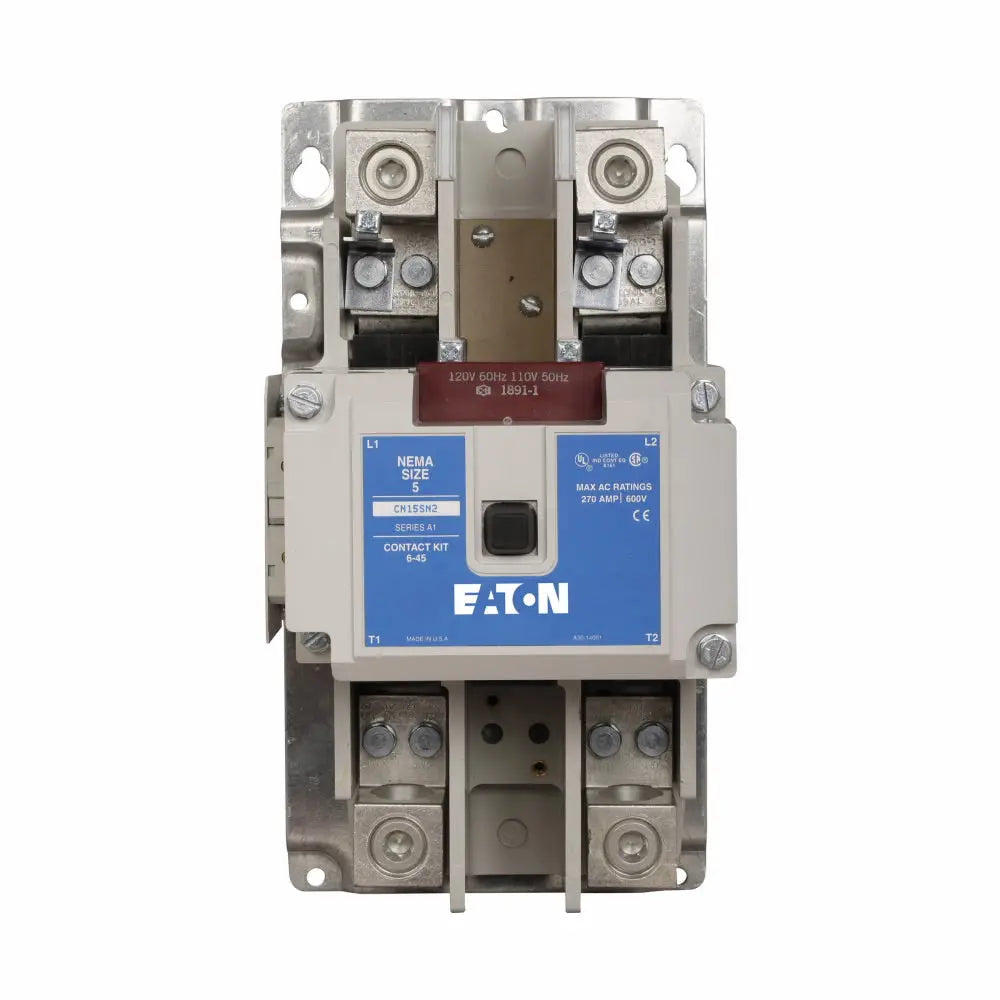

CN15SN3A - Cutler Hammer 270A 600VAC 3-Pole NEMA Size 5 Motor Contactor, 120V Coil, Non-Reversing

CN15SN3A

CN15SN3A is a Cutler Hammer Freedom Series magnetic motor contactor designed for motor control applications with a 270 Amp rating and 3 poles.CN15SN3A features a NEMA Size 5 frame, 120V AC coil voltage, and supports full voltage operation up to 600VAC. It is a non-reversing, open style contactor suitable for panel mounting with box lug terminal connections. The contactor is UL listed and CSA certified, rated for horsepower up to 75 HP at 208V, 100 HP at 240V, and 200 HP at 480/600V.

Key Specifications
• Amperage: 270 A
• Voltage Rating: 600 VAC max
• Poles: 3
• Coil Voltage: 120 V AC (60 Hz) / 110 V AC (50 Hz)
• NEMA Size: 5
• Mounting Type: Panel mount
• Configuration: Non-reversing
• Terminal Connection: Box lug
• Frame Type: CN15
• Certifications: UL Listed, CSA Certified
• Horsepower Ratings: 75 HP @ 208V, 100 HP @ 240V, 200 HP @ 480/600V
• Weight: 27.6 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CN15SN3A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CN15SN
• Voltage : 600
• Amperage : 270
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 75 hp HP @ 3 Phase - 240V 100 hp HP @ 3 Phase - 480V 200 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 120
• Full Load Amps : 270 A
• Coil Voltage Minimum : 110

Product Data

• UPC : 782113604176
• GTIN : 00782113604176
• Country of Origin : Dominican Republic
• Dimensions : 7.78 in x 13.12 in x 7.05 in (Length/Depth x Height x Width)
• Weight : 27.6 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, UL Listed
