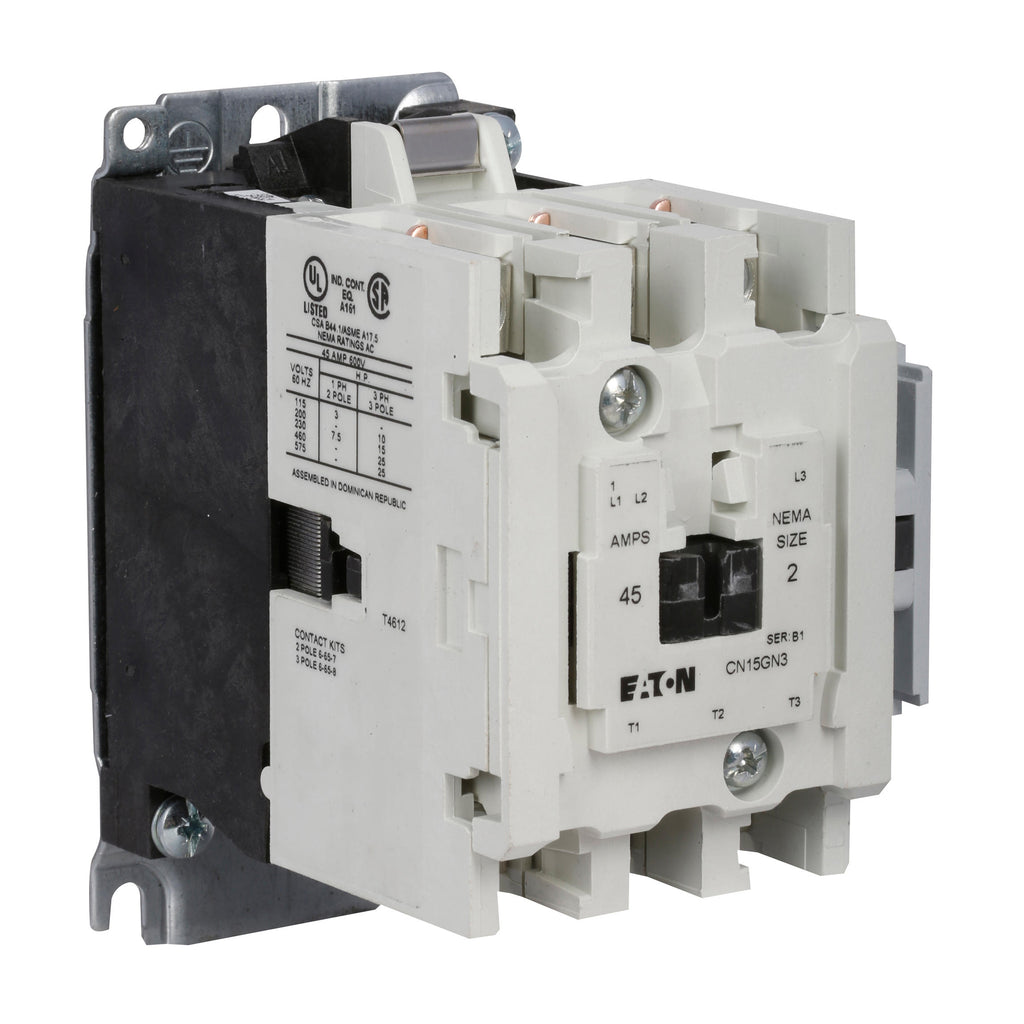

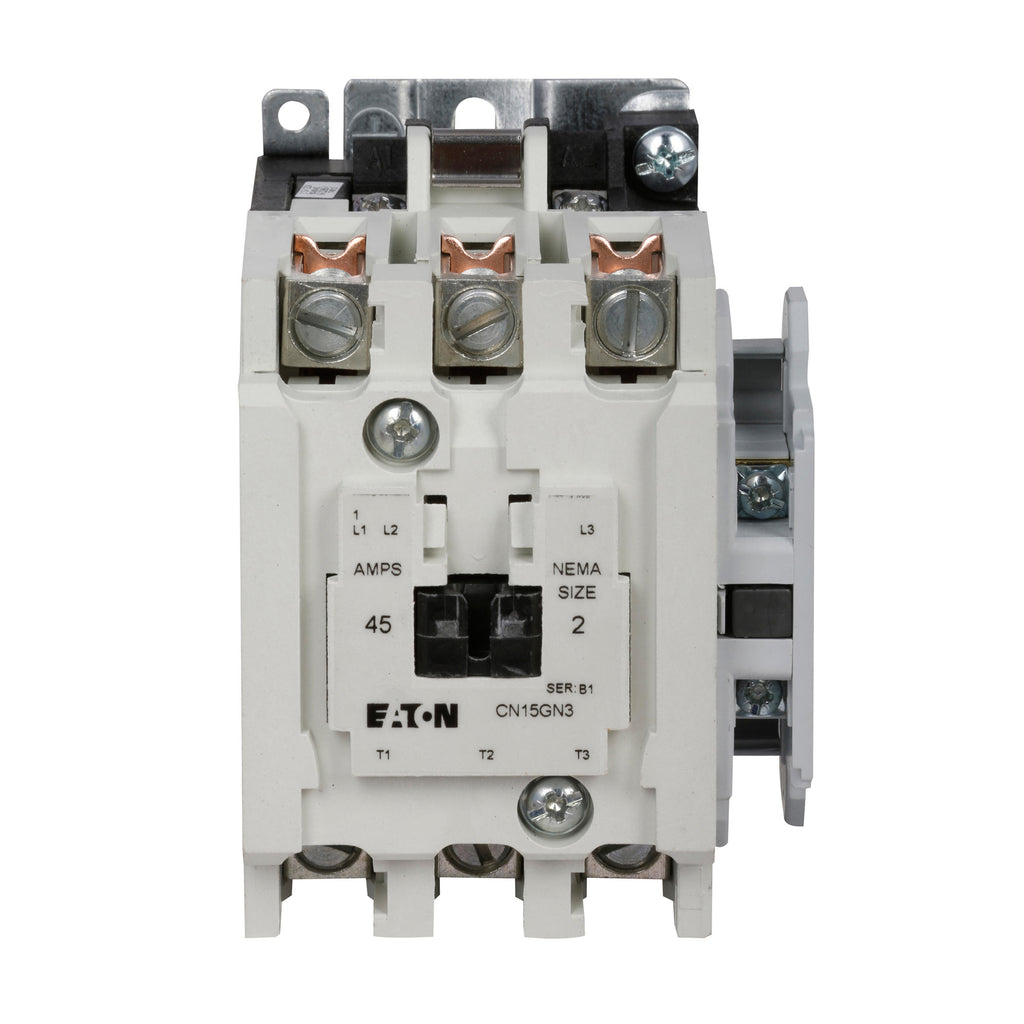

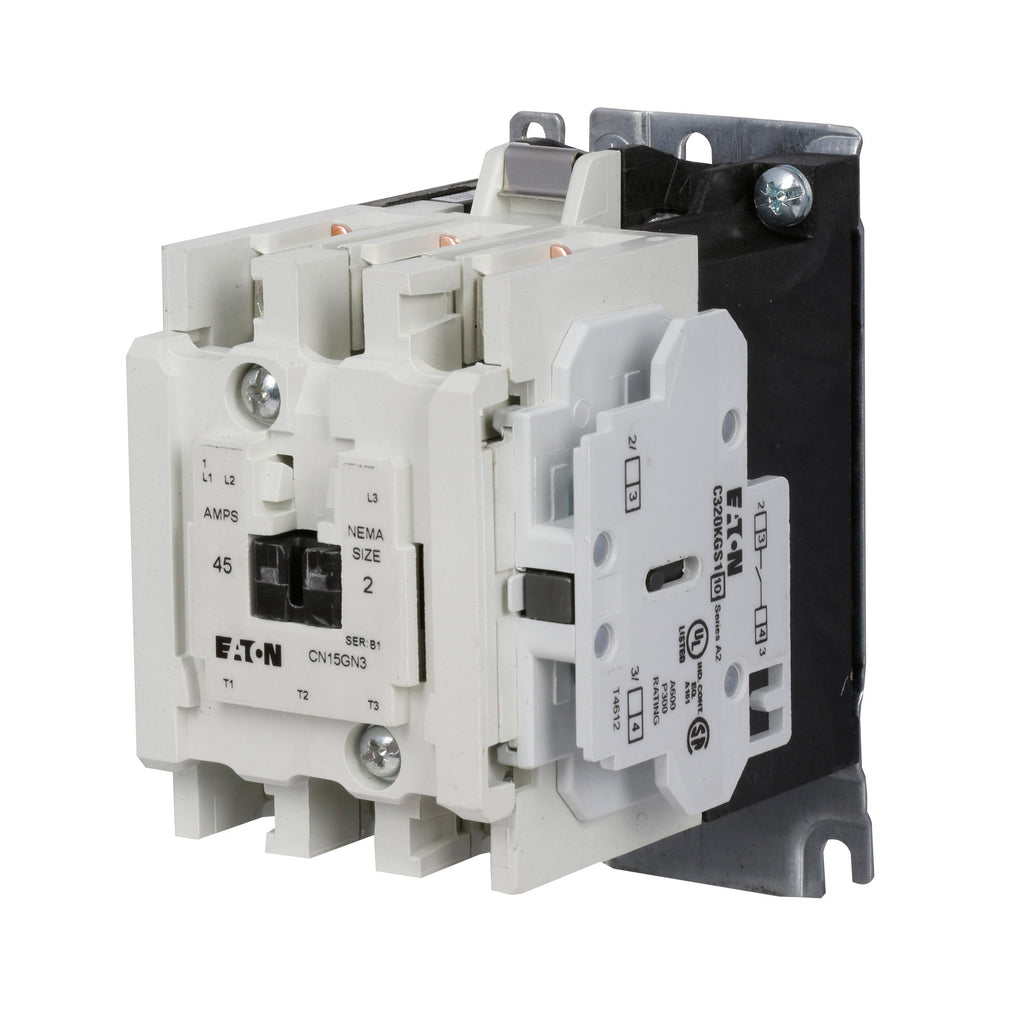

CN15GN3CB - Cutler Hammer Freedom Series 45A 600V 3 Pole Motor Control Contactor

CN15GN3CB

CN15GN3CB is a Cutler Hammer Freedom Series motor control contactor rated for 45 amps and 600 volts with 3 poles. It is designed for reliable motor starting and control in industrial applications.CN15GN3CB features a 3-phase, 3-pole configuration suitable for various motor control needs. It supports horsepower ratings up to 25 hp at 480/600V and includes a coil voltage rating of 440V at 50Hz and 480V at 60Hz. This contactor is part of the Eaton Freedom Series, known for durability and compliance with industry standards.

Key Specifications
• Amperage: 45 Amps
• Voltage: 600 Volts
• Poles: 3 Pole
• Phase: 3 Phase
• Horsepower Ratings: 3 hp at 115V, 7.5 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480/600V
• Coil Voltage: 440V at 50Hz, 480V at 60Hz
• Mounting Type: NEMA Open
• Series/Frame: Freedom Series
• Non-Reversing Contactor
• Interrupt Rating: Standard for Freedom Series contactors
• Certifications: Meets Eaton and industry standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CN15GN3CB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CN15GN
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 480
• Full Load Amps : 45 A
• Coil Voltage Minimum : 440

Product Data

• UPC : 782113026831
• GTIN : 00782113026831
• Country of Origin : United States
• Dimensions : 4.44 in x 5.05 in x 2.56 in (Length/Depth x Height x Width)
• Weight : 3.9 lb
• Certification : CSA, UL Listed
