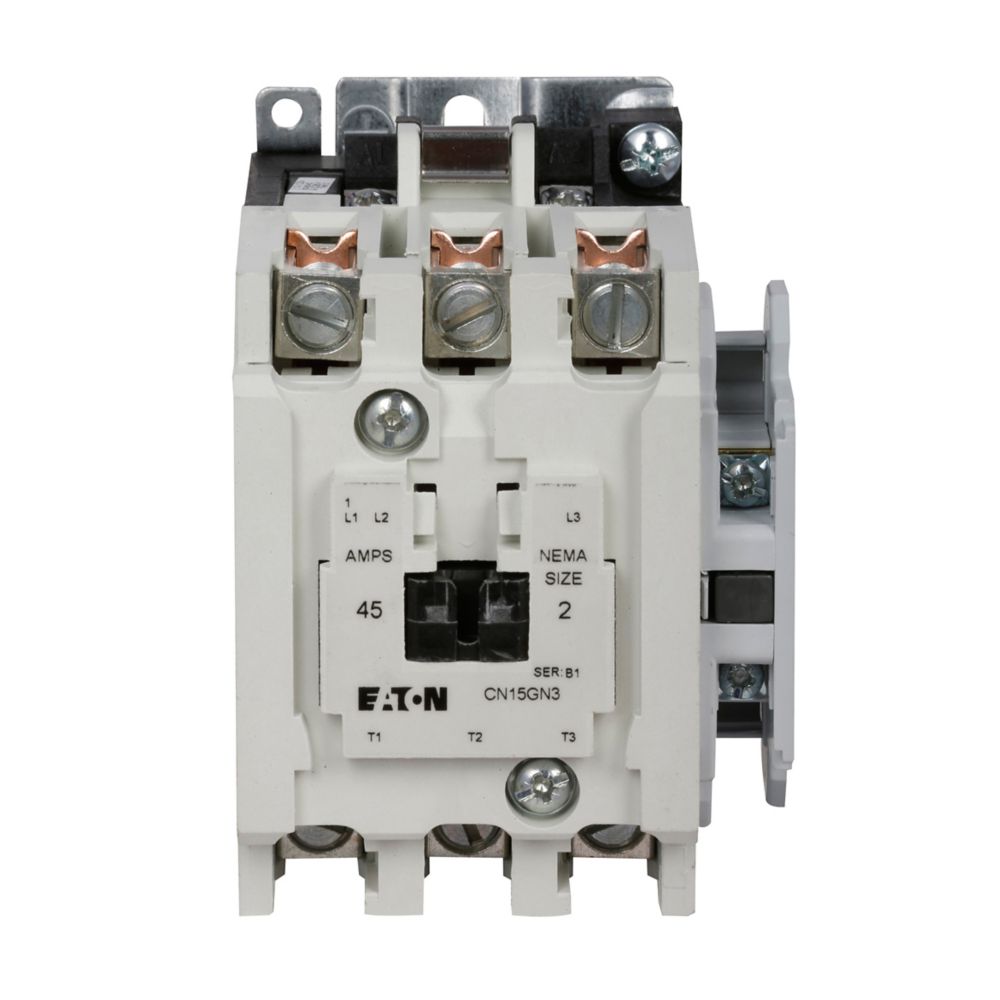

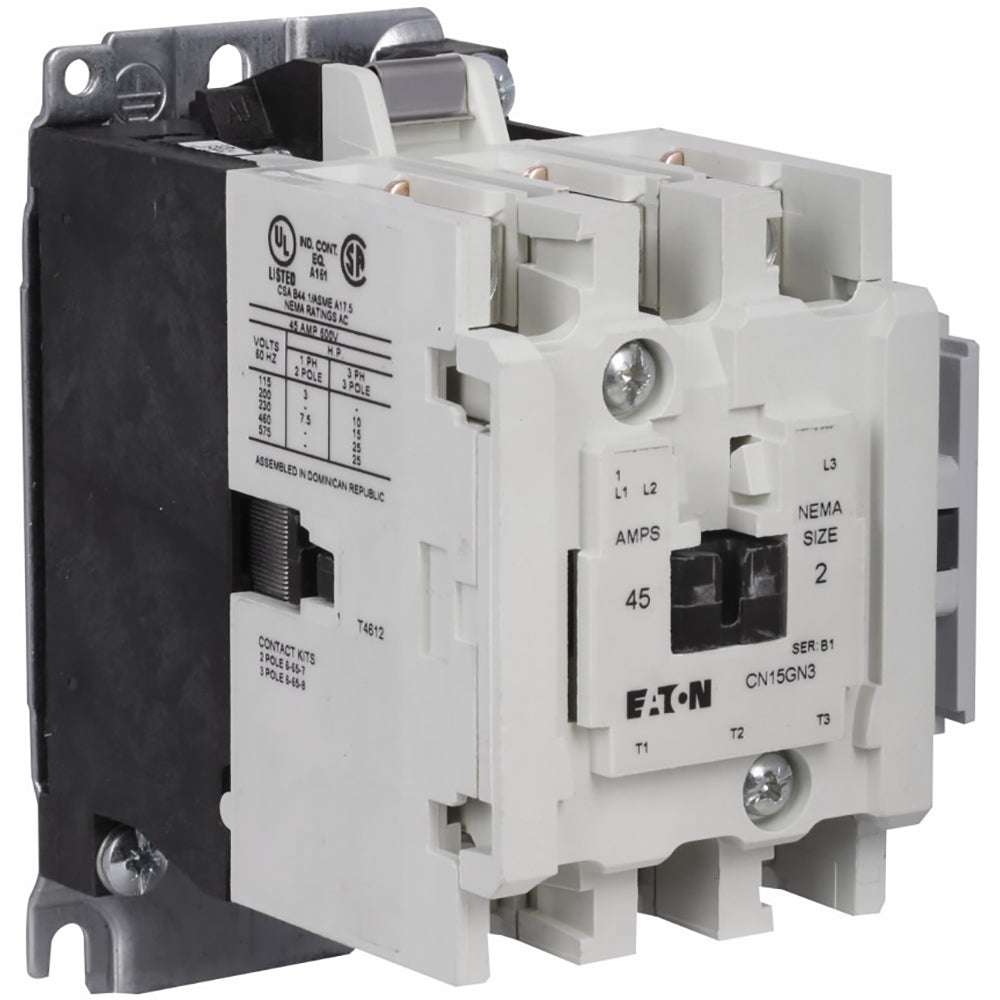

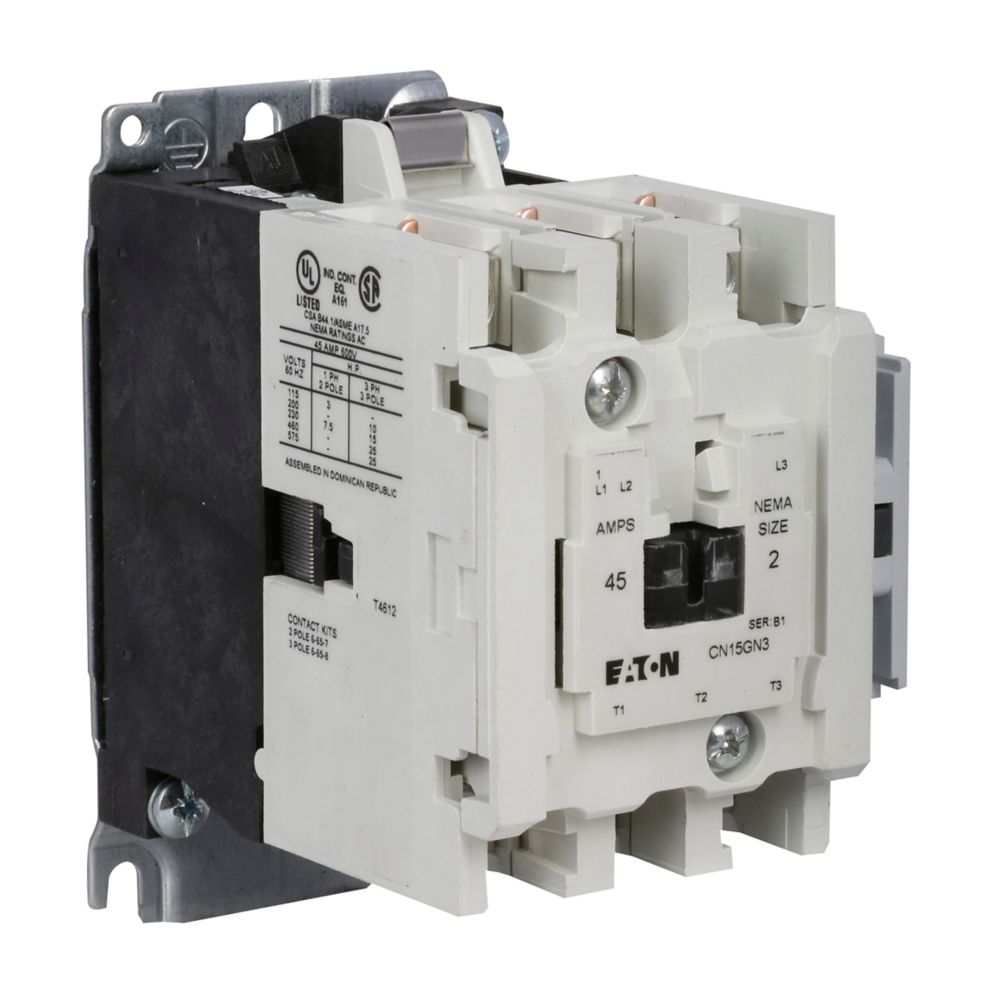

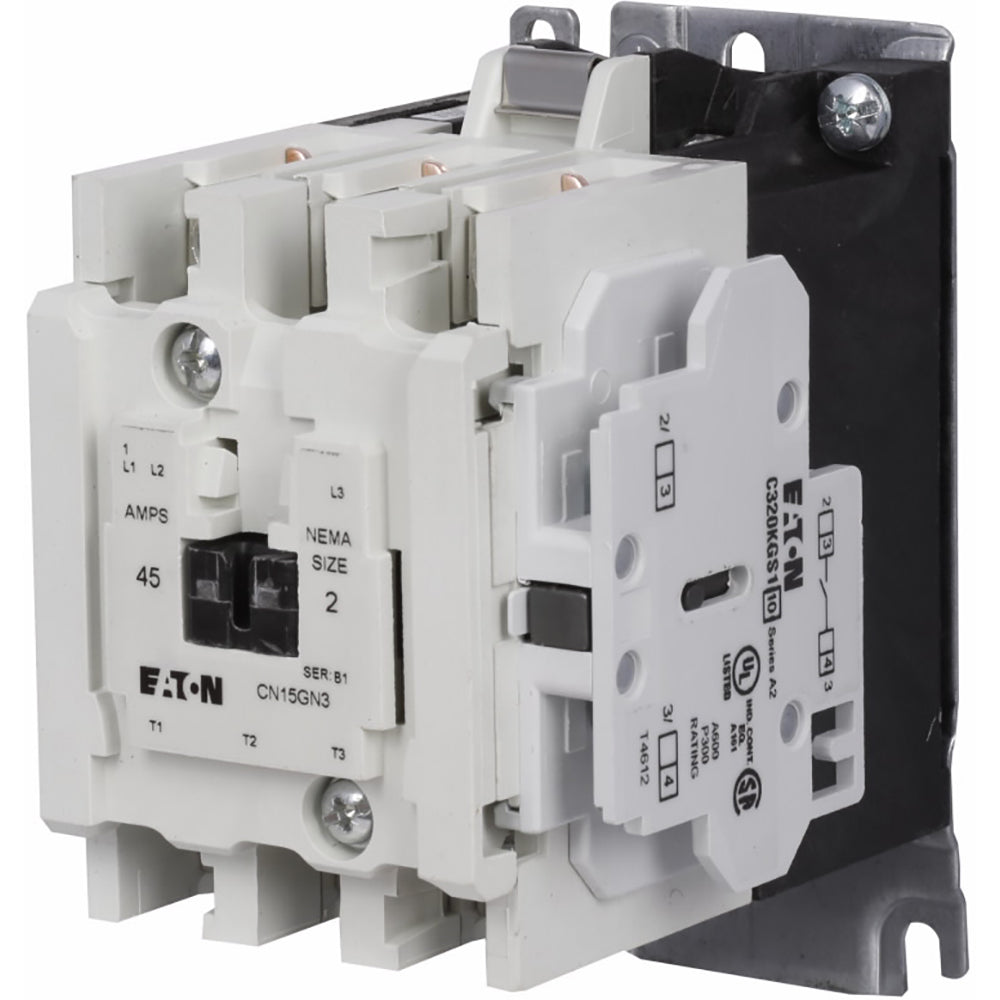

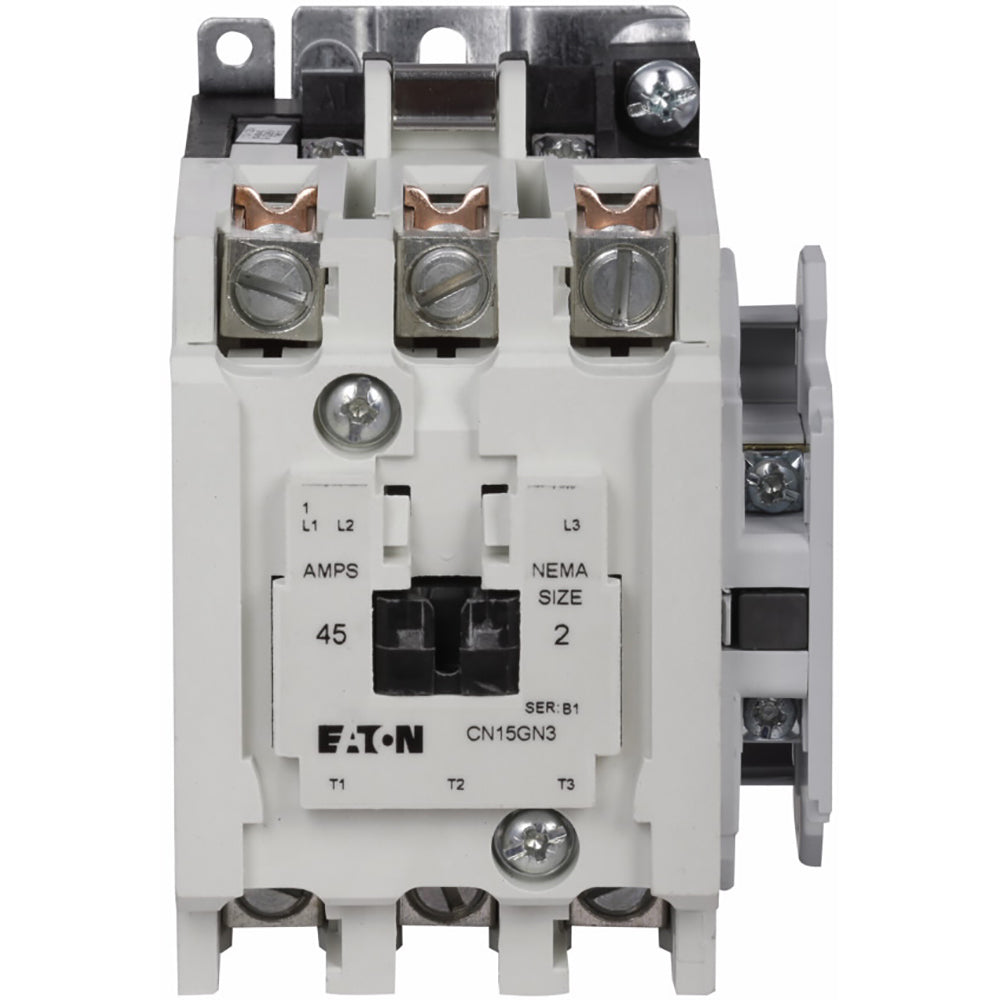

CN15GN3BB - Cutler Hammer Freedom Series 45A 600V 3 Pole Motor Control Contactor

CN15GN3BB

CN15GN3BB is a Cutler Hammer Freedom Series motor control contactor designed for reliable motor switching in industrial applications.CN15GN3BB features a 45 amp rating, 600V maximum voltage, and three poles, suitable for single-phase and three-phase motors. It supports horsepower ratings up to 25 HP at 480/600V and coil voltages of 220/240V AC. This non-reversing contactor is CSA certified and designed for use with running overcurrent protection and motor control equipment.

• Amperage: 45A
• Voltage: 600V maximum
• Poles: 3
• Horsepower Ratings: 3 HP @ 115V, 7.5 HP @ 230V, 10 HP @ 208V, 15 HP @ 240V, 25 HP @ 480/600V
• Coil Voltage: 220/240V AC
• Mounting Type: NEMA Freedom Series
• Interrupt Rating: Suitable for motor control applications
• Series/Frame: Freedom Series, Size 2
• Trip Unit: Non-Reversing
• Certifications: CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CN15GN3BB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CN15GN
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 10 hp HP @ 3 Phase - 240V 15 hp HP @ 3 Phase - 480V 25 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 240
• Full Load Amps : 45 A
• Coil Voltage Minimum : 220

Product Data

• UPC : 78211302682
• GTIN : 00782113026824
• Country of Origin : Dominican Republic
• Dimensions : 4.44 in x 5.05 in x 2.56 in (Length/Depth x Height x Width)
• Weight : 3.9
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, UL Listed
