Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
CMDLB3800T36W

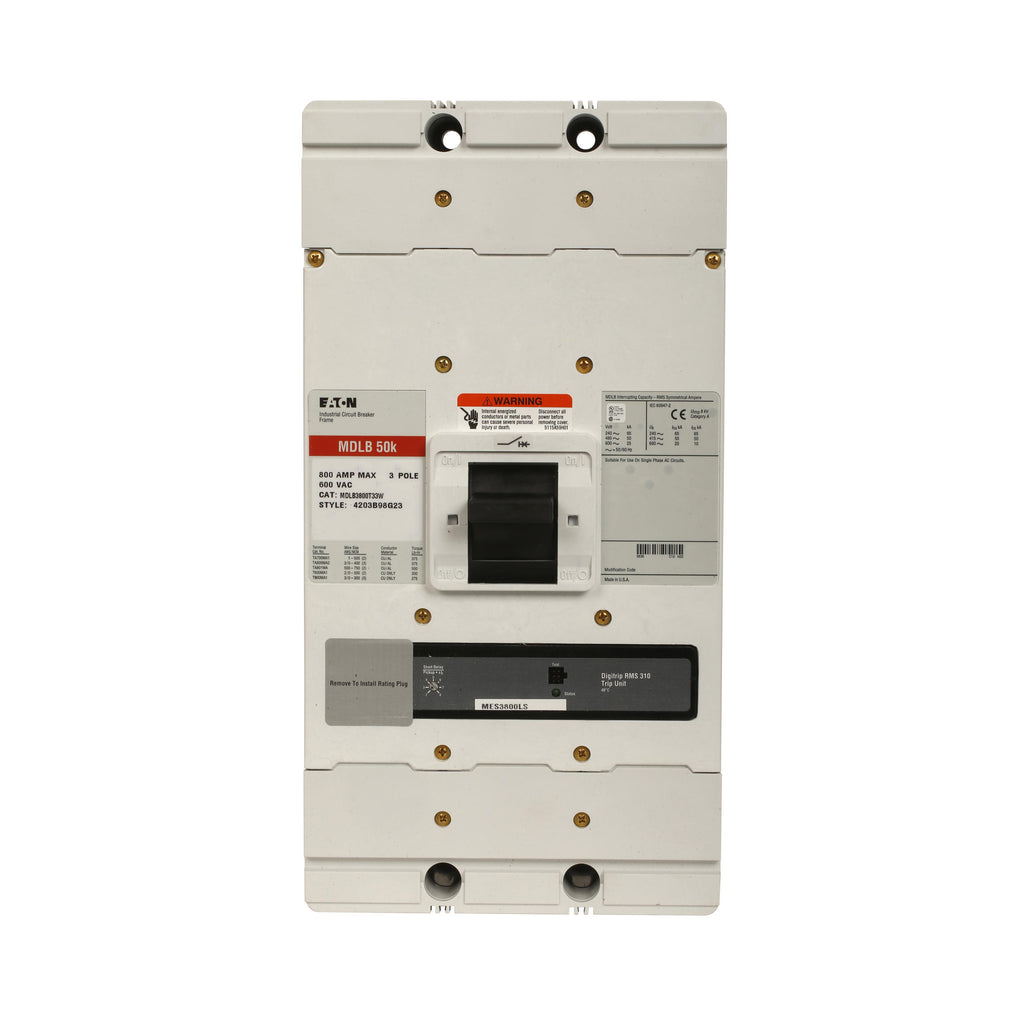

CMDLB3800T36W is an Eaton Series C M-frame molded case circuit breaker designed for industrial and commercial power distribution applications. This sealed breaker delivers reliable overcurrent protection with electronic LSIG trip functionality and is rated for 100% continuous duty operation. The three-pole configuration supports 800 amperes at 600 volts, making it suitable for heavy-duty electrical systems requiring robust fault protection and coordination with downstream devices. Without terminals for flexible installation options, this breaker integrates seamlessly into existing switchgear and distribution panels. Key Specifications
- Amperage Rating: 800 A
- Voltage Rating: 600 Vac
- Number of Poles: Three-pole
- Frame Size: M-frame
- Series: Series C
- Trip Type: Electronic LSIG
- Interrupt Rating: 50 kAIC at 480 Vac
- Sealed Breaker: Yes
- Terminals: Without
- Duty Rating: 100% rated
- Certifications: UL Listed
Specifications
- Part Number: CMDLB3800T36W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : CMDLB
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Frame Size : M Frame
- Protection : Solid State
Product Data
- Dimensions : 18" X 8" X 11"
- Weight : 34 lb
