CLDC3600F - Eaton 600A 600V 3-Pole Molded Case Circuit Breaker Frame L-Frame Series C

CLDC3600F

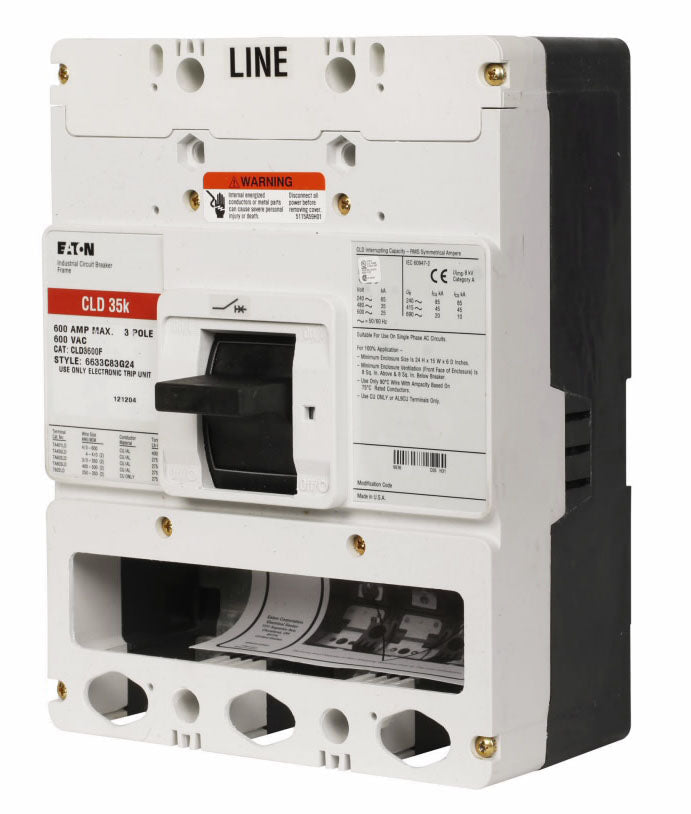

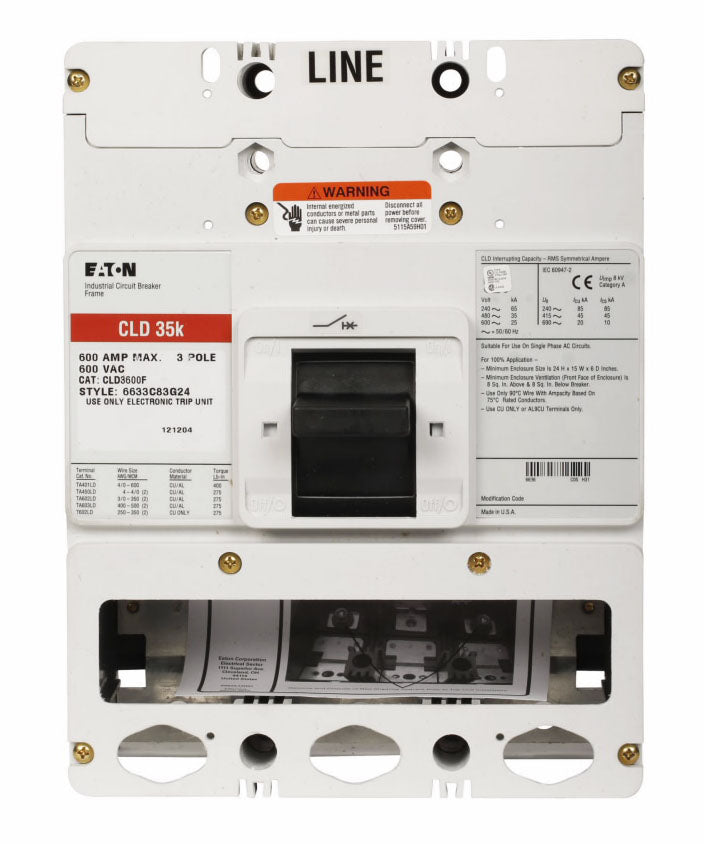

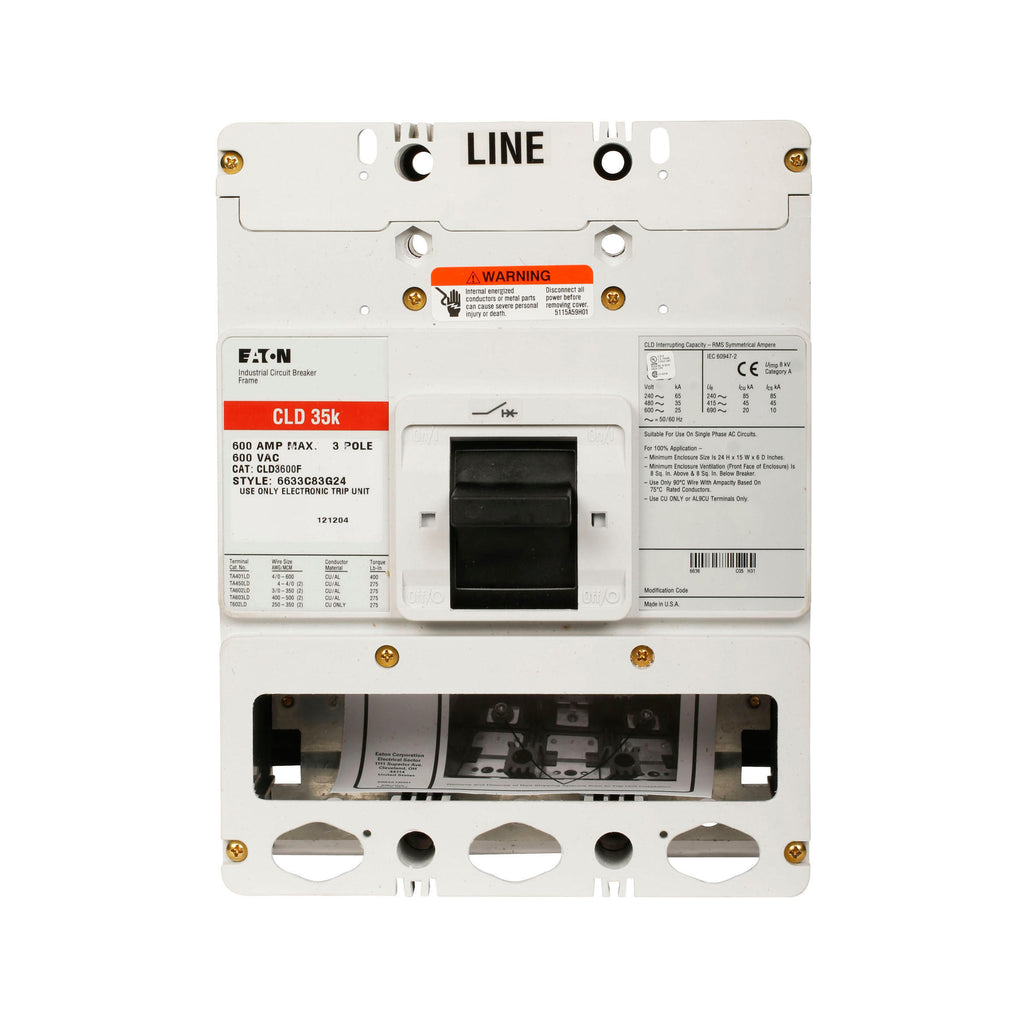

CLDC3600F is an Eaton Series C molded case circuit breaker frame designed for high-performance electrical protection.This 3-pole, L-frame breaker frame supports 600 amps at 600 Vac and 250 Vdc, featuring fixed thermal and fixed magnetic trip types. It is 100% rated for continuous operation and has an interrupt rating of 100 kAIC at 480 Vac and 200 kAIC at 240 Vac, suitable for 50/60 Hz frequency applications. The breaker is UL Listed and designed as a frame-only unit for use with compatible trip units.

Key Specifications
• Amperage Rating: 600 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: Three-pole
• Frame Type: L-Frame
• Series: Series C
• Interrupt Rating: 100 kAIC @ 480 Vac, 200 kAIC @ 240 Vac
• Trip Type: Fixed thermal, fixed magnetic (T186)
• Frequency Rating: 50 to 60 Hz
• Type: Frame only
• Certification: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.




Specifications

• Part Number: CLDC3600F
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : CLDC
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 786679561706
• GTIN : 00786679561706
• Country of Origin : United States
• Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : UL Listed
