CHT1515 - Cutler Hammer 15 Amp 1 Pole 120/240VAC CHT Series Plug-On Mount GFCI Circuit Breaker, 10kAIC, Thermal Magnetic Trip, UL/CSA

CHT1515

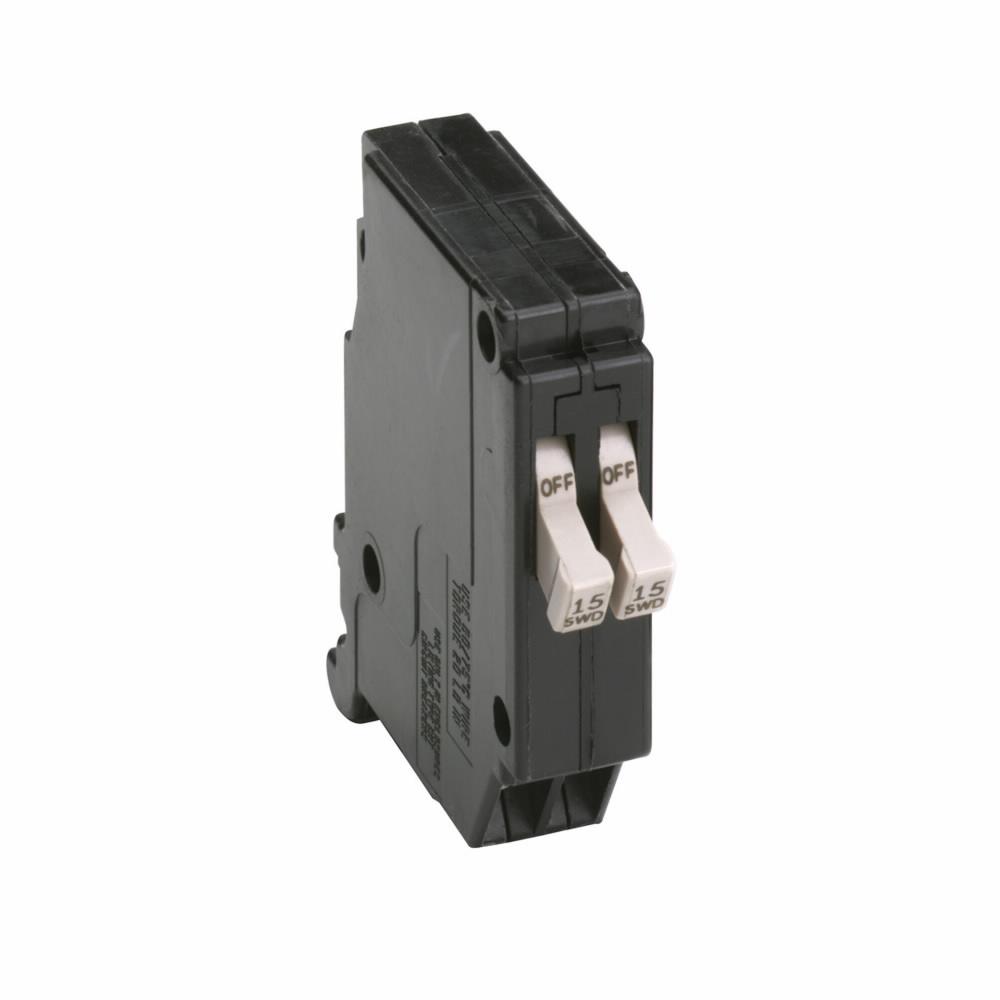

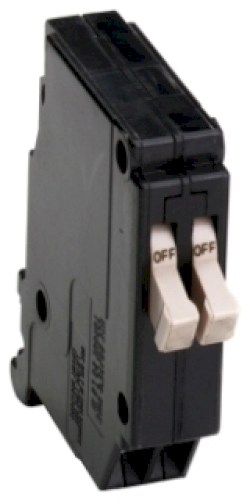

CHT1515 is a Cutler Hammer 15 Amp, 1 Pole, 120/240VAC, CHT Series plug-on mount ground fault circuit breaker designed for Type CH loadcenters.

This circuit breaker features a thermal magnetic trip unit for reliable protection against overloads and short circuits, with a 10kAIC interrupting rating at 120V. It is UL and CSA listed for safety and compliance, and supports copper or aluminum conductors from 14 to 8 AWG. The compact, plug-on design ensures easy installation in compatible panels.

Key Specifications
• Part Number: CHT1515
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 15 Amp
• Voltage: 120/240VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10kAIC at 120V
• Series/Frame: CHT
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
• Wire Size: 14-8 AWG (Cu/Al)
• Connection Type: Plug-In
• For Use With: Type CH Loadcenters

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHT1515
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CHT Series
• Type : CHT
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : CHT
• Protection : Thermal Magnetic

Product Data

• UPC : 782113631530
• GTIN : 00782113631530
• Country of Origin : Dominican Republic
• Dimensions : 0.7 in x 2.6 in x 3.2 in (Length/Depth x Height x Width)
• Weight : 0.25
• Panel Type : Type CH Loadcenters
• Standards : UL Listed
• Certification : UL Listed
• Wire Size : 14 To 8 AWG (Aluminum/Copper)
