2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Parts & Accessories
Description
CHSPT2SURGE

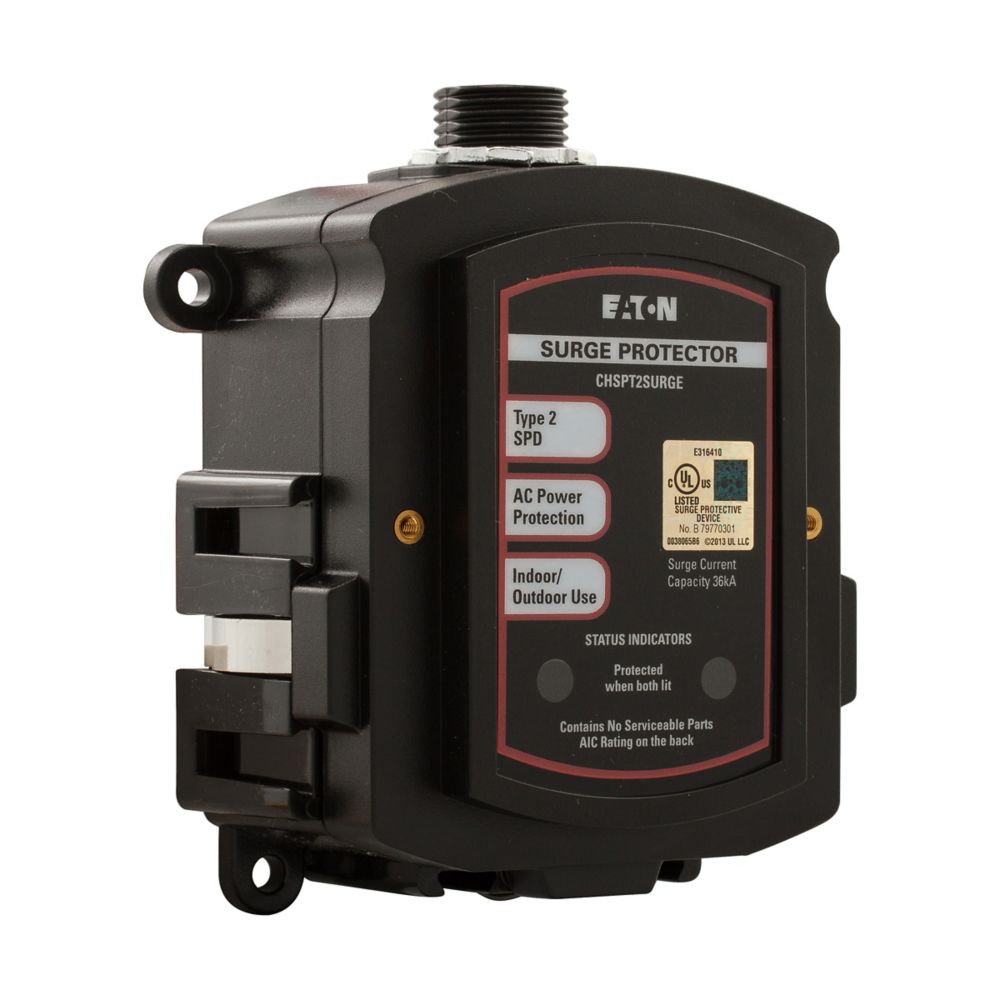

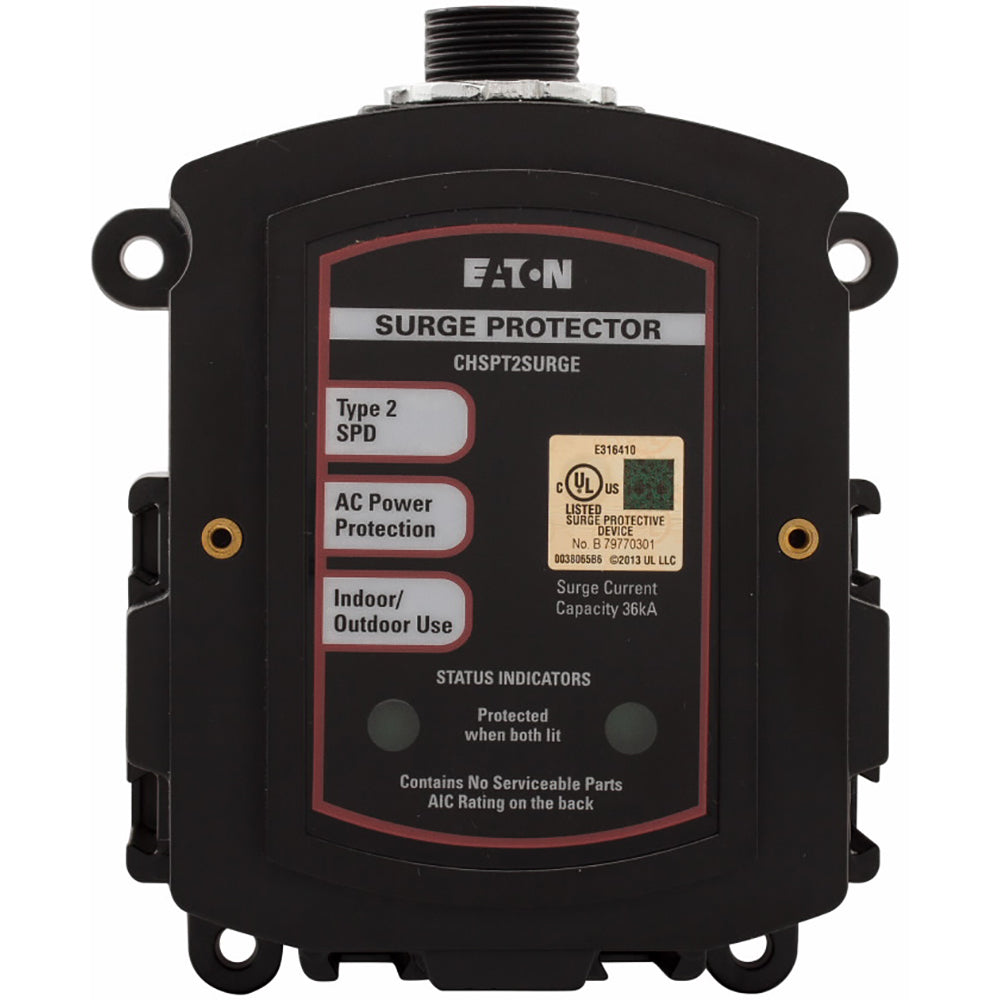

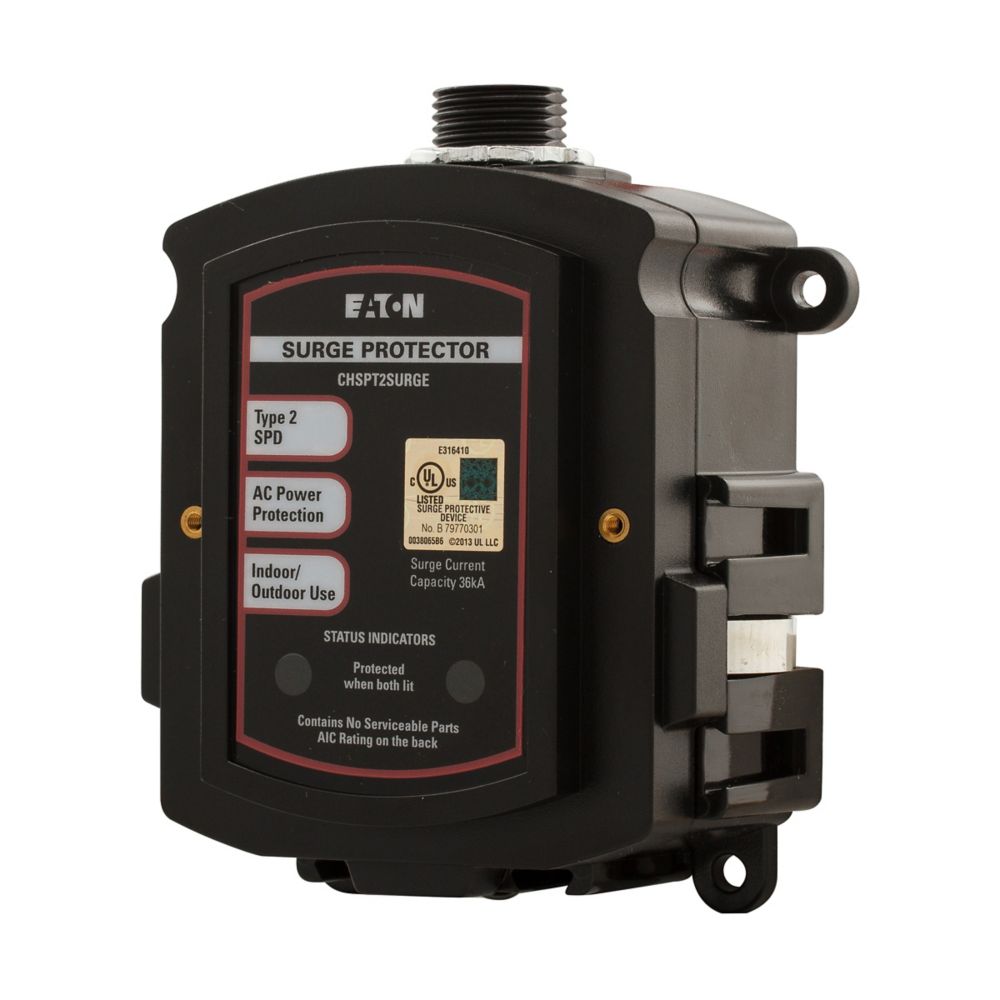

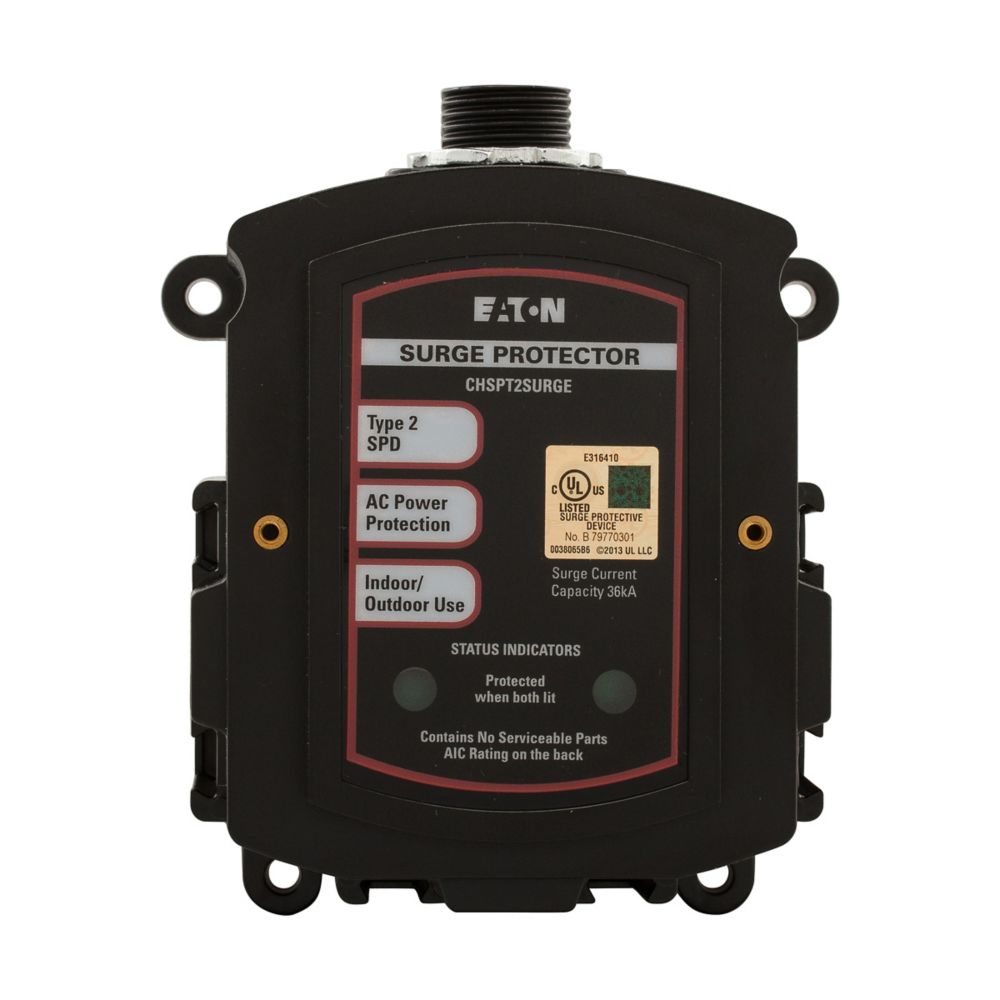

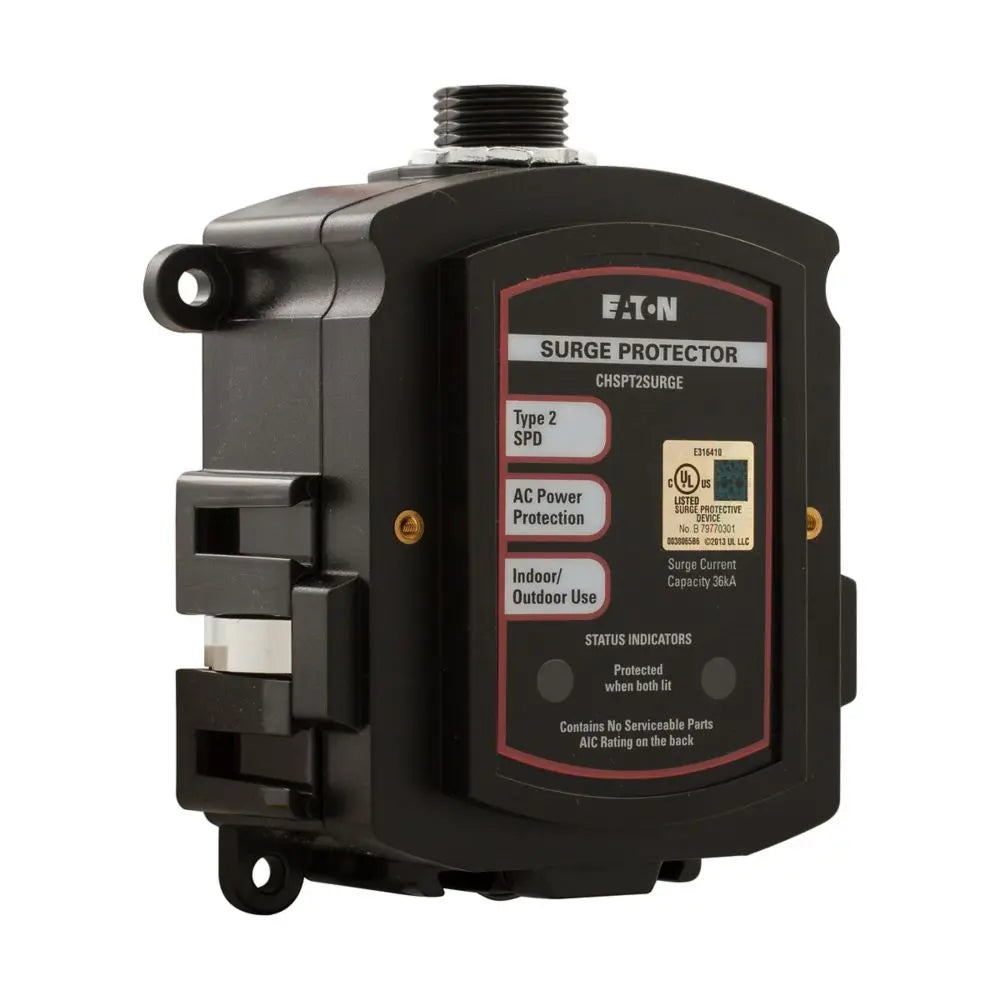

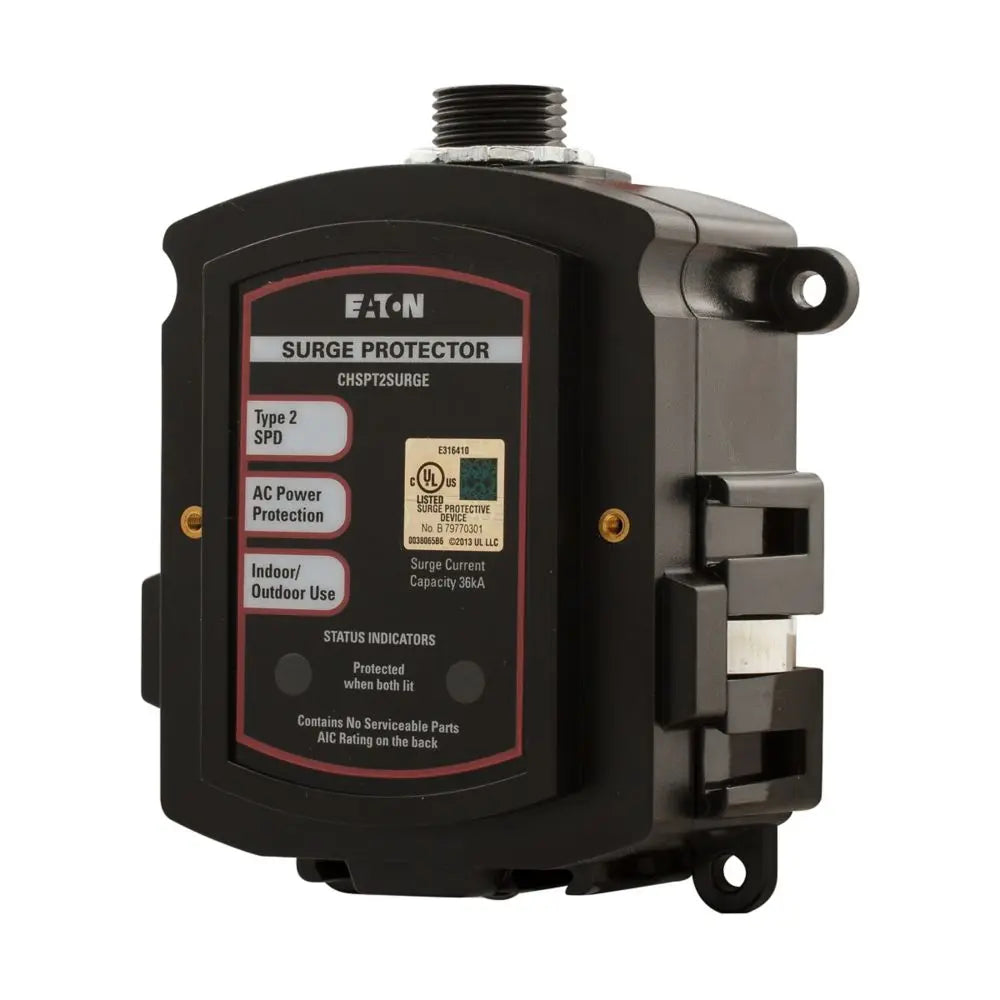

CHSPT2SURGE is an Eaton Type 2 whole-home surge protective device (SPD) designed for single-phase residential service entrance applications rated at 120/240 V. This unit features a nominal discharge current of 5 kA, a one-time surge capacity of 36 kA, and a short-circuit rating of 200 kAIC. It is built with a NEMA 4 enclosure for indoor or outdoor installation and complies with UL 1449 standards to protect sensitive electronic loads, appliances and smart devices from grid and lightning-induced surges.
- Manufacturer: Eaton
- Product Type: Surge Protective Device (Type 2, whole-home)
- Voltage Rating: 120/240 V AC, single-phase
- Nominal Discharge Current: 5 kA
- Surge Current Capacity: 36 kA (one-time event)
- Short-Circuit Rating: 200 kAIC
- Enclosure Rating: NEMA 4 (suitable for indoor/outdoor use)
- Standards Compliance: UL 1449, NEC® 230.67-type installations
Specifications
- Part Number: CHSPT2SURGE
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Section : Surge Protection
- Family : SPD Series
- Type : CH
- Voltage : 120/240VAC
- Amperage : 15
- Phase : 1
- Poles : 2
- Temp Rating : -13–158 °F (-25–70 °C)
- Compatible Frames : CH
Product Data
- UPC : 78668597128
- GTIN : 00786685971285
- Country of Origin : China
- Dimensions : 7.5 in x 2 in x 5 in (Length/Depth x Height x Width)
- Weight : 0.9
- Certification : UL, cUL
- Wire Size : AWG 14
