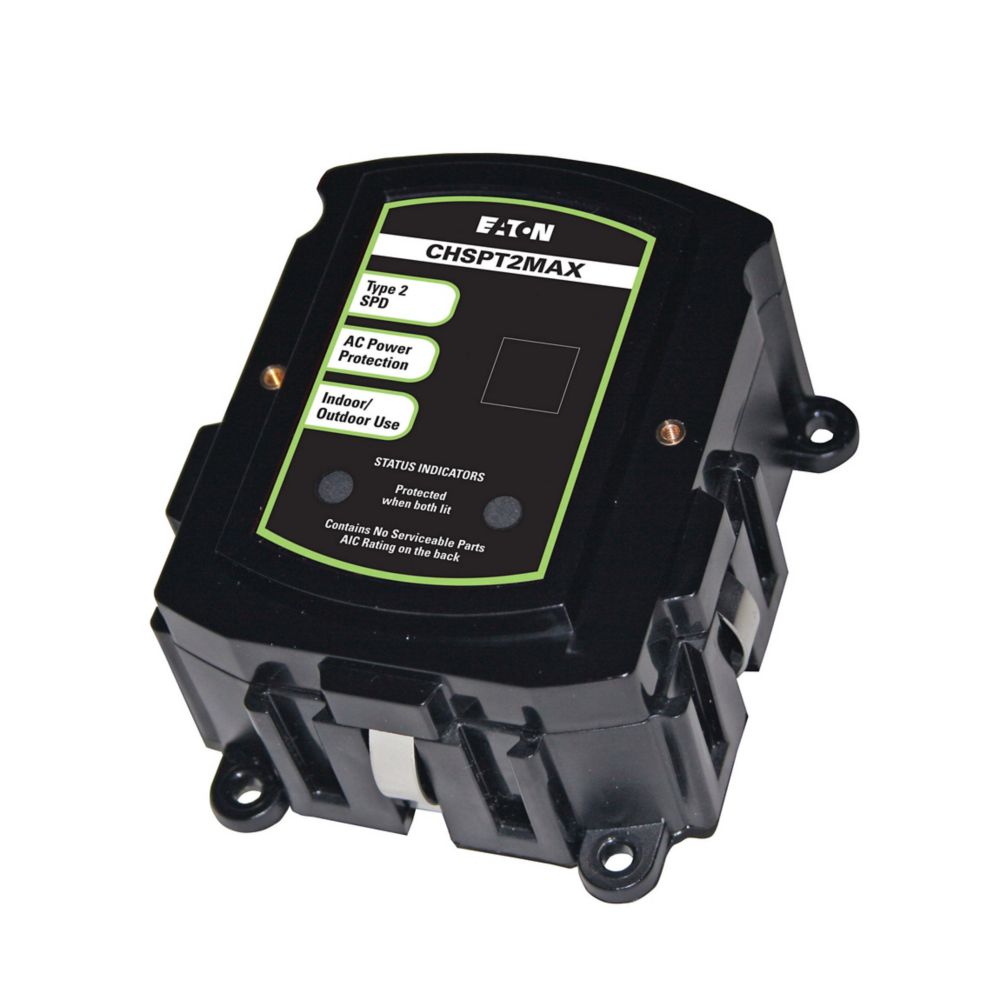

CHSPT2MAX - Eaton 120/240V 1-Phase 2-Pole Surge Protection Device NEMA 4 Enclosure 200kAIC Interrupt Rating

CHSPT2MAX

CHSPT2MAX is a Type 2 CHSP service entrance surge protection device designed for 120/240V single-phase electrical systems with a 2-pole configuration.CHSPT2MAX provides robust surge protection with a nominal discharge current of 10 kA and a one-time surge current rating of 72 kA. It features a NEMA 4 enclosure suitable for harsh environments and has an interrupt rating of 200 kAIC. The device operates at 60 Hz frequency and meets UL 1449 certification standards. It protects against voltage surges up to 150V L-N, 300V L-L, 600V L-N, 1000V L-L, 800V N-G, and 600V L-G, making it ideal for commercial and industrial applications.

Key Specifications
• Voltage Rating: 120/240V line, 230/400V Wye (4W+G)
• Phase: Single-phase
• Poles: 2
• Nominal Discharge Current: 10 kA
• Surge Current Rating: 72 kA
• Interrupt Rating: 200 kAIC
• Enclosure: NEMA 4
• Frequency: 60 Hz
• Certifications: UL 1449
• Operating Temperature: -40 to 50 °C
• Protection Voltages: 150V L-N, 300V L-L, 600V L-N, 1000V L-L, 800V N-G, 600V L-G
• Mounting Type: Service Entrance

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHSPT2MAX
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Surge Protection
• Family : CH Series
• Type : CHSPT
• Voltage : 230/400 Wye (4W+G)
• Phase : 1
• Poles : 2
• AIC rating : 200 kAIC
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : 600V L-N, 1000V L-L, 800V N-G, 600V L-G
• Compatible Frames : CH

Product Data

• UPC : 78668543687
• GTIN : 00786685436876
• Dimensions : 2.5 in x 10 in x 3 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : UL
