CHSA - Cutler Hammer 120/240V Single-Phase 1-Pole Plug-On Surge Protection Device Type 2 SPD

CHSA

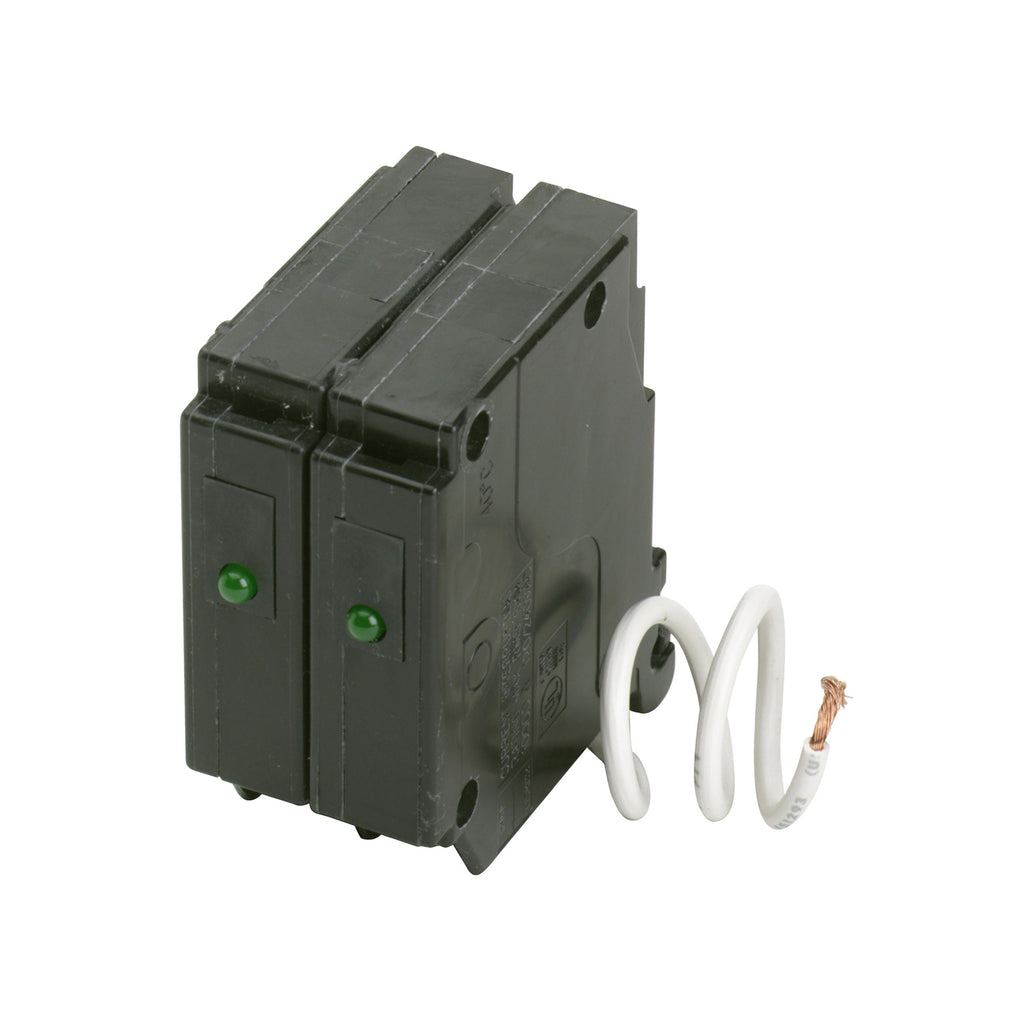

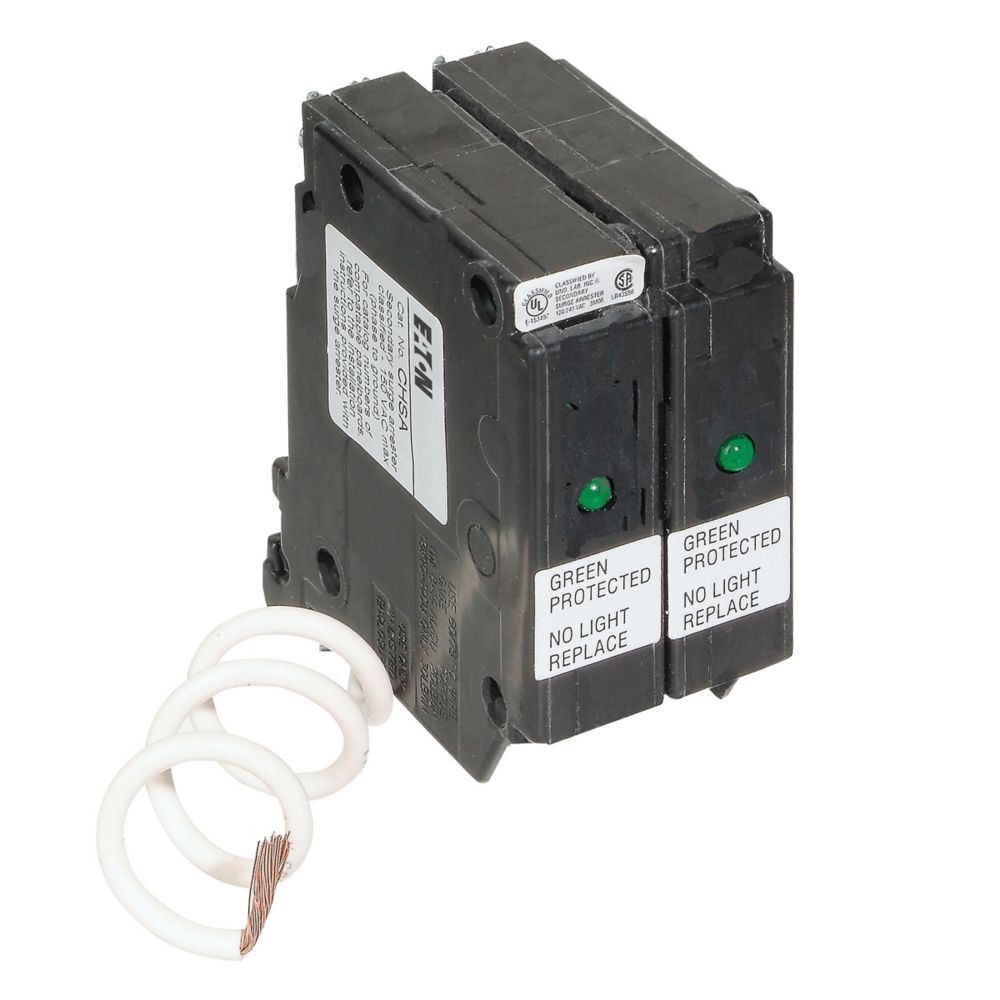

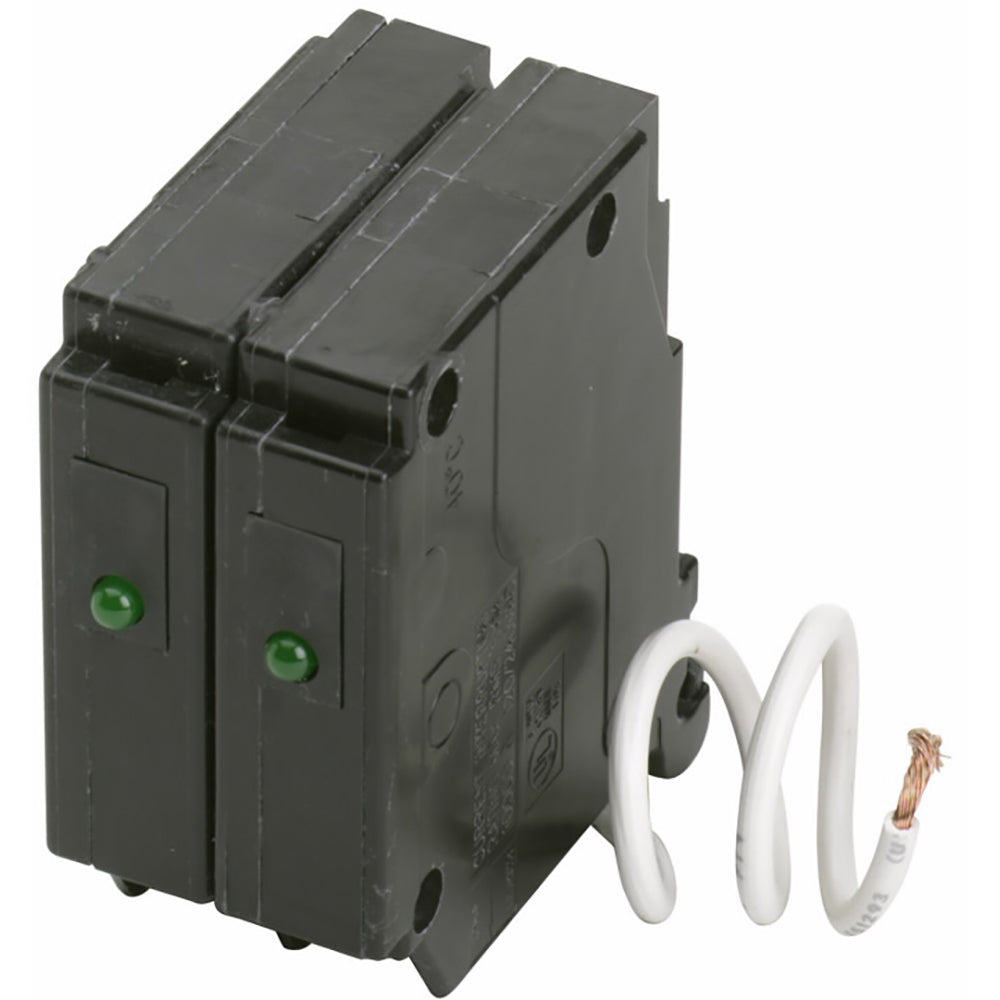

CHSA is a Cutler Hammer Type CH plug-on module surge protection device designed for single-phase electrical systems.This surge protective device (SPD) provides Type 2 surge protection with a nominal discharge current of 3kA, a one-time surge current rating of 18kA, and can withstand short-circuit currents up to 10kA. It is rated for 120/240 volts, mounts via plug-on method, and is UL 1449 certified for safety and performance.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: CHSA
• Voltage Rating: 120/240 V AC
• Phase: Single-phase
• Poles: 1 Pole
• Mounting Type: Plug-on
• Nominal Discharge Current: 3,000 Amps
• Surge Current Rating (One-time): 18,000 Amps
• Short Circuit Rating: 10,000 Amps
• Frequency: 60 Hz
• Certifications: UL 1449
• Dimensions: 2.5 in H x 0.75 in D x 0.51 in W
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CHSA
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Surge Protection
• Family : CH Series
• Type : CHSA



Product Data

• UPC : 782113099361
• GTIN : 00782113099361
• Dimensions : 0.75 in x 2.5 in x 0.51 in (Length/Depth x Height x Width)
• Weight : 0.51
