CHOMT2020240 - Schneider Electric Homeline Quad Tandem Circuit Breaker 20A/40A, 120/240V, 4 Pole, 10kA Interrupt Rating

CHOMT2020240

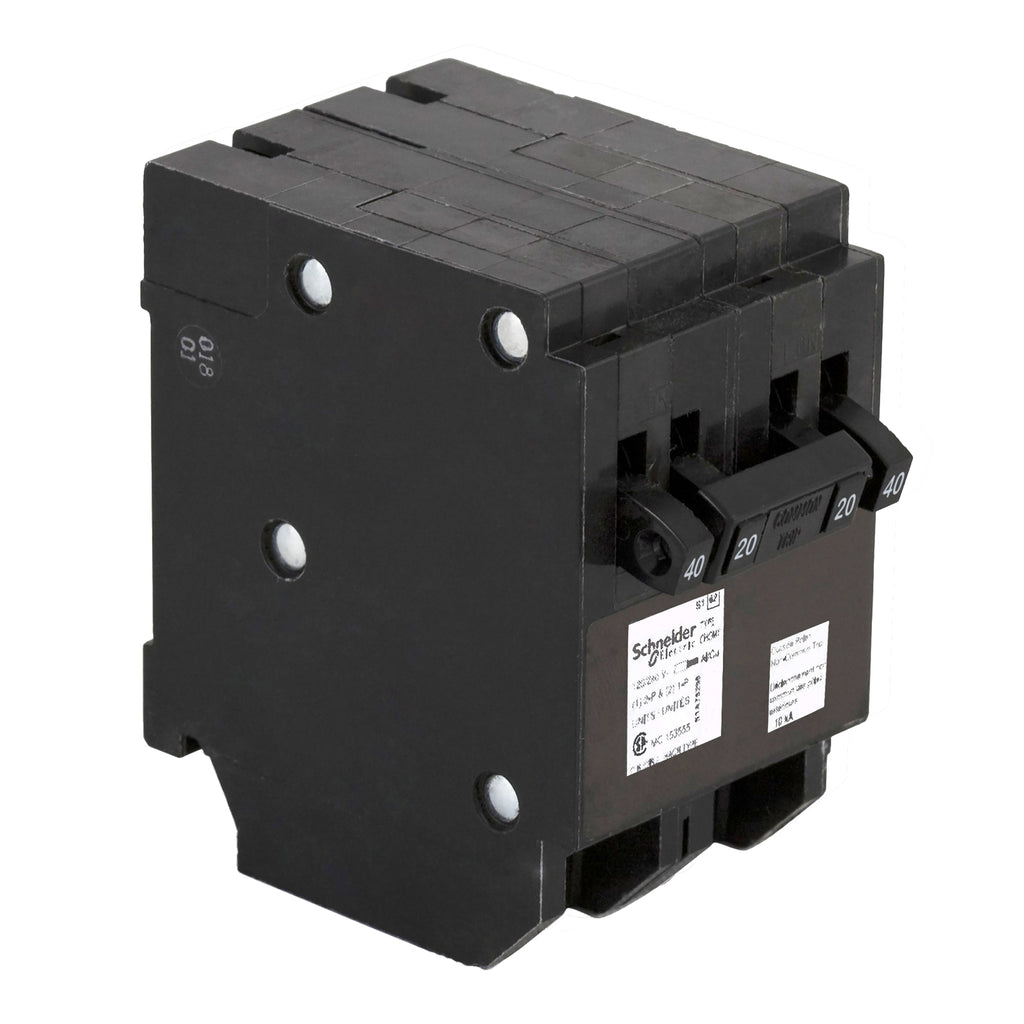

CHOMT2020240 is a Schneider Electric Homeline quad tandem circuit breaker designed for residential and light commercial electrical panels.

This breaker features two 1-pole 20A breakers and one 2-pole 40A breaker, providing a compact solution for multiple circuits in a single unit. It is rated for 120/240 volts AC, 1 phase, with a 10,000 amp interrupting capacity at 240V. The device uses thermal magnetic trip protection and a plug-in mounting design compatible with Homeline load centers. Certified by UL for safety and performance, it is suitable for Canadian and US markets.

• Type: Homeline HOMT series
• Configuration: Quad tandem (2 x 1-pole 20A, 1 x 2-pole 40A)
• Voltage Rating: 120/240 VAC
• Amperage: 20A and 40A breakers
• Poles: 4 poles total
• Interrupt Rating: 10kA at 240V
• Trip Unit: Thermal magnetic
• Mounting Type: Plug-in
• Phase: Single phase
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOMT2020240
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : HOMT
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
  1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.85
• Certification : CSA
• Wire Size : AWG 12...AWG 6 aluminum/copper
