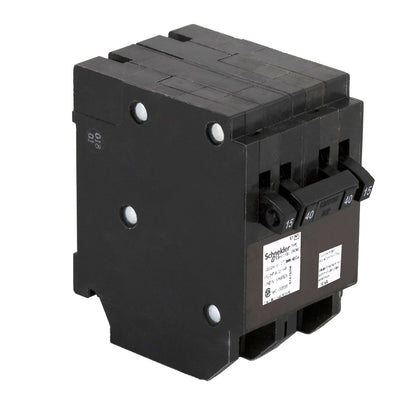

CHOMT1515240 - Schneider Electric Homeline 40A 240V 4-Pole Quad Tandem Circuit Breaker 10kA Plug-In HACR

CHOMT1515240

CHOMT1515240 is a Schneider Electric Homeline quad tandem circuit breaker designed for reliable circuit protection in residential and light commercial applications.

This 4-pole breaker features a 40 amp two-pole breaker combined with two 15 amp single-pole breakers, rated for 120/240 VAC operation. It has a 10 kA interrupting rating and a plug-in mounting style for easy installation in Homeline load centers. The breaker is HACR rated and provides thermal magnetic protection with long-time and instantaneous trip functions. It accepts copper and aluminum wiring within specified gauge ranges and is UL listed for safety compliance.

Key Specifications
• Manufacturer: Schneider Electric
• Series: Homeline
• Poles: 4 (2-pole at 40A, 2 single-pole at 15A each)
• Voltage Rating: 120/240 VAC
• Amperage: 40A (2-pole), 15A (single-pole)
• Interrupt Rating: 10 kA
• Mounting Type: Plug-in
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• HACR Rated
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOMT1515240
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : HOMT
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 1
  2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.84
• Certification : CSA
• Wire Size : AWG 12...AWG 6 aluminum/copper
