CHOMT1515220 - Schneider Electric Homeline Quad Tandem 15/20A 120/240V Plug-In

CHOMT1515220

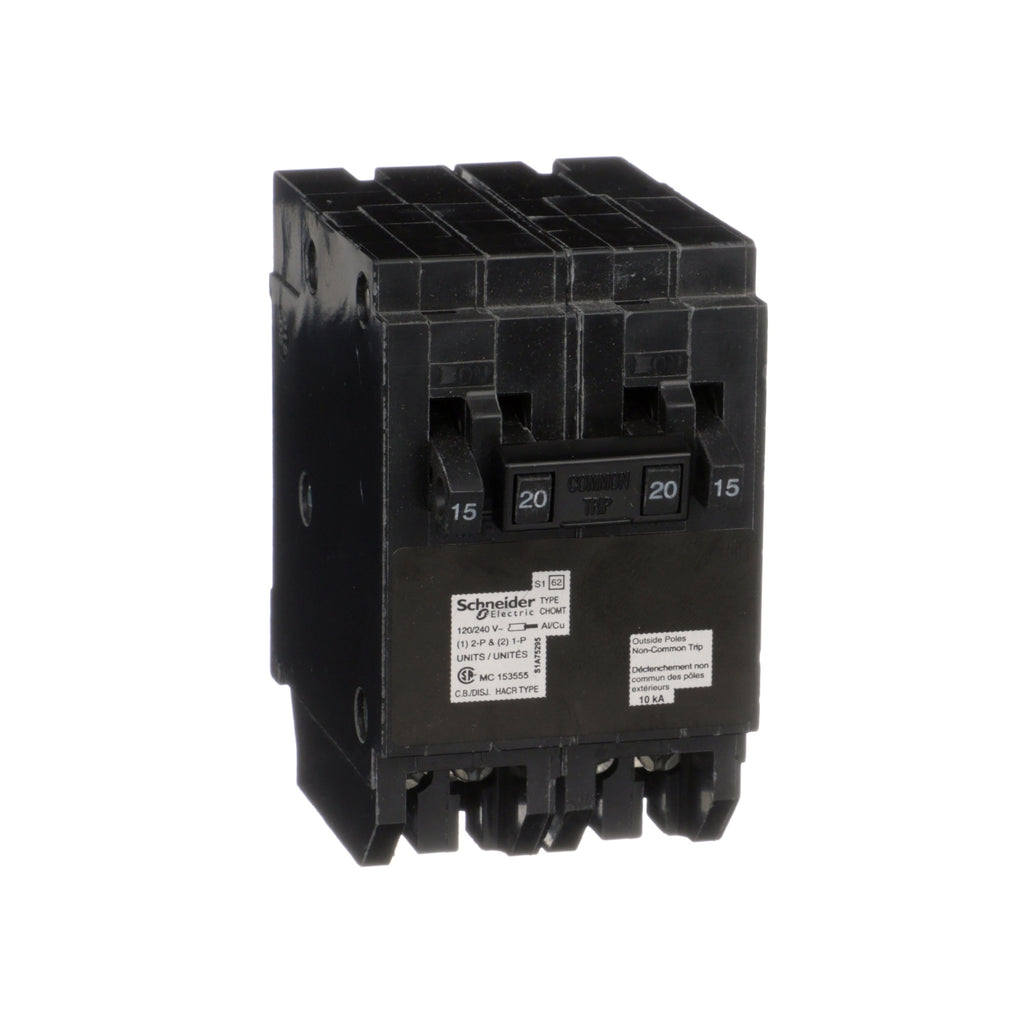

CHOMT1515220 is a Schneider Electric Homeline quad tandem circuit breaker designed for plug-in installation in Homeline load centers, providing reliable circuit protection with a 10 kA interrupt rating.

This quad tandem breaker occupies two pole spaces and combines a 2-pole breaker rated at 20A with two single-pole breakers each rated at 15A, all at 120/240 VAC. The breaker features thermal-magnetic protection with long-time and instantaneous functions, HACR rating for superior performance, and accepts 14 AWG to 8 AWG copper or aluminum wire. UL Listed and designed for fast installation and superior circuit protection in residential applications.

• Part Number: CHOMT1515220
• Manufacturer: Schneider Electric Homeline
• Amperage: 15A, 20A, 15A (quad configuration)
• Voltage: 120/240 VAC
• Poles: 4 (2-pole and 2 single-pole)
• Mounting Type: Plug-In
• Interrupt Rating: 10 kA at 240V
• Protection Type: Thermal Magnetic
• Wire Gauge: 14 AWG to 8 AWG
• Certifications: UL Listed, HACR Rated
• Dimensions: 3.13 inches H x 2.00 inches W x 2.98 inches D
• Weight: 0.85 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOMT1515220
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : HOMT
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
  1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.84
• Certification : CSA
• Wire Size : AWG 14...AWG 8 aluminum/copper
