CHOMT1515230 - Schneider Electric Homeline Quad Tandem 15A/30A 120/240VAC 10kA

CHOMT1515230

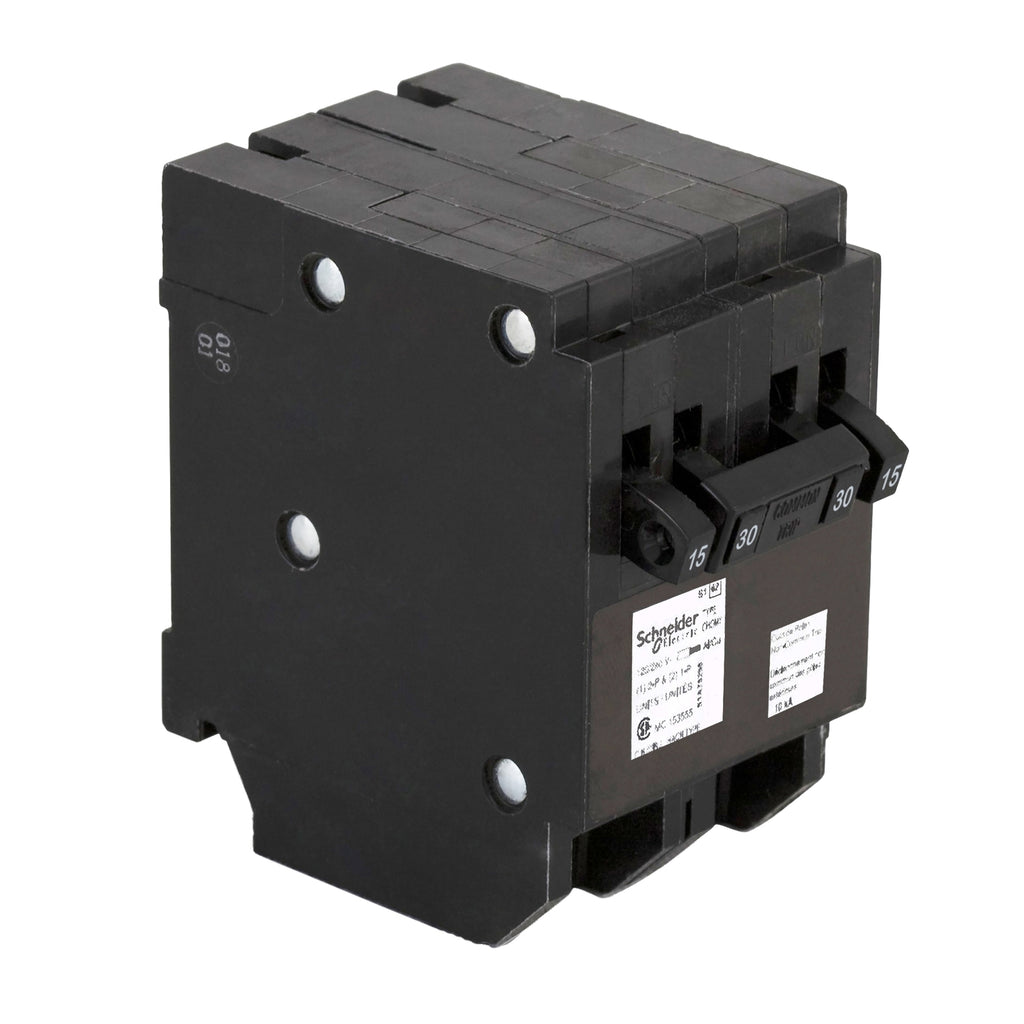

CHOMT1515230 is a Homeline quad tandem miniature circuit breaker designed for plug-in installation in Homeline load centers, providing reliable circuit protection with a 10 kA interrupt rating at 120/240 VAC.

This quad tandem breaker occupies two pole spaces and combines one 2-pole breaker rated 30A with two single-pole breakers each rated 15A. The breaker features thermal-magnetic protection, is HACR and Switching Duty rated, and accepts 14 AWG to 8 AWG copper or aluminum conductors. Engineered for fast installation and superior performance, it meets UL listing standards.

• Part Number: CHOMT1515230
• Manufacturer: Schneider Electric Homeline
• Configuration: 2 x 1-pole at 15A, 1 x 2-pole at 30A
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA
• Mounting: Plug-In
• Protection Type: Thermal Magnetic
• Wire Size: 14 AWG to 8 AWG
• Certifications: UL Listed, HACR Rated
• Dimensions: 3.13 inches H x 2.00 inches W x 2.98 inches D
• Weight: 0.85 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOMT1515230
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOMT
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
  1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 662643909067
• GTIN : 00662643909067
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.85
• Certification : CSA
• Wire Size : AWG 14...AWG 8 aluminum/copper
