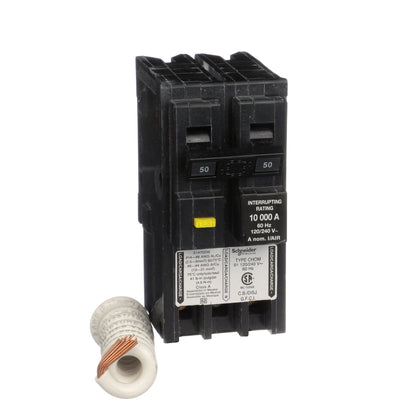

CHOM250GFI - Schneider Electric 50A 2-Pole 120/240V GFCI Circuit Breaker Homeline Plug-In 10kA HACR

CHOM250GFI

CHOM250GFI is a Schneider Electric Homeline 50 Amp 2-pole GFCI circuit breaker designed for reliable ground fault and overload protection.This Homeline miniature circuit breaker features a plug-in mounting type compatible with Homeline load centers. It provides 120/240 VAC voltage rating, 10 kA interrupting capacity, and HACR rating for HVAC applications. The breaker offers Class A ground fault protection with a trip threshold of 6 mA, thermal magnetic trip unit, and screw clamp terminals supporting wire sizes from 14 to 8 AWG copper or aluminum. It is UL listed and designed for fast installation and superior circuit protection.

• Manufacturer: Schneider Electric
• Series/Frame: Homeline
• Amperage: 50 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Plug-in
• Interrupt Rating: 10 kA
• Trip Unit: Thermal Magnetic with Class A GFCI (6 mA)
• Certifications: UL Listed, HACR Rated
• Wire Size Range: 14-8 AWG copper/aluminum
• Dimensions (HxWxD): 3.13 x 1.0 x 2.98 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOM250GFI
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 1.21
• Certification : CSA
• Wire Size : AWG 12...AWG 4 aluminum/copper
