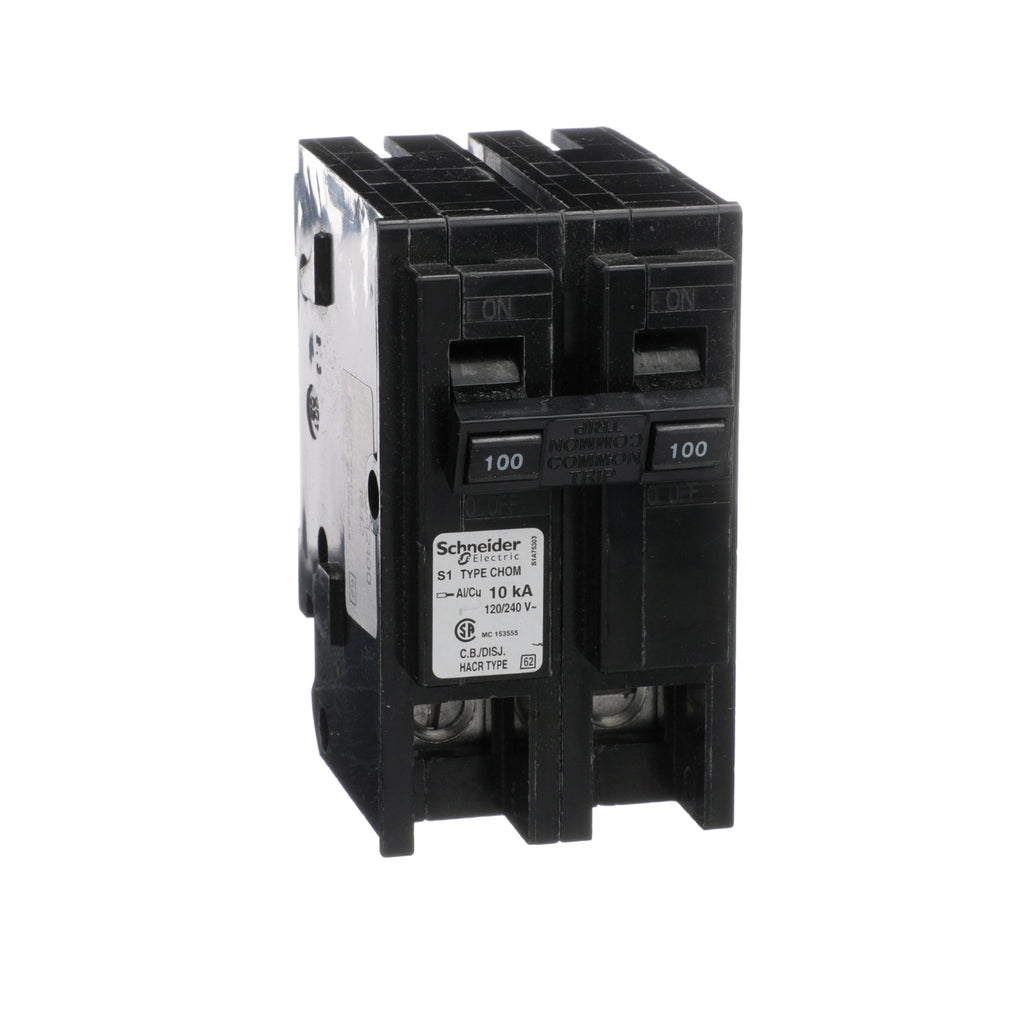

CHOM2100 - Schneider Electric Homeline 100A 2-Pole 120/240VAC Plug-In Circuit Breaker

CHOM2100

CHOM2100 is a 2-pole plug-in circuit breaker from Schneider Electric's Homeline series, rated 100A at 120/240VAC with 10kA breaking capacity for reliable circuit protection in residential and light commercial applications.

This miniature circuit breaker is engineered for fast installation into Homeline load centers and features thermal-magnetic protection with standard trip characteristics. The plug-in connection design allows for quick mounting and replacement. The clamp terminal accepts wire sizes from 4 AWG to 2/0 AWG in copper or aluminum, accommodating dual-wire connections. UL Listed and CSA approved for North American installations.

• Part Number: CHOM2100
• Manufacturer: Schneider Electric (Square D)
• Amperage Rating: 100A
• Voltage: 120/240VAC
• Poles: 2-Pole (Double Pole)
• Mounting Type: Plug-In
• Interrupt Rating: 10kA at 240V
• Protection Type: Thermal-Magnetic
• Wire Compatibility: 4 AWG to 2/0 AWG copper or aluminum
• Certifications: UL Listed, CSA Approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOM2100
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : HOM
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.85
• Certification : CSA
• Wire Size : AWG 4...AWG 2/0 aluminum/copper
