Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
CHOM220GFI

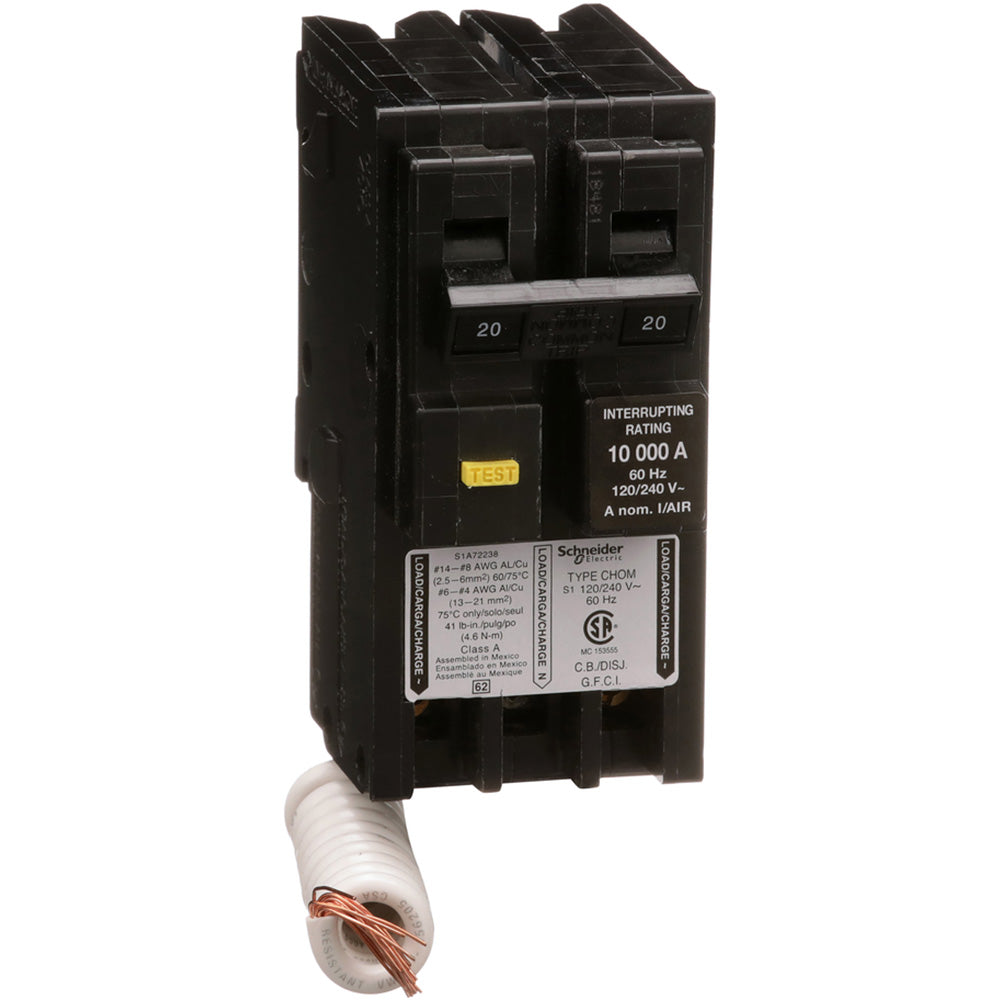

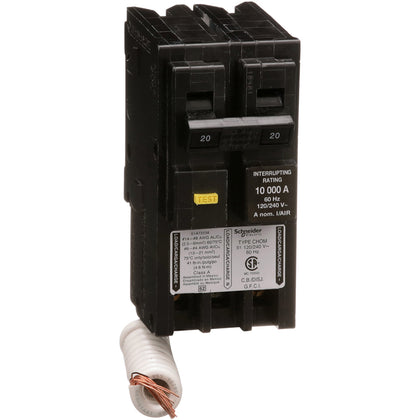

CHOM220GFI is a Schneider Electric Homeline 20 Amp 2 Pole GFCI circuit breaker designed for reliable protection in residential and light commercial applications. This plug-in style breaker provides ground fault protection for 120/240 VAC circuits and is suitable for HACR-rated loads. The CHOM220GFI features a 10 kA interrupt rating and is built for use in Homeline load centers. It offers Class A ground fault protection at 6 mA and is designed for easy installation with a screw clamp terminal. This breaker is UL listed and CSA approved, ensuring compliance with North American safety standards.
- 20 Amp rated current
- 2 Pole configuration
- 120/240 VAC system voltage
- Plug-in mounting type
- 10 kA short-circuit current rating
- Homeline series
- Ground fault protection Class A 6 mA
- HACR rated
- UL listed
- CSA approved
Specifications
- Part Number: CHOM220GFI
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : 104 °F (40 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901896999
- GTIN : 00785902000000
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 1.16
- Certification : CSA
- Wire Size : AWG 12...AWG 4 aluminum/copper
