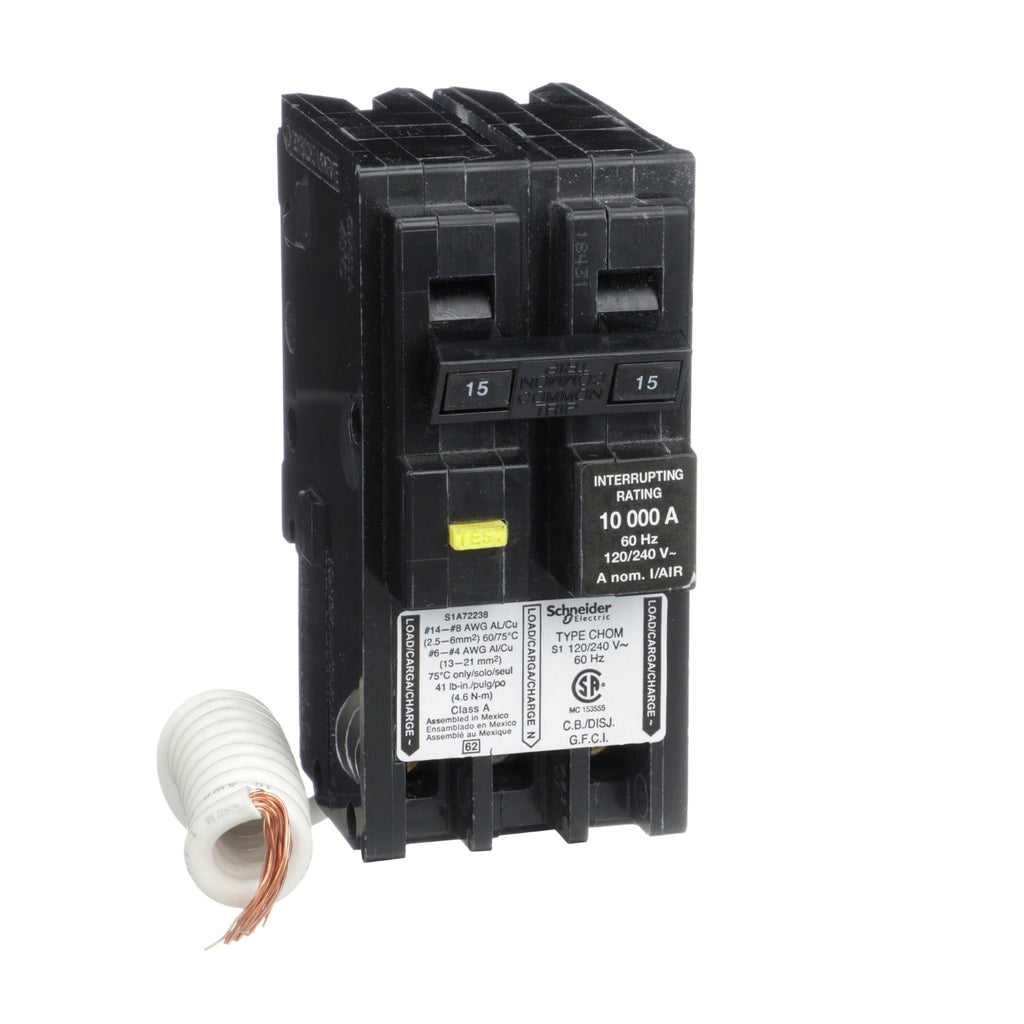

CHOM215GFI - Schneider Electric Homeline 15A 2-Pole 240V GFCI Circuit Breaker

CHOM215GFI

CHOM215GFI is a mini circuit breaker from Schneider Electric's Homeline Canadian series, designed for ground fault protection in residential and light commercial applications. This plug-in mounted breaker combines standard overcurrent protection with Class A ground fault interrupt capability, making it ideal for circuits requiring both overload and ground fault detection. The unit features screw clamp terminals for secure connections and is HACR rated for reliable performance in various installation environments.

• Amperage Rating: 15A
• Voltage: 120/240VAC
• Poles: 2-Pole (Double Pole)
• Mounting Type: Plug-In
• Interrupt Rating (AIC): 10kA
• Ground Fault Class: Class A
• Trip Function: Ground Fault Interrupt (GFI) at 5mA
• Terminal Type: Screw Clamp
• HACR Rated: Yes
• Certifications: UL, CSA Approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOM215GFI
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901896982
• Country of Origin : United States
• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 1.15
• Certification : CSA
• Wire Size : AWG 12...AWG 4 aluminum/copper
