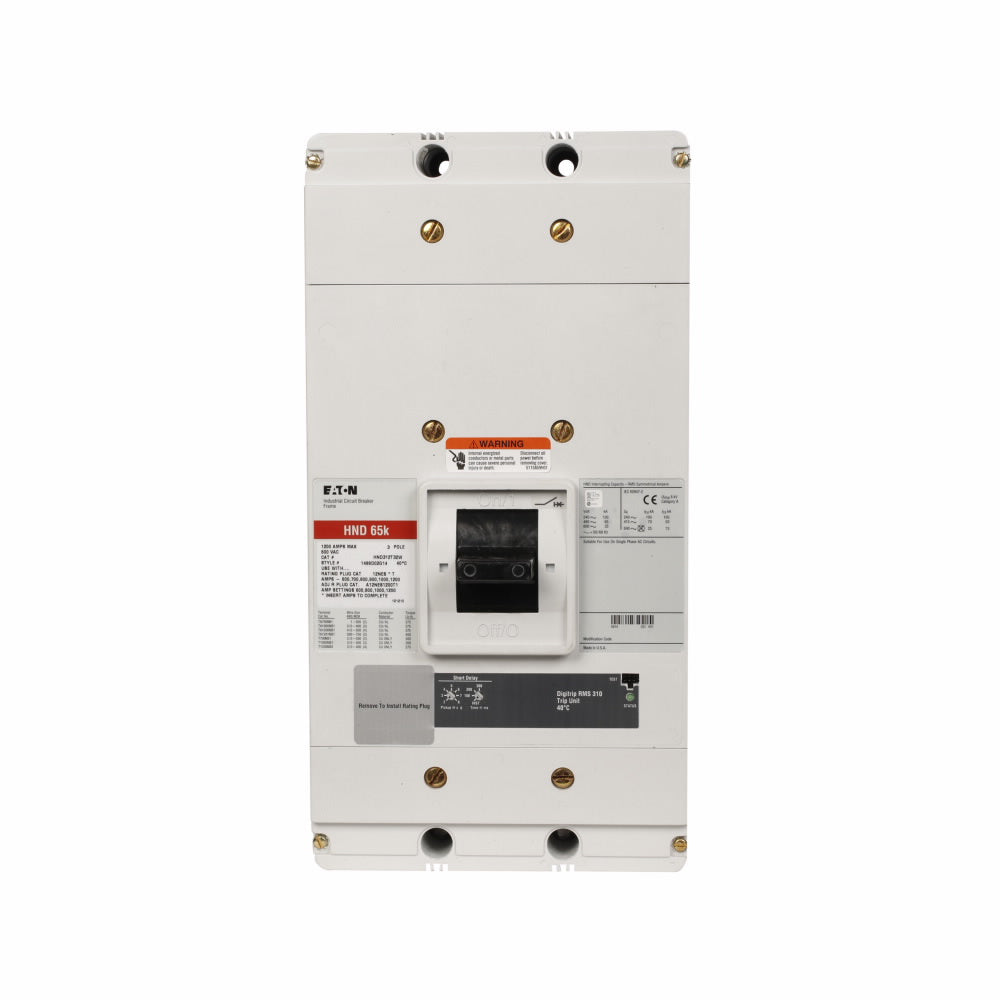

CHND3800T56W - Eaton Series C 800A 600V 3-Pole NG-Frame Molded Case Circuit Breaker

CHND3800T56W

CHND3800T56W is an Eaton Series C electronic molded case circuit breaker designed for industrial and commercial power distribution applications. This three-pole, NG-frame complete breaker features an 800-ampere rating at 600 volts AC with OPTIM 550 electronic LSIG trip technology for reliable overcurrent protection and selective coordination. The breaker is 100% rated and operates at 50/60 Hz without terminals, providing flexible installation options in standard electrical enclosures. Key Specifications

• Amperage Rating: 800 A
• Voltage Rating: 600 Vac
• Number of Poles: Three-pole
• Frame Type: NG
• Series: Series C
• Trip Unit: Electronic LSIG (T172)
• Interrupt Rating: 65 kAIC at 480 Vac, 100 kAIC at 240 Vac
• Design: OPTIM 550
• Rating: 100% rated
• Frequency: 50/60 Hz
• Terminals: Without terminals
• Compliance: HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHND3800T56W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : CHND
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@4
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : N Frame
• Protection : Solid State

Product Data

• UPC : 078211440878
• GTIN : 00782114408780
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 44
