2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
CHFN120AF

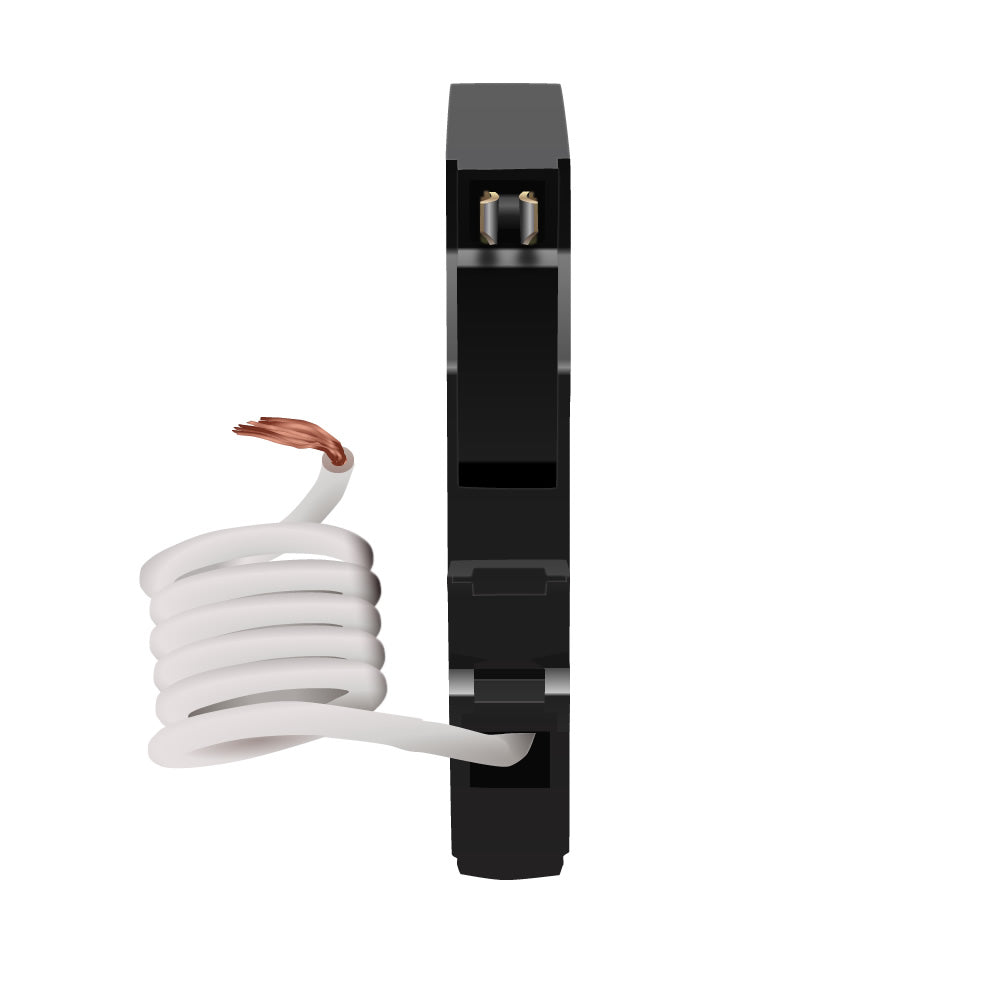

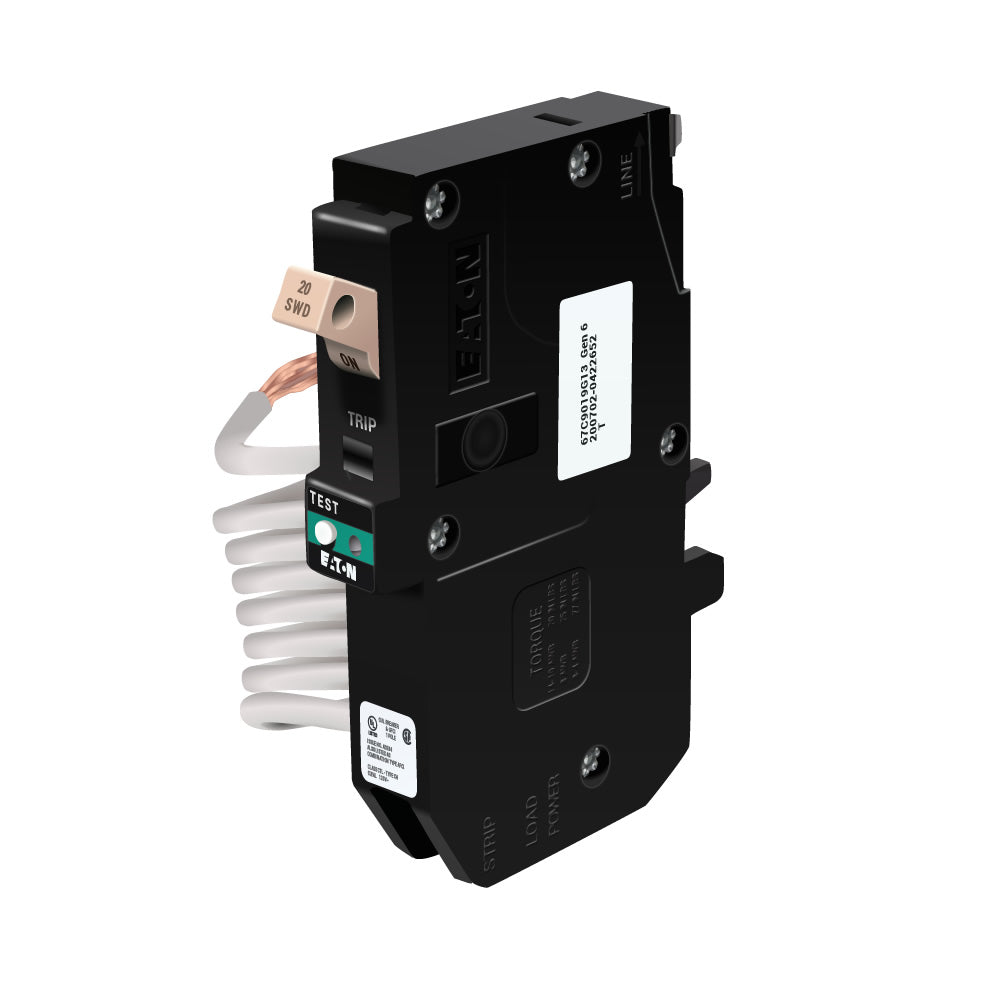

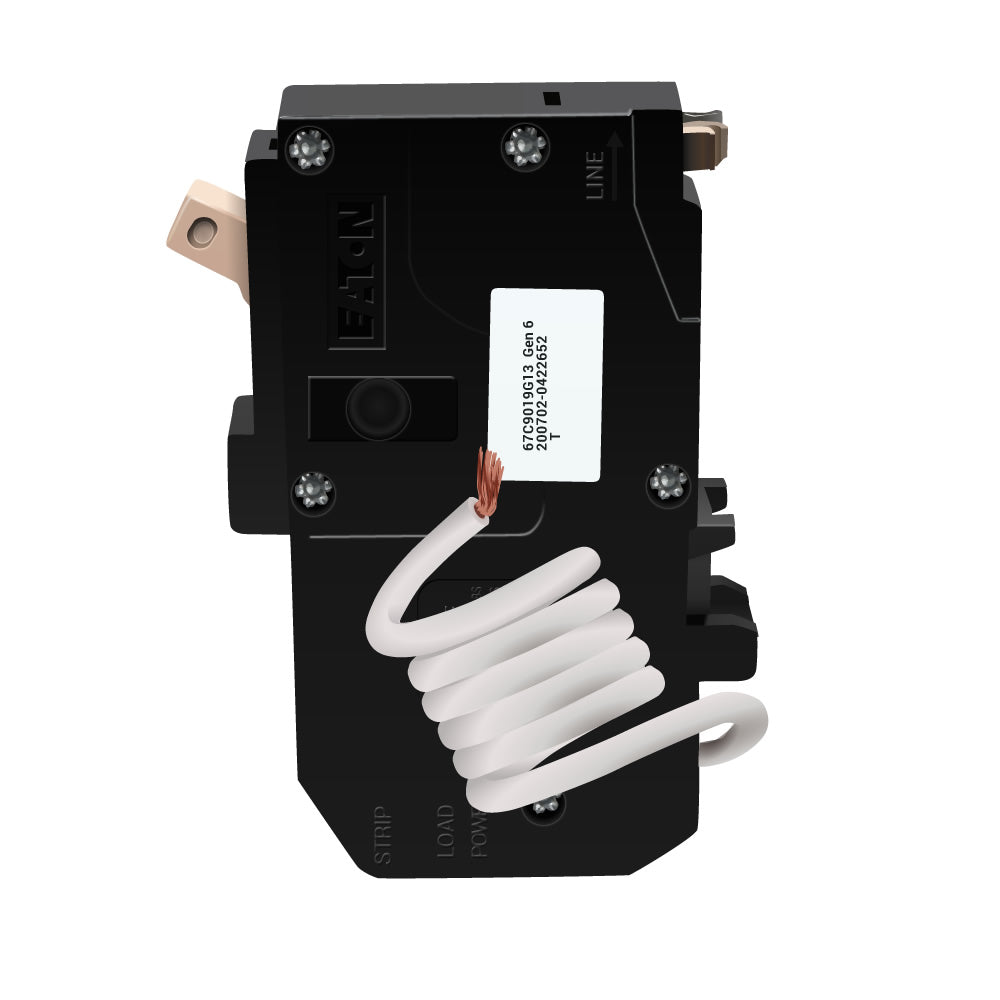

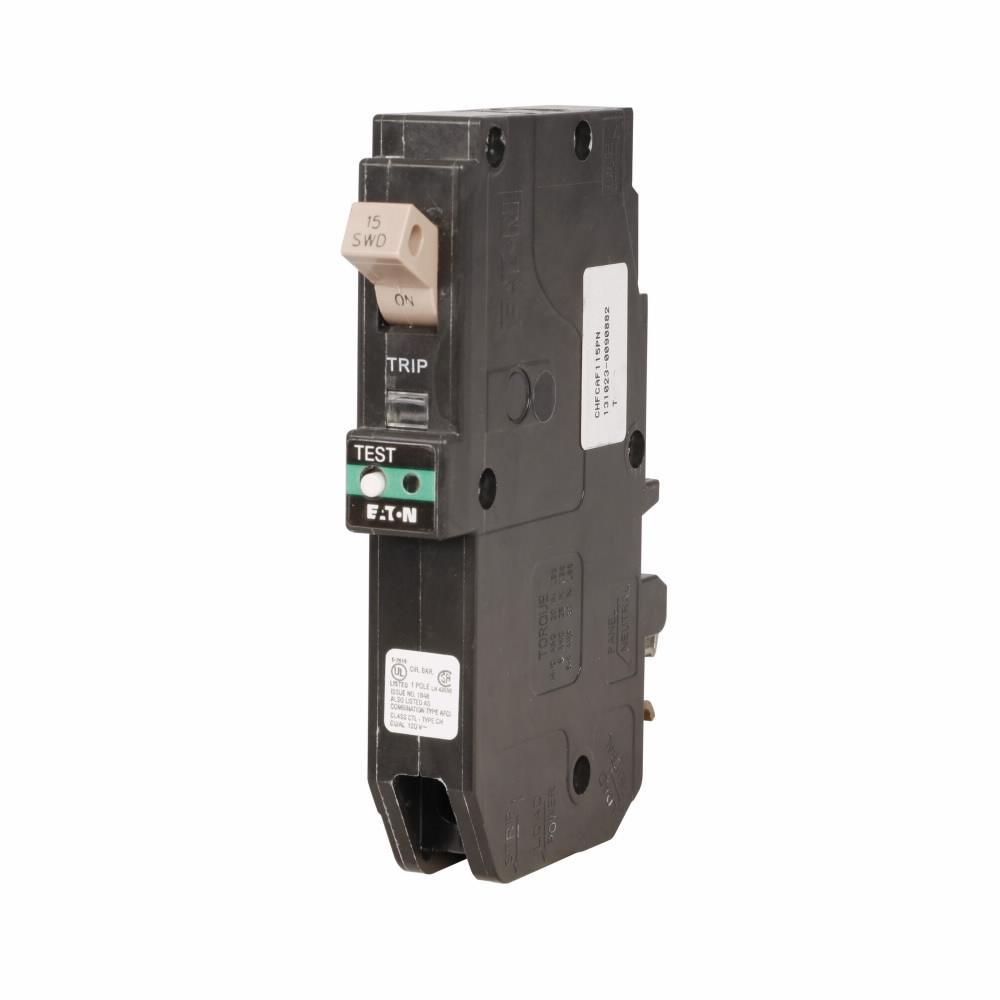

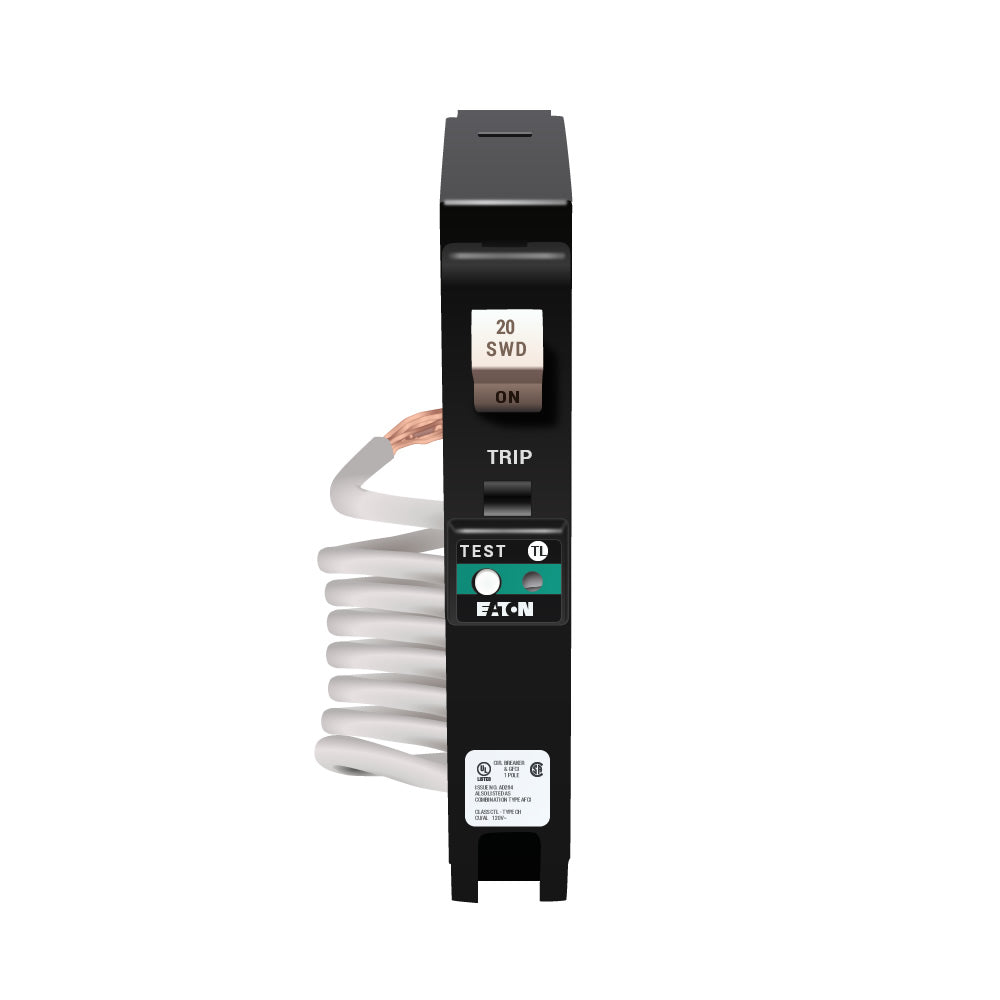

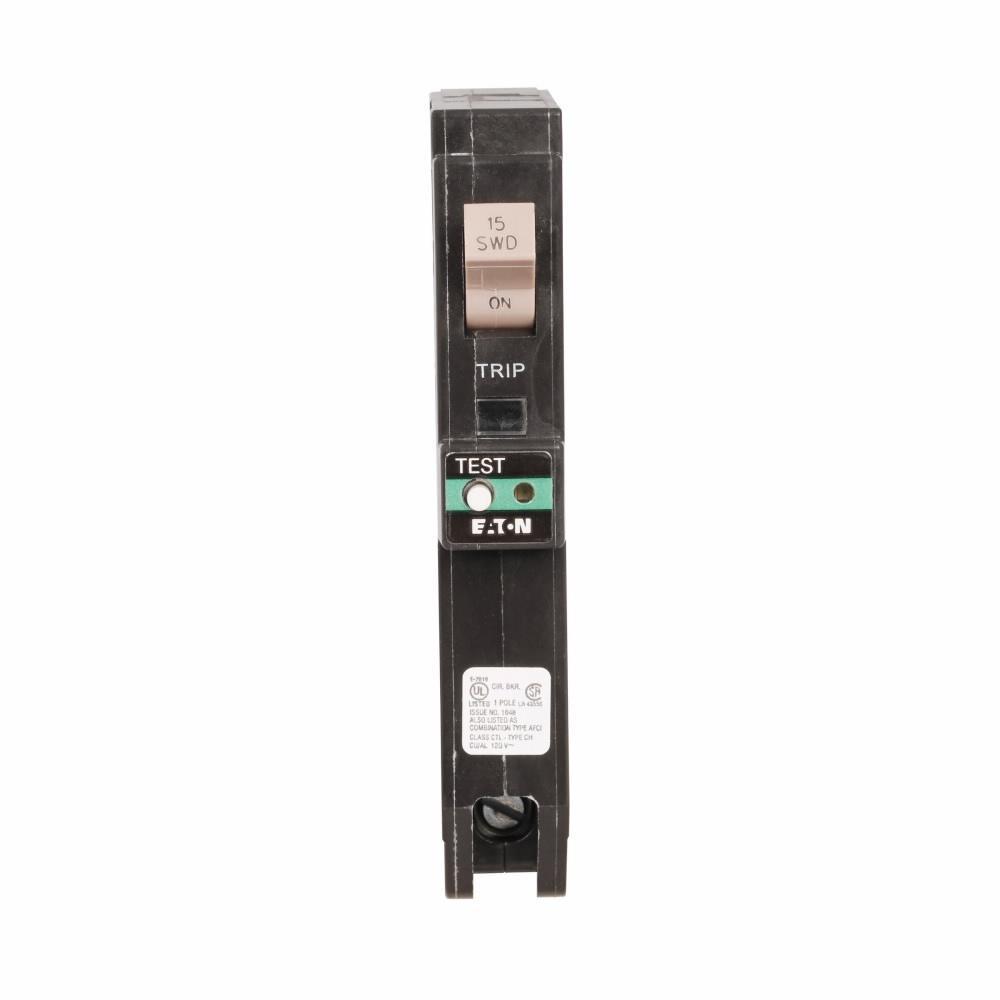

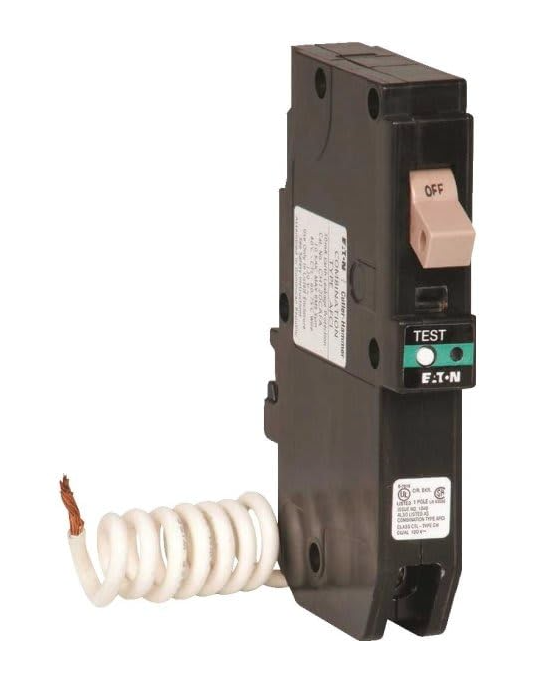

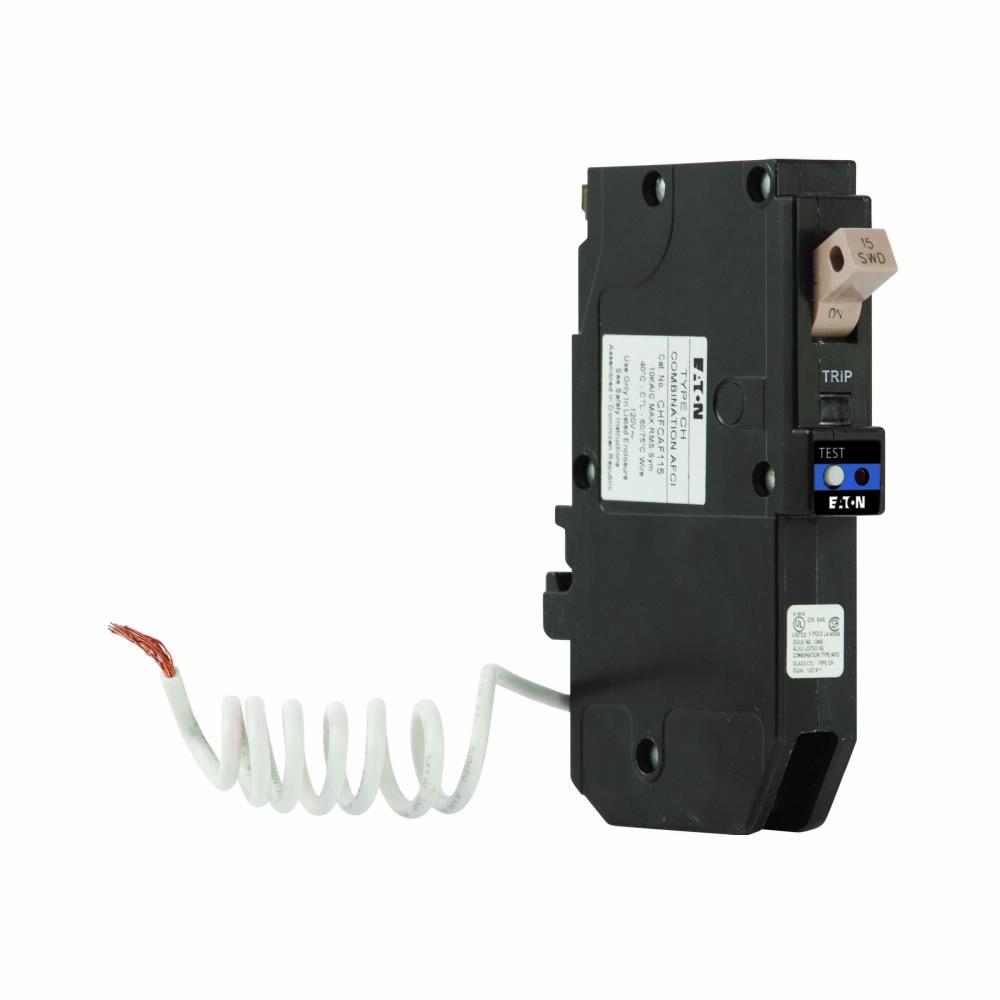

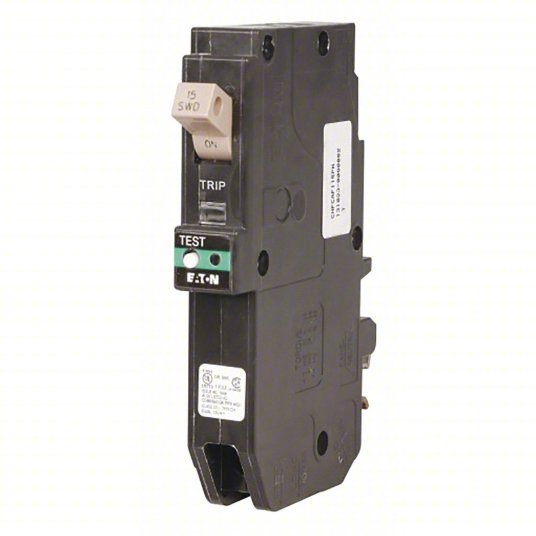

CHFN120AF is a 20 amp, 1-pole arc fault circuit breaker from Eaton designed for plug-on mounting in CH series panels.This Eaton CHFN120AF AFCI breaker features a 120/240 volt rating, 10 kAIC interrupt rating, and pigtail connection. It includes long time and instantaneous trip functions and is UL listed and HACR rated for reliable protection.
- Amperage: 20 A
- Voltage: 120/240 V AC
- Poles: 1
- Mounting Type: Plug-On
- Interrupt Rating: 10 kAIC
- Series/Frame: CH
- Trip Unit: Long Time and Instantaneous
- Connection Type: Pigtail
- Certifications: UL Listed, HACR Rated
- Circuit Breaker Type: AFCI (Arc Fault Circuit Interrupter)
Specifications
- Part Number: CHFN120AF
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 3
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Pigtail
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
- Breaker Type : CH
- Protection : Thermal Magnetic
Product Data
- UPC : 786689058845
- GTIN : 00786689058845
- Country of Origin : Dominican Republic
- Dimensions : 4.5 in x 3.25 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.5 lb
- Panel Type : Type CH Loadcenters
- Standards : UL Listed, HACR Rated
- Certification : UL 489, HACR Rated
