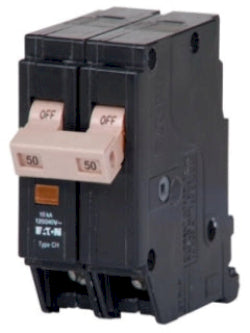

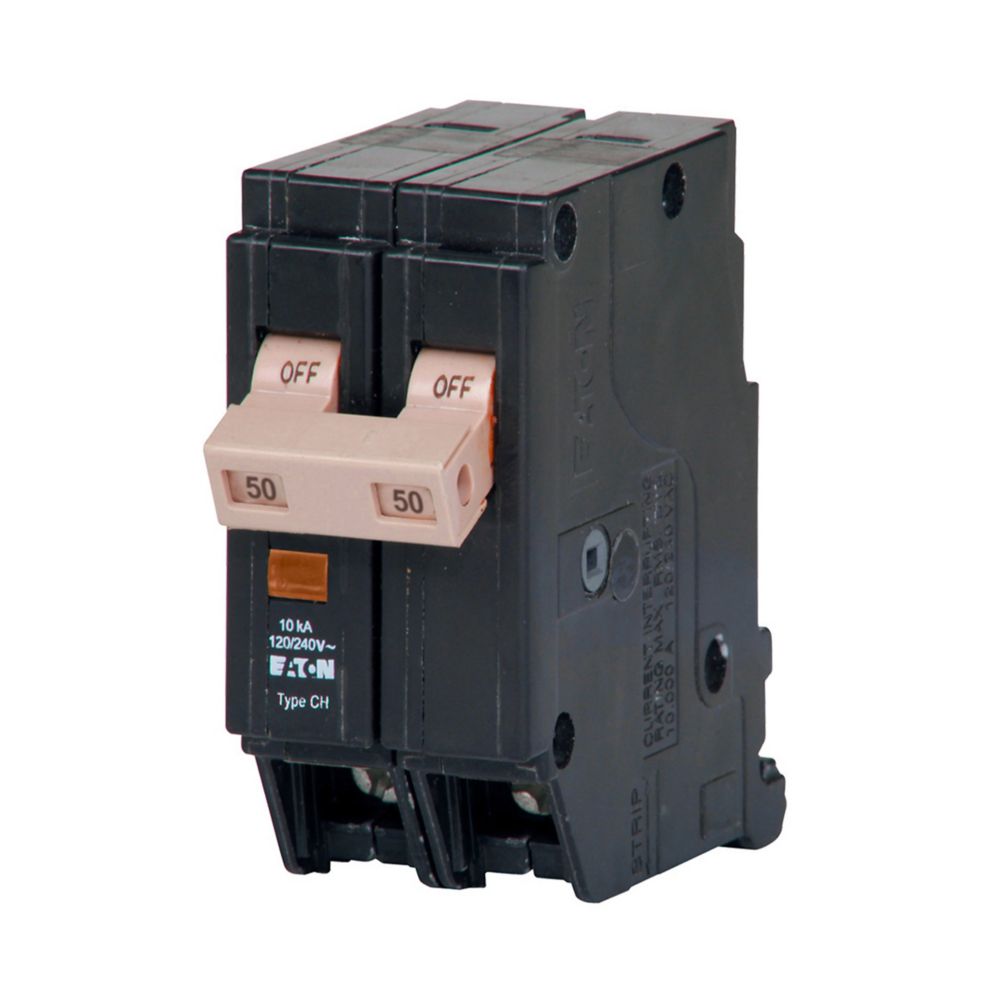

CHF250 - Westinghouse 50 Amp 240V 2-Pole Plug-In Circuit Breaker Type CH Frame

CHF250

CHF250 is a 50 Amp, 240 Volt, 2-pole plug-in circuit breaker from Westinghouse designed for Type CH load centers.This thermal magnetic breaker features a mechanical trip flag for visible status indication, a 10kA interrupt rating at 120V, and combines long time and instantaneous trip functions for reliable protection. It supports wire sizes from 10 to 1/0 AWG and mounts easily with a plug-in design suitable for residential and light commercial applications.

• Amperage: 50 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Interrupt Rating: 10 kA at 120 V
• Mounting Type: Plug-In
• Trip Type: Thermal Magnetic with Instantaneous Trip
• Trip Flag: Mechanical visible indicator
• Frame/Series: Type CH
• Wire Size Range: #10 to 1/0 AWG Cu/Al
• Operating Frequency: 50/60 Hz
• Certifications: UL Listed, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHF250
• Manufacturer : Westinghouse
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CHF
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• MCM Size : Min. Wire Size 10 AWG Cu/Al Max. Wire Size 1/0 AWG (Cu/Al)
• Breaker Type : CHF
• Protection : Thermal Magnetic

Product Data

• UPC : 786685532172
• GTIN : 00786685532172
• Country of Origin : United States
• Dimensions : 1.5 in x 2.6 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.28
• Panel Type : Type CH Loadcenters
• Standards : UL 489, HACR Rated
• Certification : UL 489, HACR Rated
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
