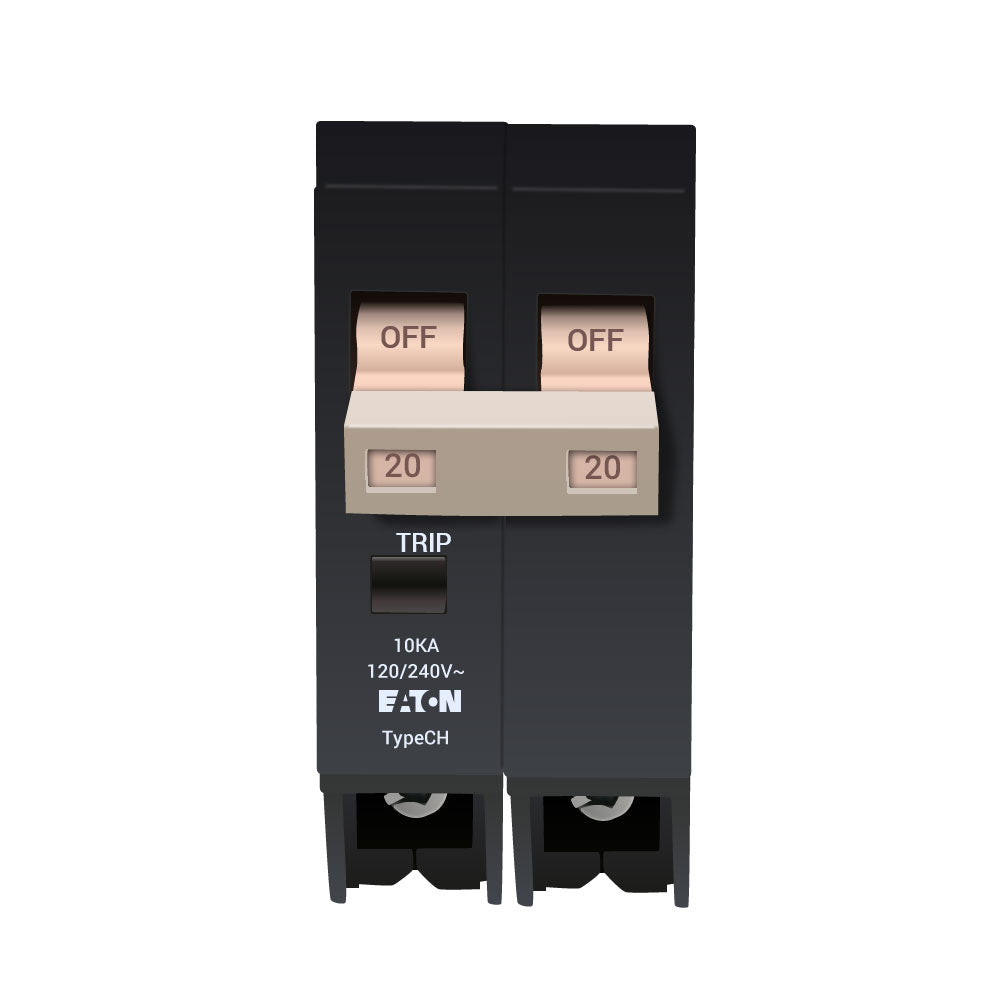

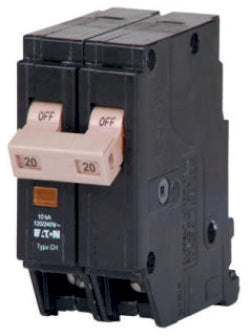

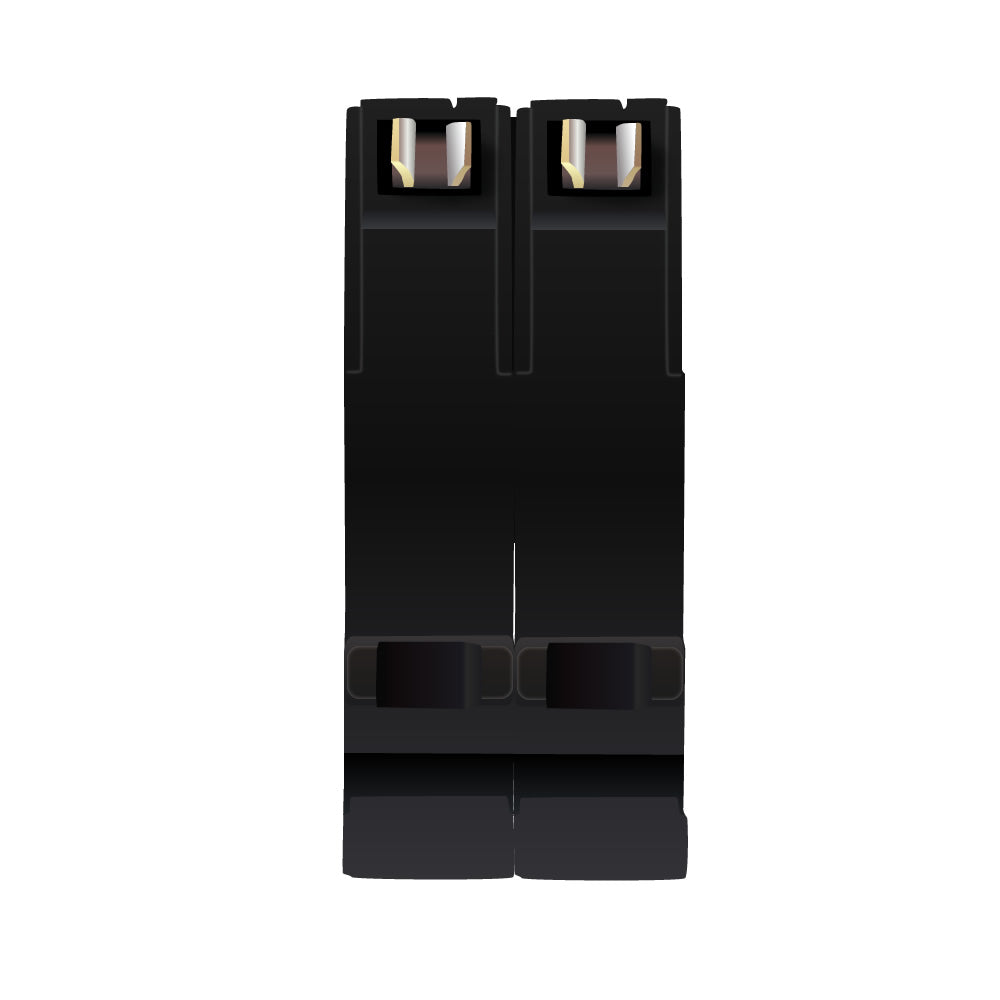

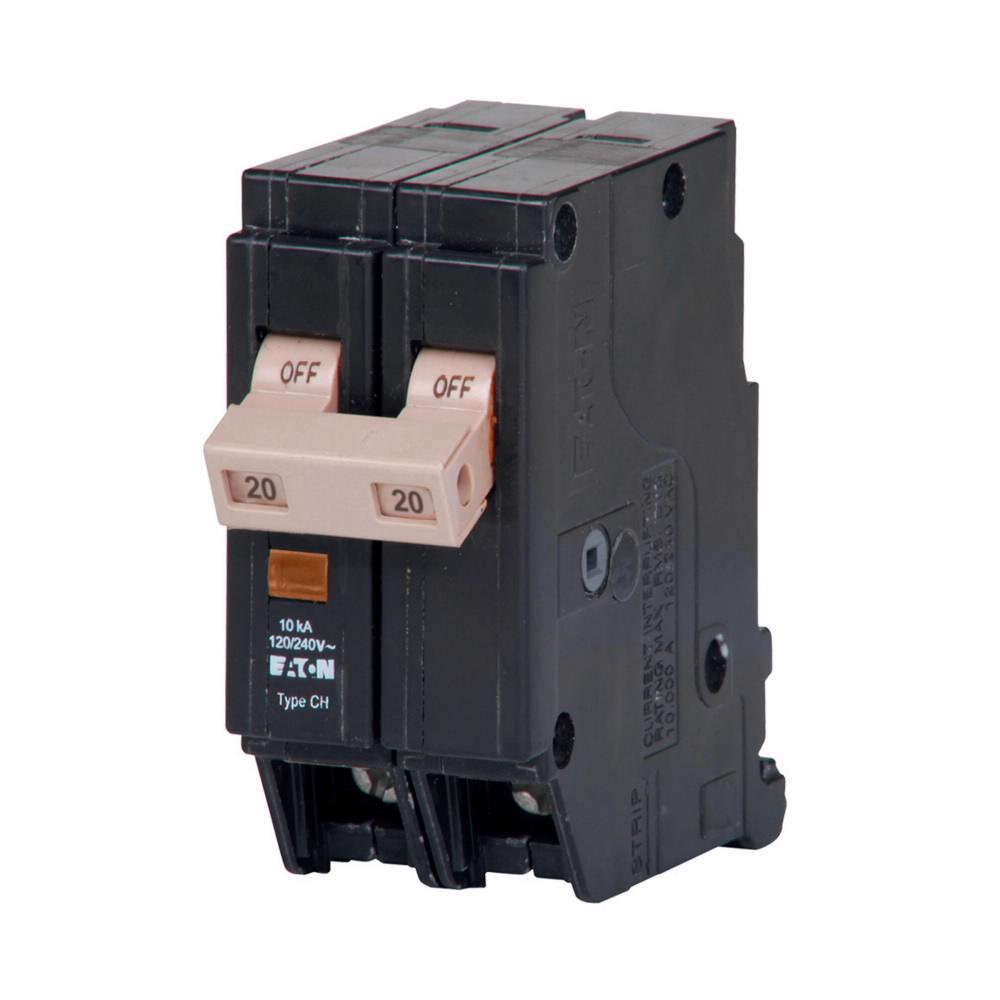

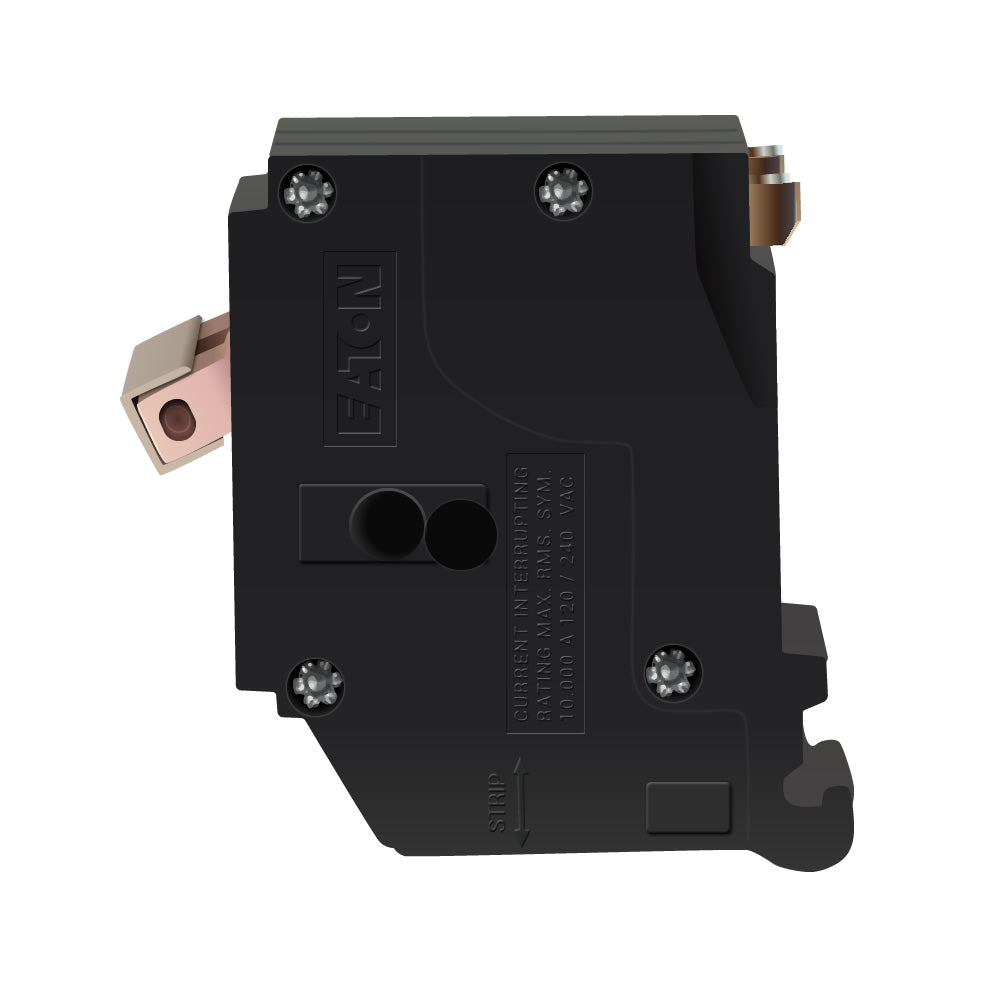

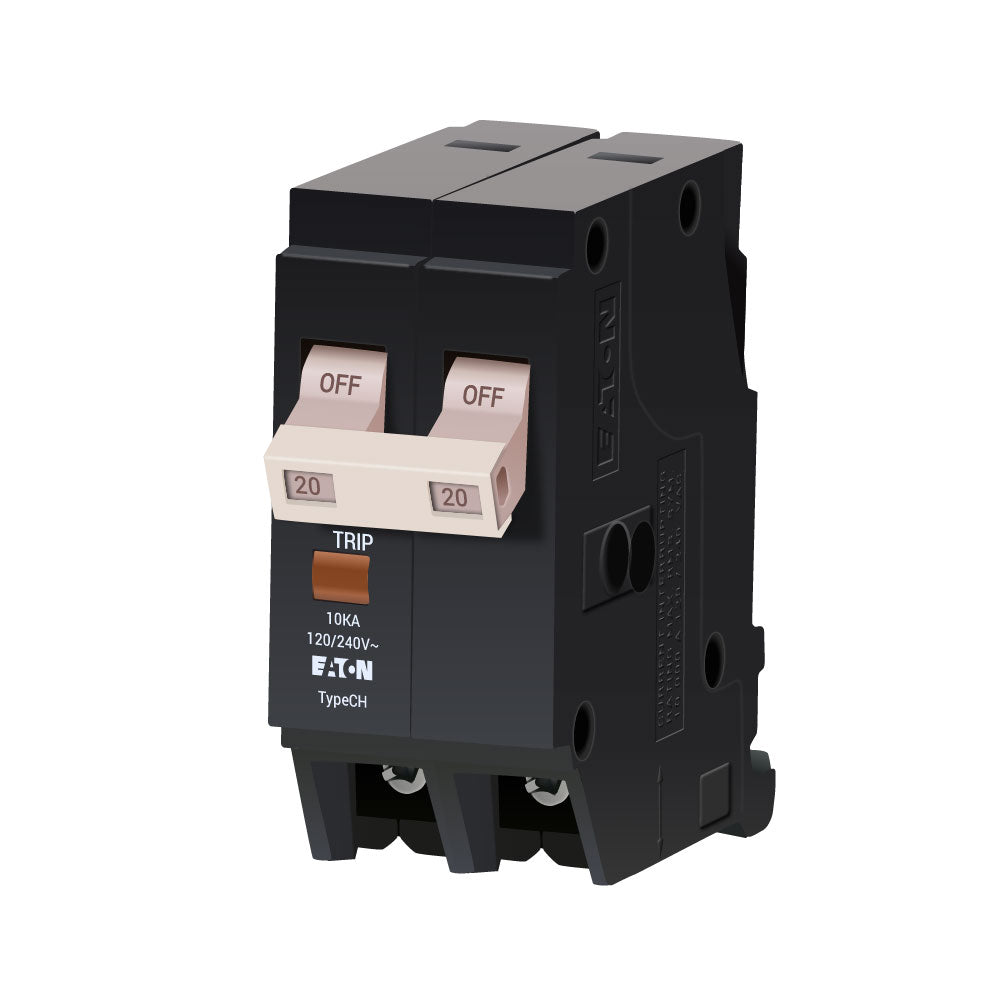

CHF220 - Emery Jensen Distribution LLC Eaton CH Series 20A 2-Pole 240V Molded Case Circuit Breaker Plug-In Mount 10kA Interrupt Rating

CHF220

CHF220 is a molded case circuit breaker from Eaton's CH Series, distributed by Emery Jensen Distribution LLC, designed for reliable circuit protection in commercial and industrial applications.

This 2-pole breaker operates at 240V and 20A, featuring a plug-in mounting type for easy installation and removal. It is part of the CH Series frame and offers a 10kA interrupt rating at 120V, ensuring robust performance in demanding environments. The trip unit is thermal-magnetic, providing both overload and short-circuit protection. Certifications are not specified in available data.

Key Specifications
• Part Number: CHF220
• Manufacturer: Eaton (distributed by Emery Jensen Distribution LLC)
• Amperage: 20A
• Voltage: 240V
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10kA @ 120V
• Series/Frame: CH Series
• Trip Unit: Thermal-Magnetic
• Certifications: Not specified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHF220
• Manufacturer : Emery Jensen Distribution LLC
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CHF
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• MCM Size : Min. Wire Size (2) 14 AWG (Cu/Al) Max. Wire Size (2) 10 AWG (Cu/Al)
• Breaker Type : CHF
• Protection : Thermal Magnetic

Product Data

• UPC : 786685361888
• GTIN : 00786685361888
• Country of Origin : United States
• Dimensions : 0.75 in x 2.6 in
• Weight : 0.5
• Panel Type : Type CH Loadcenters
• Standards : UL 489, HACR Rated
• Certification : UL 489, HACR Rated
• Wire Size : 2x AWG 14 to AWG 10, Cu/Al, 1x AWG 14 to AWG 8
