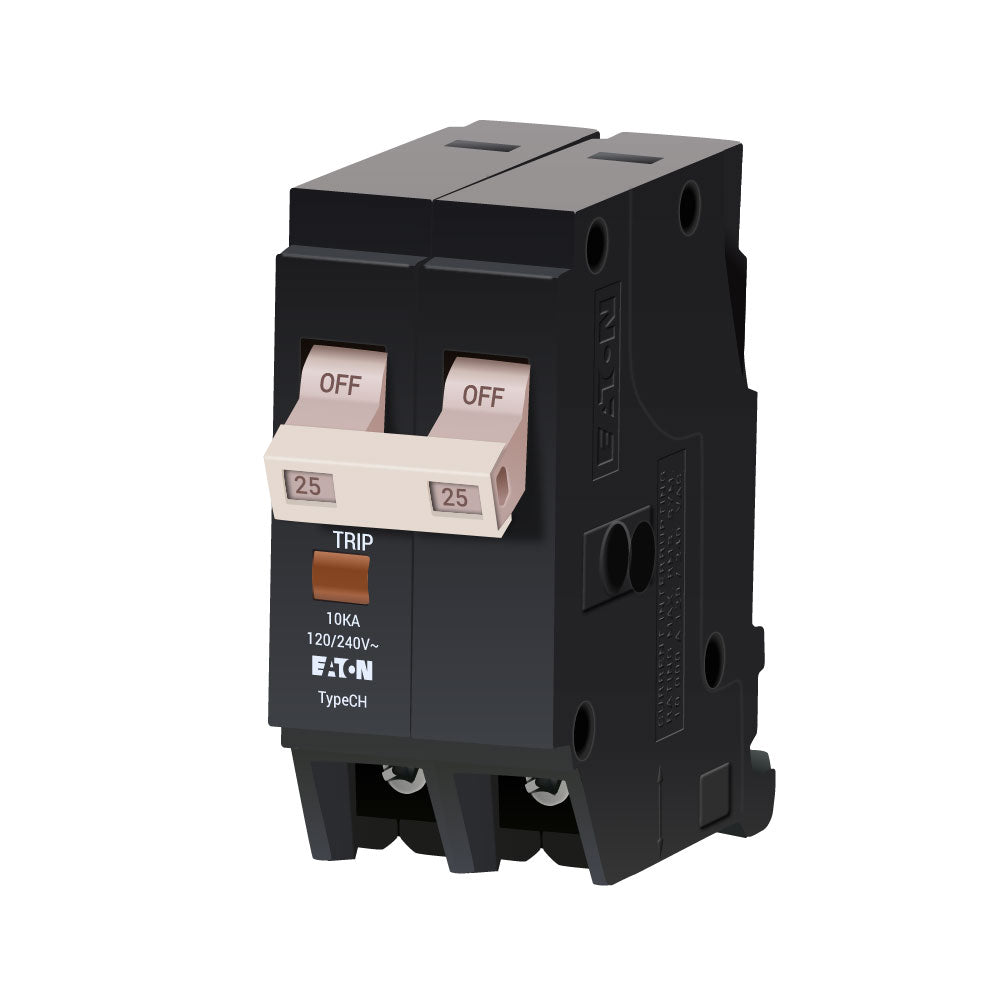

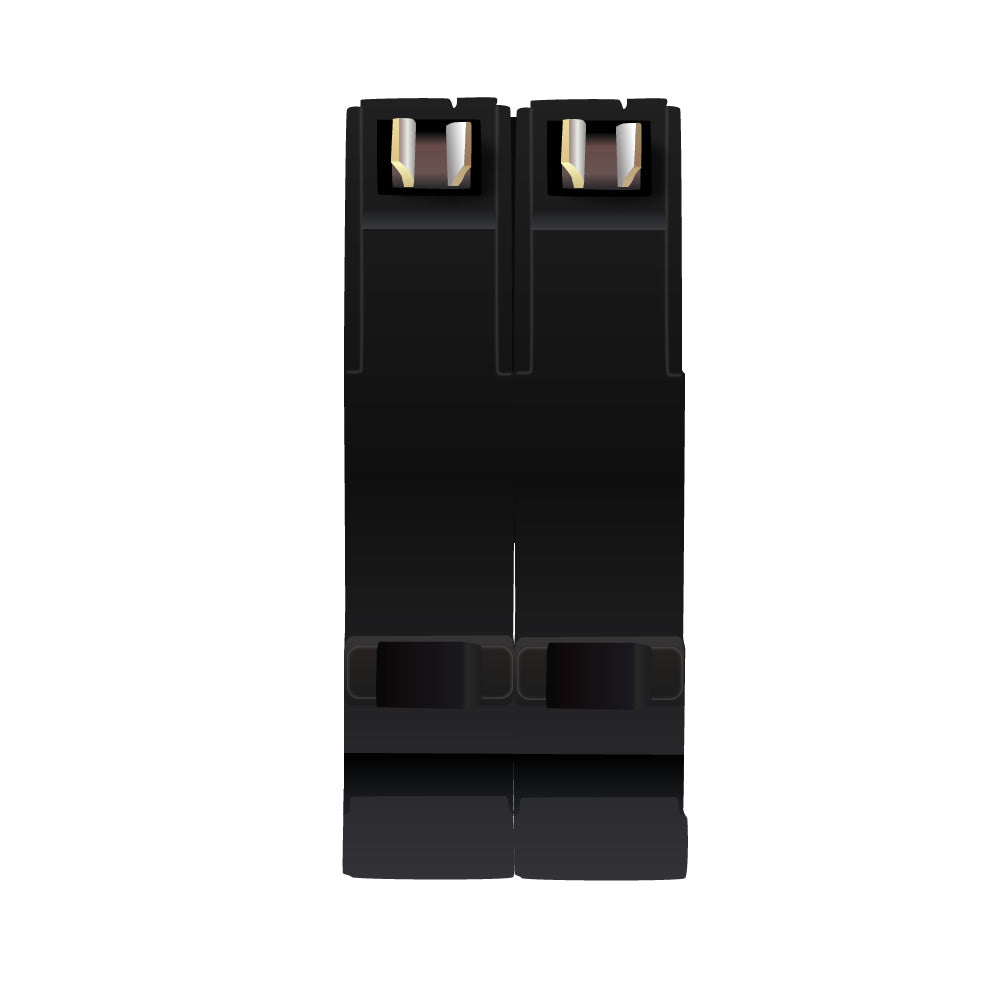

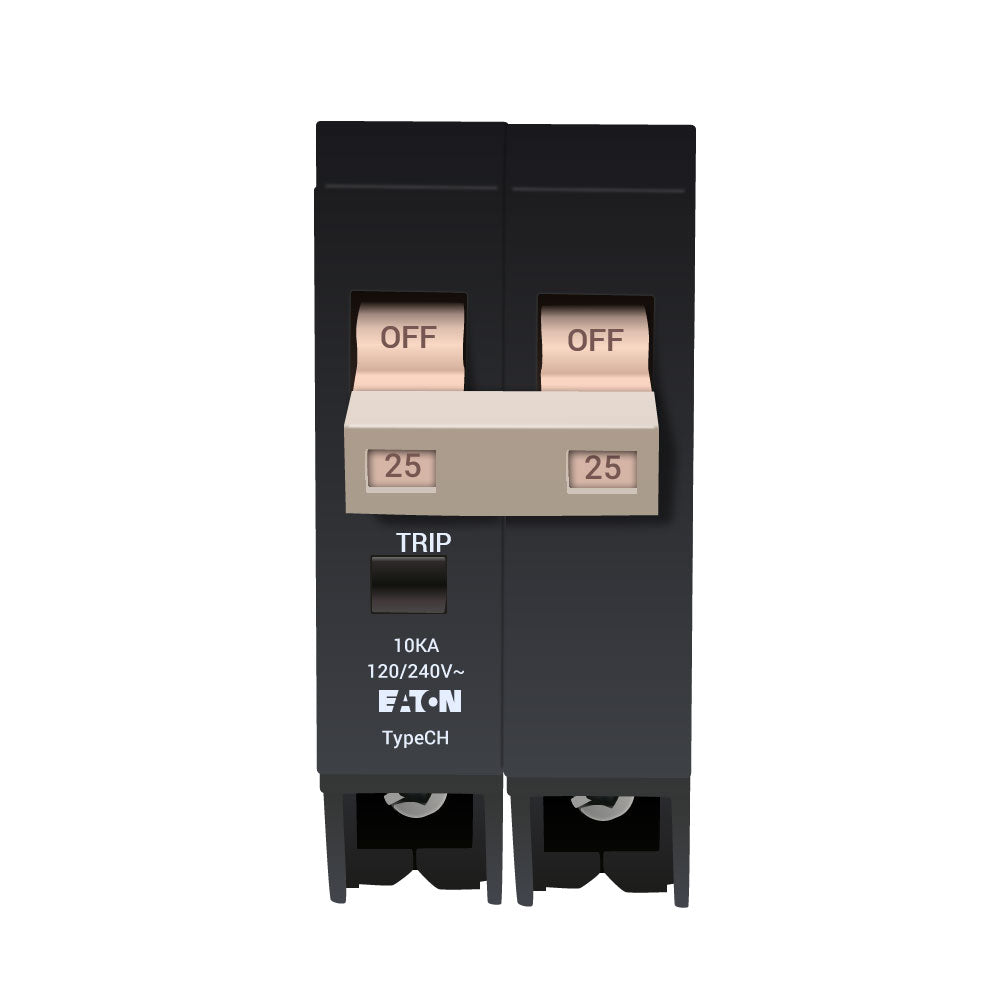

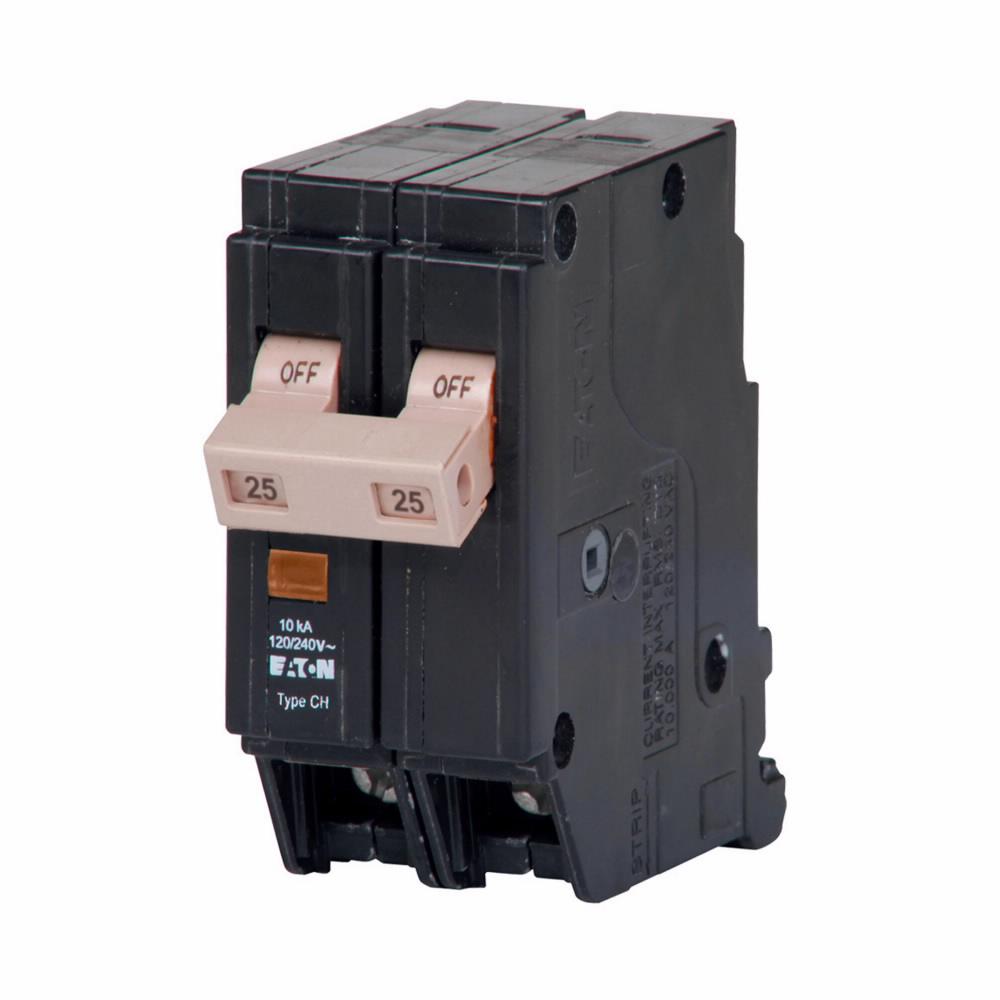

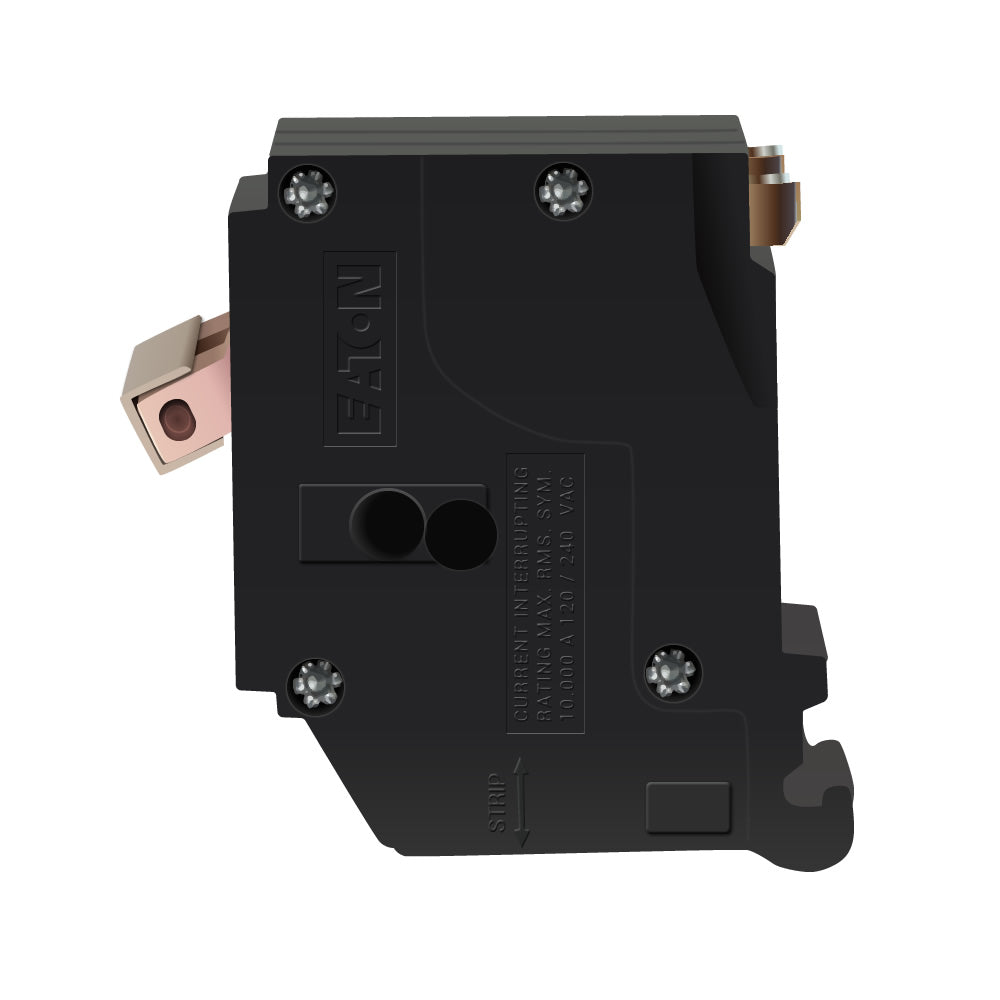

CHF225 - Westinghouse Eaton 25 Amp 240V 2 Pole CH Series Plug-In Circuit Breaker with Trip Flag, 10kA Interrupt, HACR, UL Listed

CHF225

CHF225 is a Westinghouse Eaton 25 Amp, 240V, 2-pole plug-in circuit breaker designed for reliable circuit protection in commercial and residential applications.

This thermal magnetic circuit breaker features a 10 kA interrupt rating, a mechanical trip flag for easy status indication, and is part of the CH Series. It is suitable for use with aluminum or copper wire, supports a wide temperature range, and is certified for safety and performance.

Key Specifications
• Part Number: CHF225
• Manufacturer: Westinghouse (Eaton)
• Amperage: 25 A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10 kAIC
• Series/Frame: CH
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified, HACR Rated
• Wire Size: (1) 14–8 AWG, (2) 14–10 AWG Aluminum/Copper
• Terminal Type: Lug
• Temperature Rating: 60–75°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHF225
• Manufacturer : Westinghouse
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CHF
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786685361895
• GTIN : 00786685361895
• Country of Origin : Dominican Republic
• Dimensions : 1.5 in x 2.6 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : UL 489,HACR Rated
• Wire Size : 2x AWG 14 to AWG 10, Cu/Al, 1x AWG 14 to AWG 8
