Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
CHF130ST

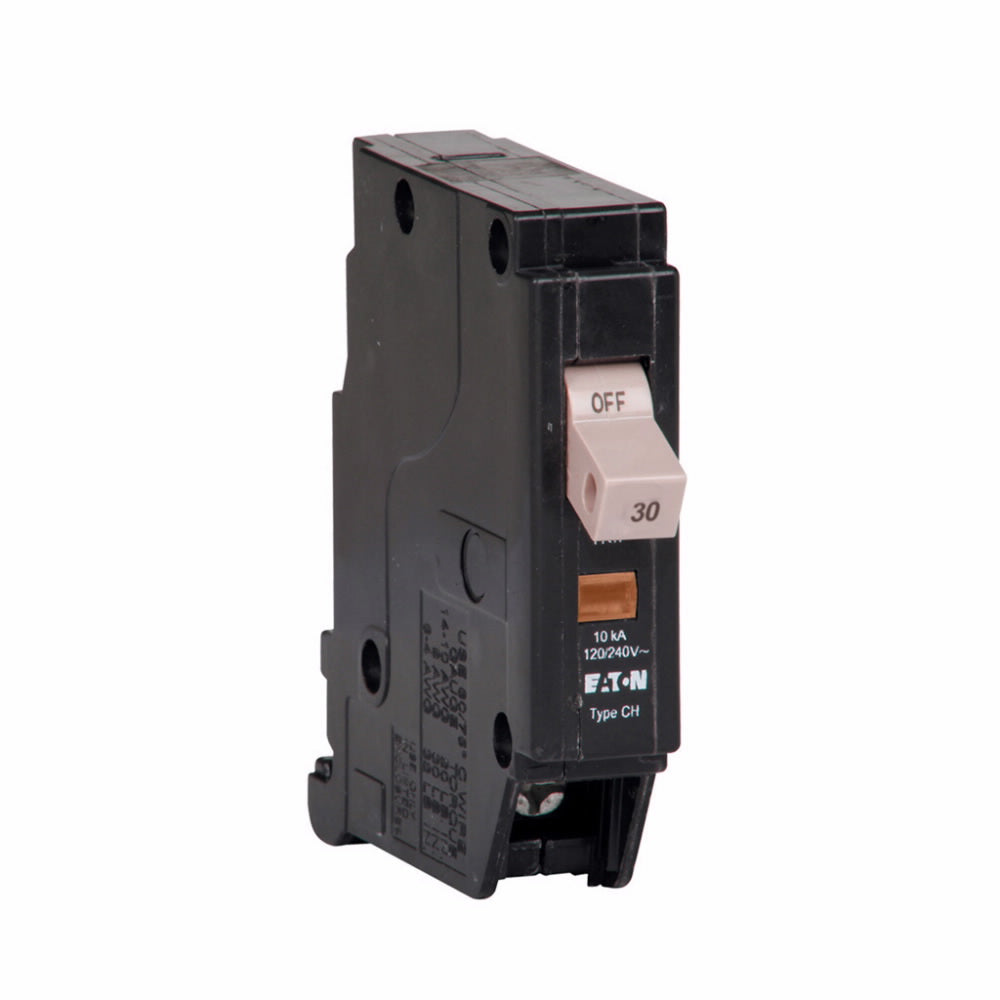

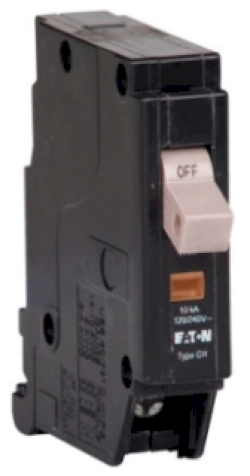

CHF130ST is an Eaton 1-pole thermal magnetic circuit breaker rated for 30 amps and 120/240 volts AC, designed for CH frame load centers.
This Eaton CHF130ST circuit breaker features a 10 kA interrupt rating at 120 volts, plug-on mounting type, and includes a trip flag for common breaker trip indication. It supports wire sizes from #14 to #8 AWG copper and is part of Eaton's CH series known for reliable thermal magnetic protection.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 120/240 VAC
- Poles: 1
- Interrupt Rating: 10 kA at 120V
- Frame Type: CH
- Mounting Type: Plug-On
- Trip Unit: Thermal Magnetic with Trip Flag
- Wire Range: #14-8 AWG Copper
- Common Breaker Trip Capability
- Manufacturer: Eaton
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CHF130ST
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786685708317
- GTIN : 00786685708317
- Country of Origin : Dominican Republic
- Dimensions : 2.375 in x 6 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : UL Listed,UL 489,HACR Rated
- Wire Size : 1x AWG 14 to AWG 8, 2x AWG 14 to AWG 10, Cu/Al
