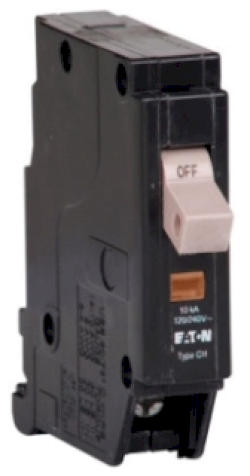

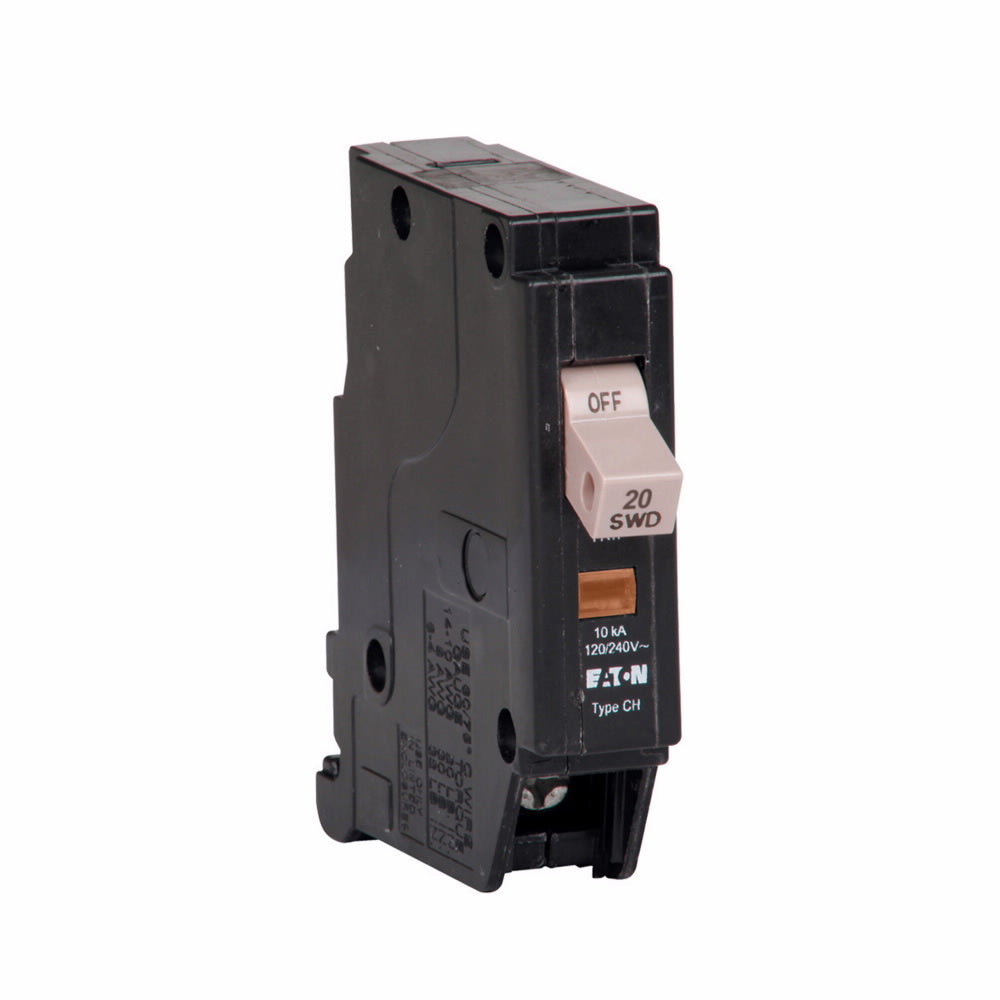

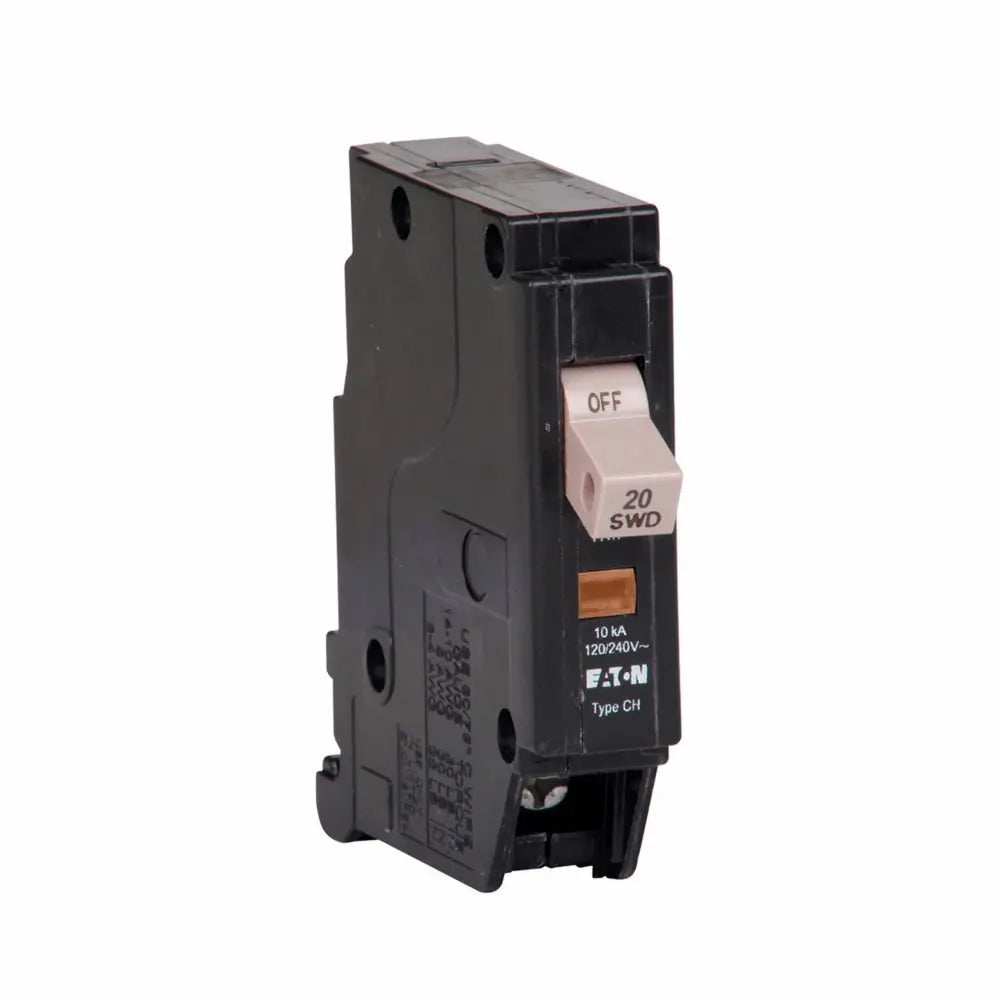

CHF120ST - Eaton 20A 120/240V 1-Pole CH Frame Circuit Breaker with Shunt Trip, 10kA Interrupt Rating

CHF120ST

CHF120ST is a 1-pole Eaton CH frame circuit breaker rated for 20 amps and 120/240 volts with a shunt trip feature.This Eaton CHF120ST circuit breaker provides thermal magnetic protection with a 10kA interrupt rating at 120/240V. It is designed for plug-in mounting in Type CH load centers and supports copper or aluminum wiring from AWG 14 to AWG 8. The breaker includes long time and instantaneous trip functions and features a mechanical trip flag for trip indication. It meets UL 489 and HACR standards for reliable residential and commercial use.

• Amperage: 20 A
• Voltage: 120/240 V AC
• Poles: 1
• Interrupt Rating: 10 kAIC
• Frame Type: CH
• Mounting Type: Plug-In
• Trip Unit: Thermal Magnetic with Shunt Trip
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Certifications: UL 489, HACR
• Dimensions: 4.8" L x 3.5" W x 3.5" H
• Application: Type CH Load Centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHF120ST
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786685384818
• GTIN : 00786685384818
• Dimensions : 4.8 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.55 lb
• Wire Size : 1x AWG 14 to AWG 8, 2, AWG 14 to AWG 10, Cu/Al
