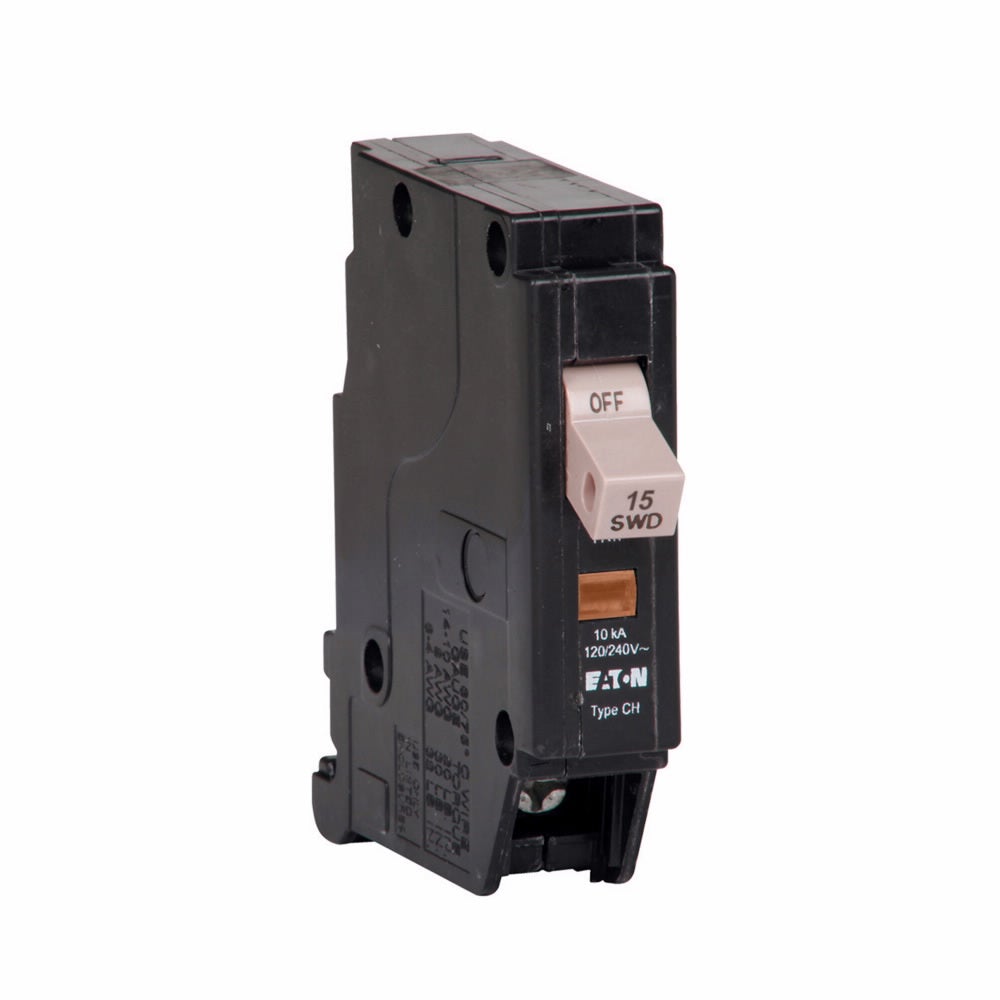

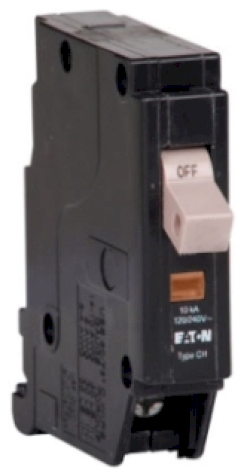

CHF115ST - Eaton 15A 120/240V Single-Pole CHF Thermal Magnetic Circuit Breaker Plug-On 10kAIC Shunt Trip

CHF115ST

CHF115ST is a Eaton 15 amp, 120/240 volt, single-pole thermal magnetic circuit breaker with plug-on mounting and shunt trip feature.This Eaton CHF series circuit breaker offers a 10 kA interrupt rating and includes a mechanical trip flag for common breaker trip indication. It is UL listed, HACR rated, and designed for use with Type CH loadcenters. The breaker supports solid and stranded wire, with wire size capacity of (2) #14-10 AWG Cu/Al. It measures 6 inches in height, 3.5 inches in width, and 2.375 inches in depth.

Key Specifications
• Amperage: 15 A
• Voltage: 120/240 V AC
• Poles: Single-pole
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-on
• Series/Frame: CHF
• Trip Unit: Thermal Magnetic with Mechanical Trip Flag
• Shunt Trip: Included
• Certifications: UL Listed, HACR Rated
• Wire Size: (2) #14-10 AWG Cu/Al
• Compatible with Type CH Loadcenters
• Dimensions: 6" H x 3.5" W x 2.375" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CHF115ST
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : CH
• Protection : Thermal Magnetic



Product Data

• UPC : 786685708294
• GTIN : 00786685708294
• Country of Origin : Dominican Republic
• Dimensions : 2.375 in x 6 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : UL Listed,UL 489,HACR Rated
• Wire Size : 1x AWG 14 to AWG 8, 2x AWG 14 to AWG 10, Cu/Al
