Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CHB260ST

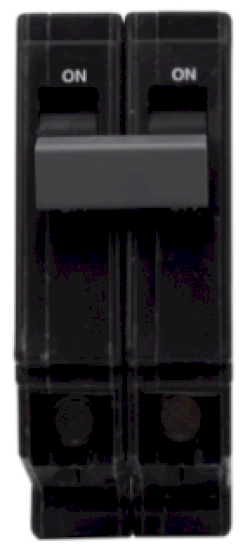

CHB260ST is a Cutler Hammer thermal magnetic circuit breaker designed for residential and light commercial applications with enhanced safety control features. This two-pole plug-in circuit breaker is rated for 60 amperes at 120/240 volts and features a shunt trip mechanism for reliable load protection and emergency disconnect capability. The breaker accommodates copper and aluminum wire sizes from 14 to 2 AWG and is compatible with Type CH loadcenters, requiring two 3/4-inch spaces for installation.
- Amperage Rating: 60 A
- Voltage Rating: 120/240 VAC
- Number of Poles: Two-pole
- Trip Type: Thermal Magnetic with Shunt Trip
- Interrupt Rating: 10 kAIC
- Wire Size: #14-2 AWG Cu/Al
- Mounting Type: Plug-In
- Frame Size: Type CH 3/4-Inch Standard
- Certifications: UL 489
- Used With: Type CH Loadcenters
- Trip Configuration: Common Trip
Specifications
- Part Number: CHB260ST
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CHB Series
- Type : CHB
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 3
