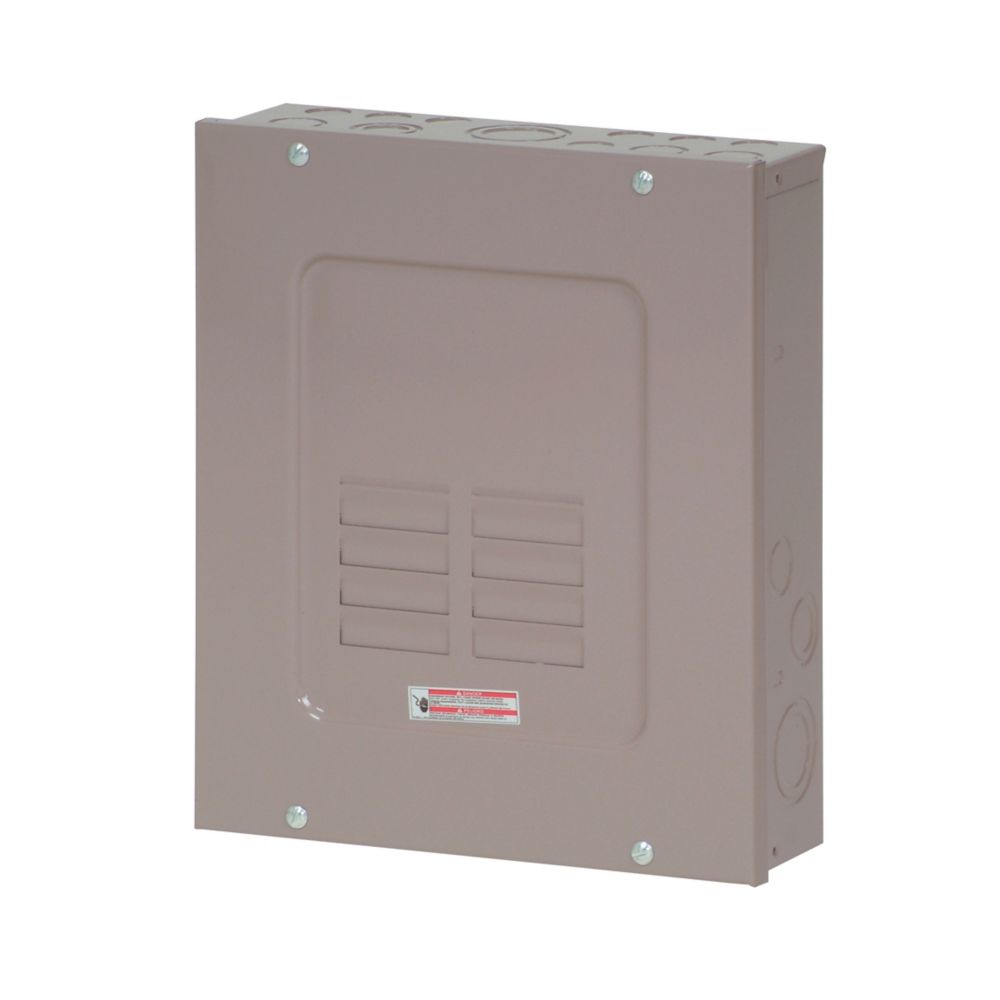

Eaton CH8L125SP 125A Main Lug Loadcenter, 8-Space, 120/240V, 25kAIC, NEMA 1

CH8L125SP

Eaton CH8L125SP 125A Main Lug Loadcenter, 8-Space, 120/240V, 25kAIC, NEMA 1

The Eaton CH8L125SP is a 125A main lug only (MLO) loadcenter rated for 120/240V AC single-phase service, listed to UL 50 and UL 67 for use as service equipment or a sub-panel in residential and light commercial installations. The panel carries a 25 kAIC interrupting rating and provides 8 full-size spaces, expandable to 16 circuits with tandem breakers, on a one-piece copper bus.

Full part number CH8L125SP identifies the surface-mount, NEMA 1 indoor enclosure configuration. The panel accepts Eaton Type CH branch circuit breakers on a top or bottom feed, with lugs sized for #6 to 1/0 AWG conductors, and it is suitable for use as service equipment when no more than two service disconnecting means are provided, or when not used as a lighting and appliance branch-circuit panelboard.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Service entrance main lug panel for residential or light commercial 120/240V single-phase systems
• Sub-panel addition to an existing 120/240V service
• Power distribution and branch circuit protection for lighting, receptacle, and appliance loads

Key Features

• Interrupting rating: 25 kAIC for short-circuit protection
• Copper bus: One-piece silver flash-plated copper bus for consistent conductivity
• Branch breaker compatibility: Accepts Eaton Type CH circuit breakers
• Ground bar: Ground bar kit sold separately, not factory-installed

Specifications

• Amperage Rating: 125 A
• Voltage Rating: 120/240 V AC, Single-Phase
• Interrupting Rating: 25 kAIC
• Number of Spaces: 8 (up to 16 circuits with tandem breakers)
• Bus Material: Copper
• Wire Size Range: #6-1/0 AWG
• Number of Wires: 3
• Feed Type: Top/Bottom
• Mounting: Surface
• Enclosure: NEMA 1, Metallic, Indoor

Product Identification

• Dimensions: 13 in H x 11 in W x 3.69 in D
• Weight: 12 lb
• UPC: 782114190531

FAQ

• Does the Eaton CH8L125SP include a main breaker? No. CH8L125SP is a main lug only (MLO) loadcenter with no main breaker included; it uses lugs for the incoming service or feeder conductors.
• What is the interrupting rating of the CH8L125SP? The CH8L125SP carries a 25 kAIC interrupting rating.
• Does the CH8L125SP include a ground bar? No. Ground bar kits for the CH8L125SP are sold separately from Eaton.
• What circuit breakers fit the CH8L125SP? The CH8L125SP accepts Eaton Type CH branch circuit breakers.
• Can the CH8L125SP be used as service equipmen


  Specifications

  • Part Number: CH8L125SP
  • Manufacturer : Emery Jensen Distribution LLC
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Load Center
  • Voltage : 120/240 AC
  • Amperage : 125
  • Phase : 1
  • Wire : 3
  • Nema Rating : 1
  • Bus Type : Copper



  Product Data

  • UPC : 782114190531
  • GTIN : 00782114190531
  • Country of Origin : United States
  • Dimensions : 13 in H x 11 in W x 3.69 in D
  • Weight : 12 lb
  • Certification : UL 50, UL 67
