Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description

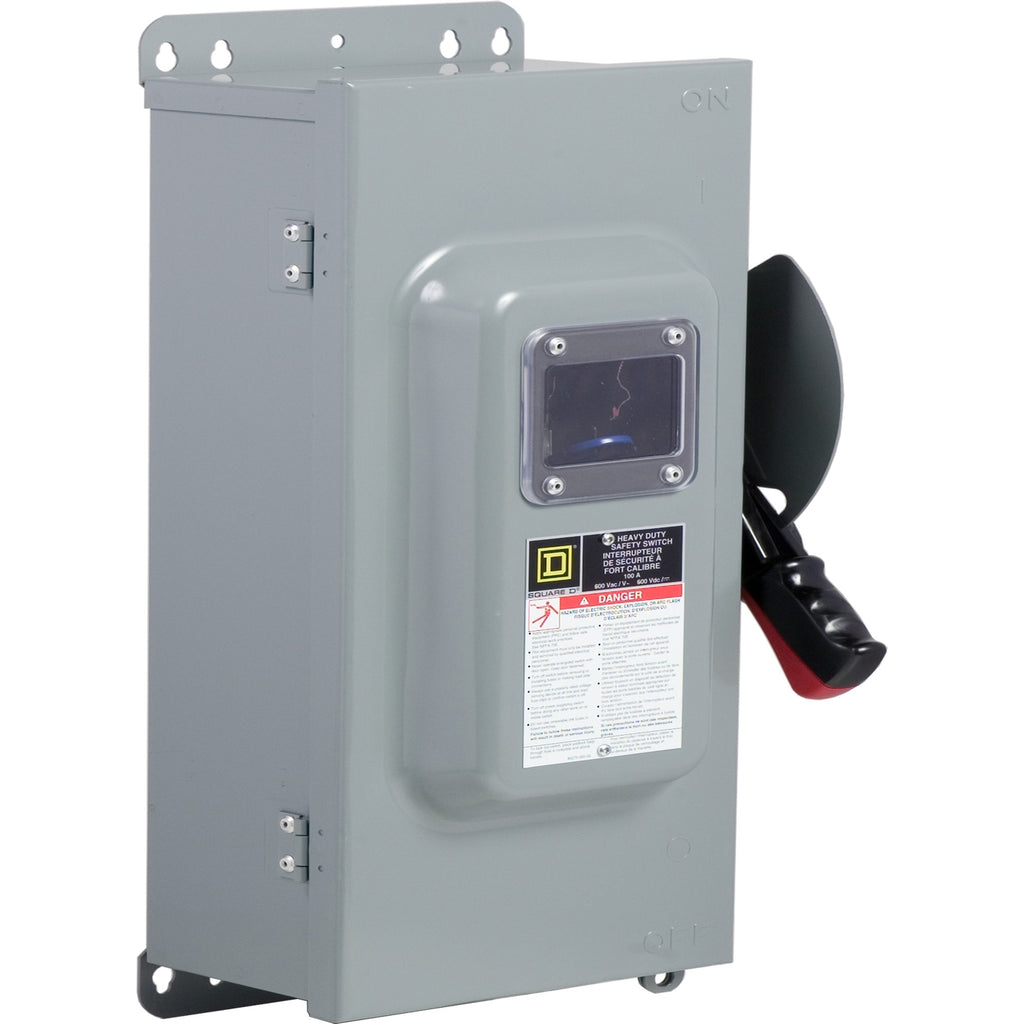

CH363AWK
CH363AWK is a heavy duty fusible safety switch designed for reliable circuit protection in industrial and commercial applications.This Square D Series F, type CH switch features a 3 pole, 100A, 600VAC/VDC rating, and is suitable for 3 phase systems. It comes with a NEMA 3R/12 enclosure for indoor or outdoor use, providing rainproof and dust tight protection. The switch is fusible type, accepts Class R fuses, and is rated for up to 75HP. Mounting is surface type, and the unit is CSA certified for safety and compliance.
- Part Number: CH363AWK
- Manufacturer: Square D
- Series: Series F, Type CH
- Number of Poles: 3
- Rated Current: 100A
- Rated Voltage: 600VAC/VDC
- Interrupt Rating: 200kA @ 600V
- Mounting Type: Surface
- Enclosure: NEMA 3R/12
- Max HP: 75HP
- Fuse Type: Class R
- Certifications: CSA
Specifications
- Part Number: CH363AWK
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : J,R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 3R/12
- Compatible Frames : RJF
Product Data
- UPC : 078590199532
- Dimensions : 20.5 in (520.7 mm) x 10.5 in (266.7 mm) x 7 in (177.8 mm) (Height x Width x Depth)
- Weight : 19.969
