Product Info
- Manufacturer:Challenger
- Sub-Category:Molded Case
Description
CH3080ST

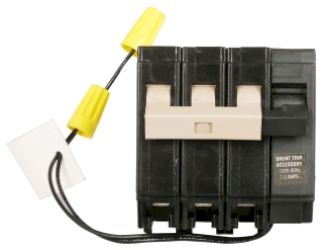

CH3080ST is an Eaton Challenger 3-pole thermal magnetic circuit breaker rated for 80 amps and 240 volts with an included shunt trip.This Type CH circuit breaker is designed for use with Type CH loadcenters and features a common breaker trip mechanism. It supports wire sizes from #10 to 1/0 AWG copper or aluminum and has a 10 kA interrupt rating at 240 volts. The breaker requires three 3/4-inch spaces and is UL 489 certified for safety and reliability.
- Amperage Rating: 80 A
- Voltage Rating: 240 V
- Number of Poles: 3
- Trip Type: Common breaker trip with shunt trip included
- Interrupt Rating: 10 kAIC
- Mounting Type: Bolt-on for Type CH Loadcenters
- Wire Size: #10-1/0 AWG Cu/Al
- Series/Frame: CH Series
- Certifications: UL 489
- Dimensions: 4.5 in length, 3.5 in width, 2.2 in height
Specifications
- Part Number: CH3080ST
- Manufacturer : Challenger
- Brand : Challenger
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 480
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782113364339
- GTIN : 00782113364339
- Country of Origin : Dominican Republic
- Weight : 1
- Certification : UL 489
- Wire Size : #10-1/0 AWG Cu/Al 60°C or 75°C
