Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Load Center
Description
CH2L70SP

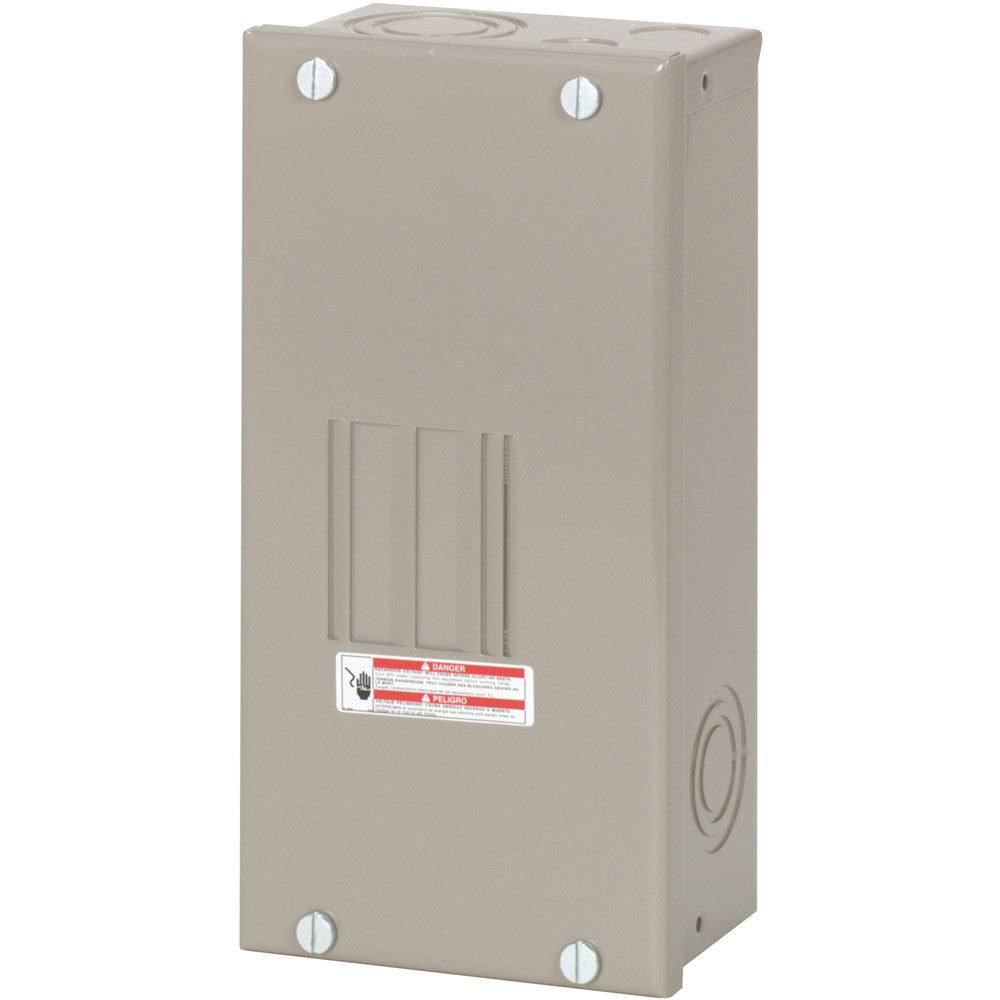

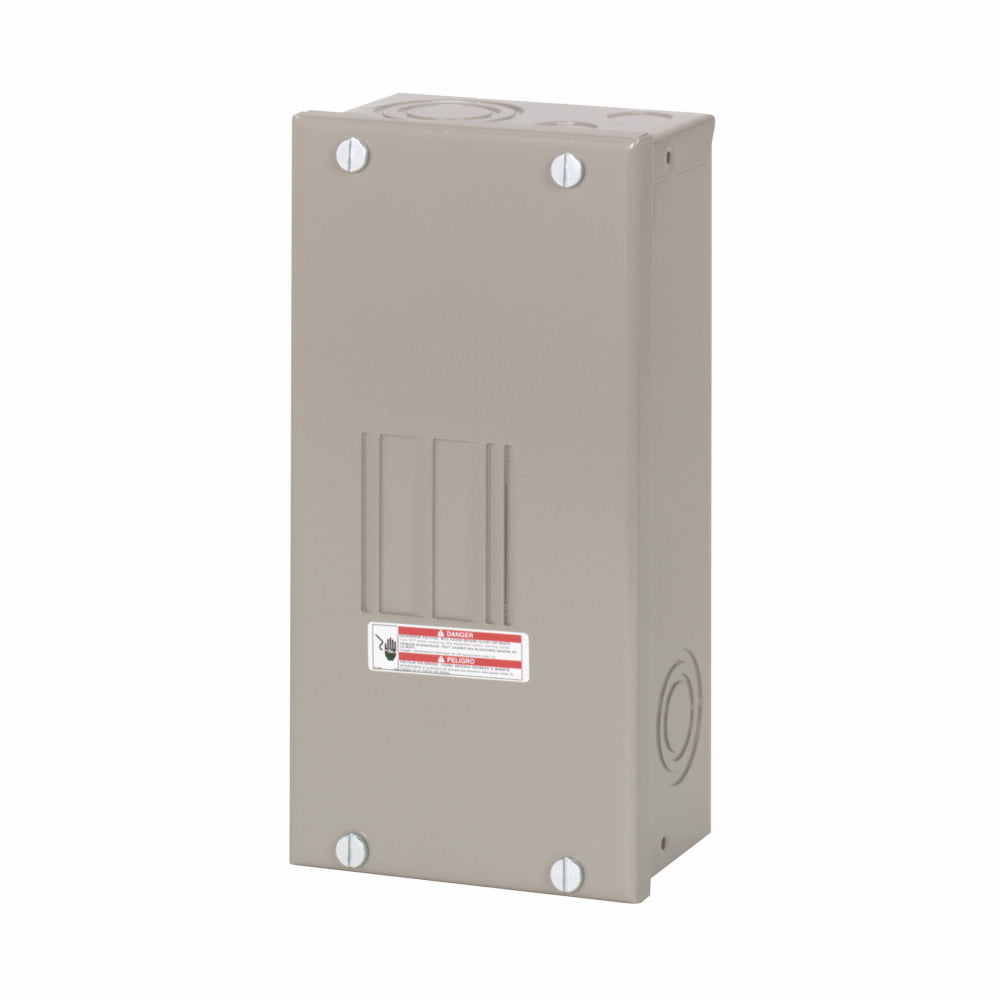

CH2L70SP is a 70A, 2-space, main lug load center designed for single-phase applications with a 120/240V AC rating. This compact panel is ideal for small electrical installations requiring reliable power distribution. The CH2L70SP features a copper bus bar, 25 kAIC interrupt rating, and is compatible with Eaton CH series breakers. It provides two 3/4-inch spaces for circuit breakers and is rated for use with 14 to 2 AWG cables. The NEMA 1 enclosure offers basic indoor protection, making it suitable for residential and light commercial use.
- Amperage Rating: 70A
- Voltage: 120/240V AC
- Number of Circuits: 2
- Number of Spaces: 2
- Poles: 4
- Interrupt Rating: 25 kAIC
- Mounting Type: Surface
- Series/Frame: CH
- Bus Bar Material: Copper
- Enclosure Type: NEMA 1
- Cable Size: 14 to 2 AWG
- Phase: Single-Phase
Specifications
- Part Number: CH2L70SP
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Load Center
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 70
- Phase : 1
- Wire : 3
- Nema Rating : 1
- Bus Type : Copper
Product Data
- UPC : 782114190449
- GTIN : 00782114190449
- Country of Origin : United States
- Dimensions : 9.5 in x 3.13 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 5.25
- Certification : UL 50,UL 67
