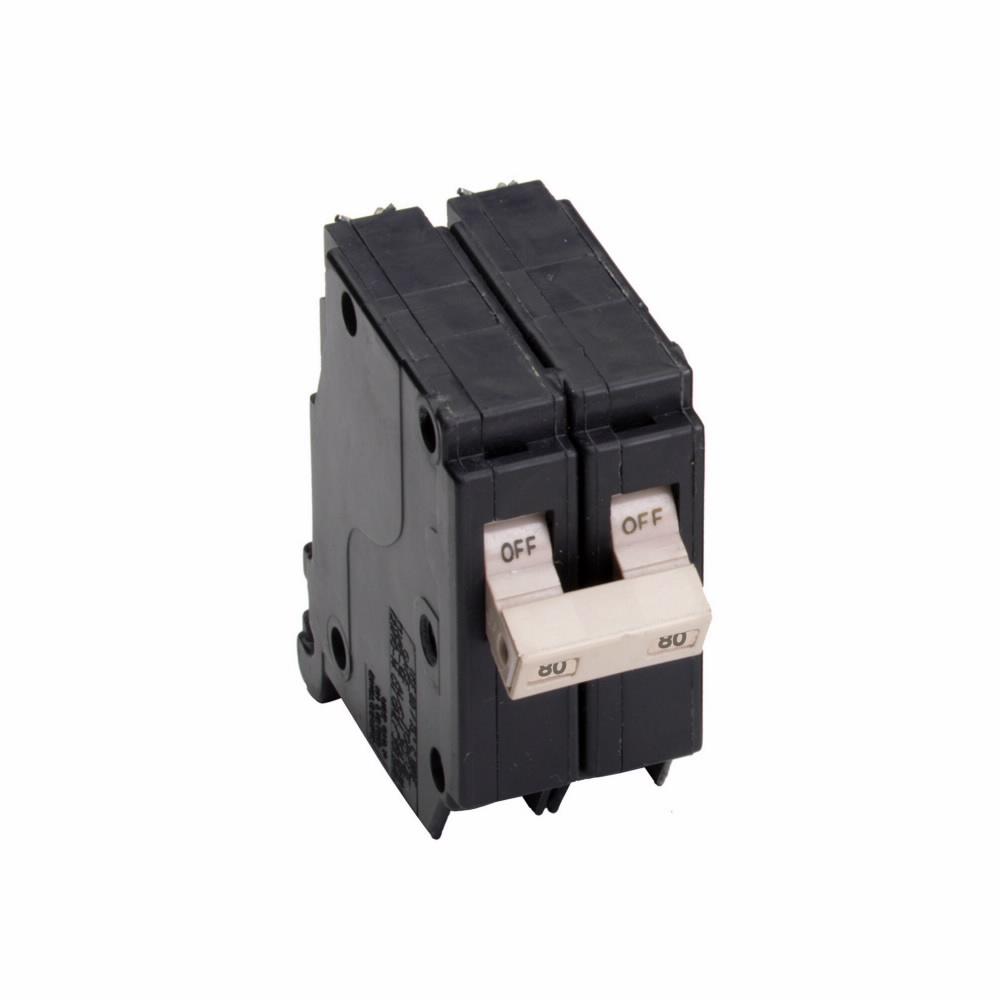

CH280 - Cutler Hammer 80 Amp 2 Pole 120/240V Type CH Circuit Breaker

CH280

This Cutler Hammer CH280 circuit breaker is a 3/4-inch plug-in type compatible with Type CH loadcenters. It supports copper and aluminum wire sizes from #10 to 1/0 AWG and has a 10,000 AIC interrupt rating. The breaker is UL 489 listed and CSA certified, ensuring safety and compliance with industry standards.

Key Specifications
• Amperage Rating: 80 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10 kAIC
• Trip Type: Common Thermal Magnetic
• Frame/Series: Type CH 3/4-inch
• Wire Size: #10 to 1/0 AWG Cu/Al
• Certifications: UL 489 Listed, CSA Certified
• Compatible with Type CH Loadcenters

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: CH280
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 782113312293
• GTIN : 00782113312293
• Country of Origin : Dominican Republic
• Dimensions : 3.5 in x 3.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.5 lb
• Certification : UL 489, CSA
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
