Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
CH250ST

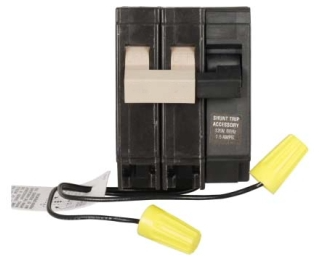

CH250ST is an Eaton CH frame thermal magnetic circuit breaker with a 50 amp rating and 2 poles designed for 120/240V applications.CH250ST features a plug-on mounting method compatible with Eaton Type CH loadcenters. It includes a shunt trip and a trip flag for common breaker trip indication. The breaker has a 10 kA interrupt rating and supports wire sizes from #14 to 2 AWG copper or aluminum. It is UL Listed under UL 489 and HACR rated for HVAC applications.
- Amperage: 50 A
- Voltage: 120/240 V AC
- Poles: 2
- Interrupt Rating: 10 kAIC
- Mounting Type: Plug-on
- Frame/Series: CH
- Trip Unit: Thermal magnetic with trip flag
- Shunt Trip: Included
- Wire Size Range: #14-2 AWG Cu/Al
- Certifications: UL Listed UL 489, HACR Rated
- Compatible with Type CH Loadcenters
Specifications
- Part Number: CH250ST
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 240
- Amperage : 50
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782113339559
- GTIN : 00782113339559
- Weight : 1.5
