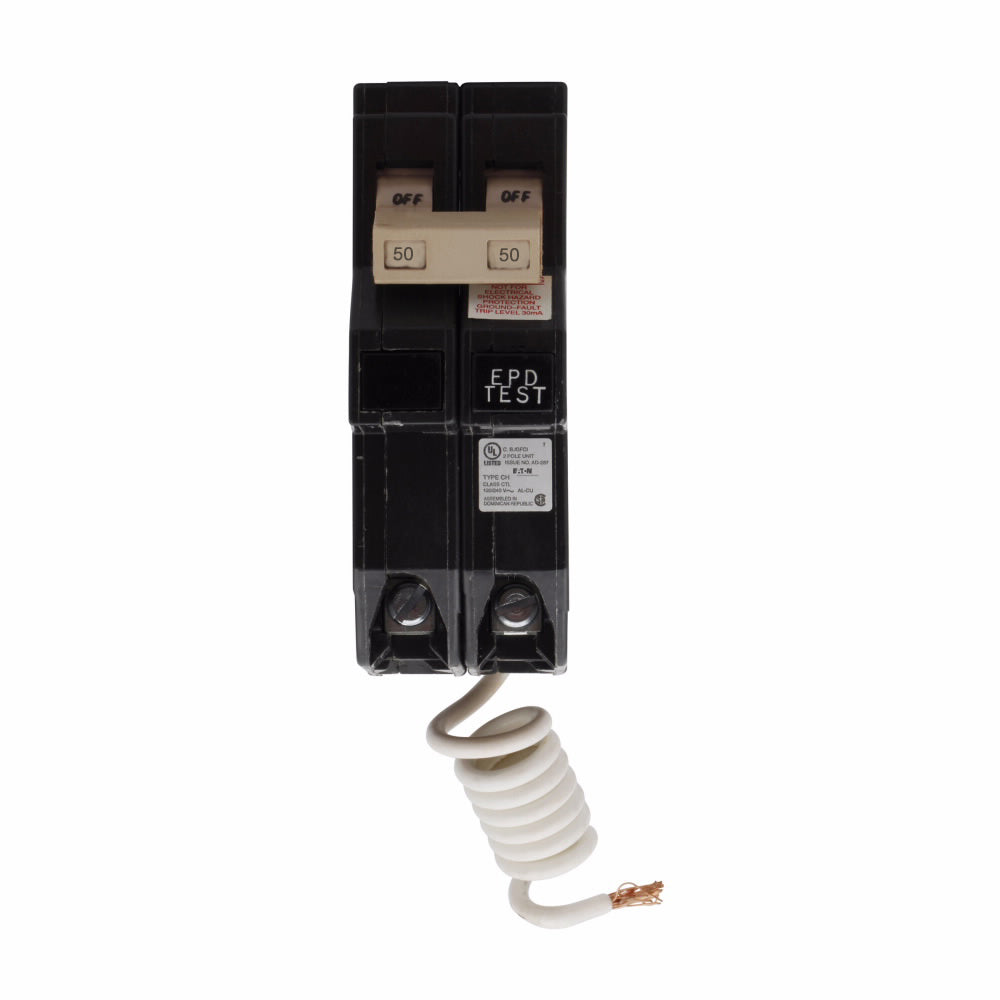

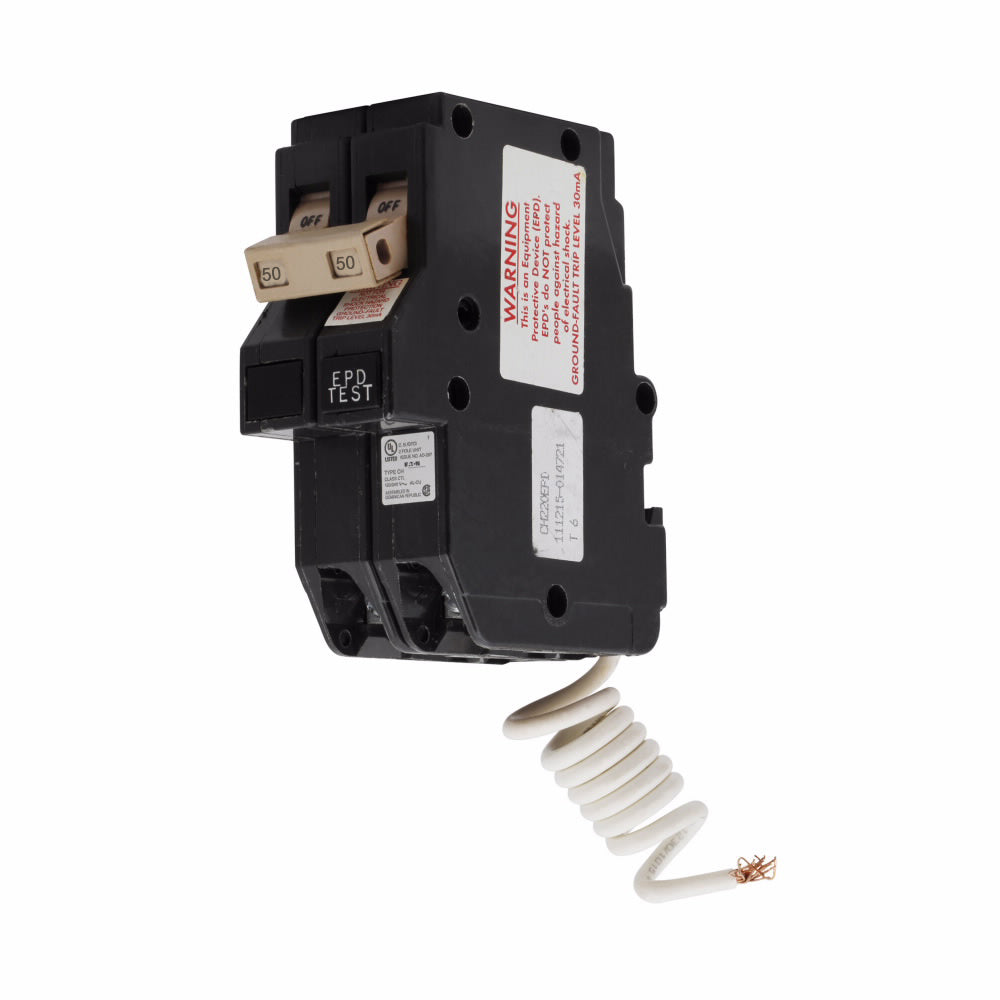

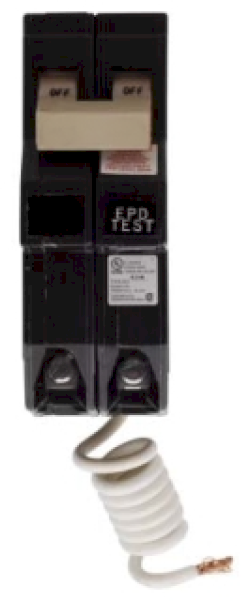

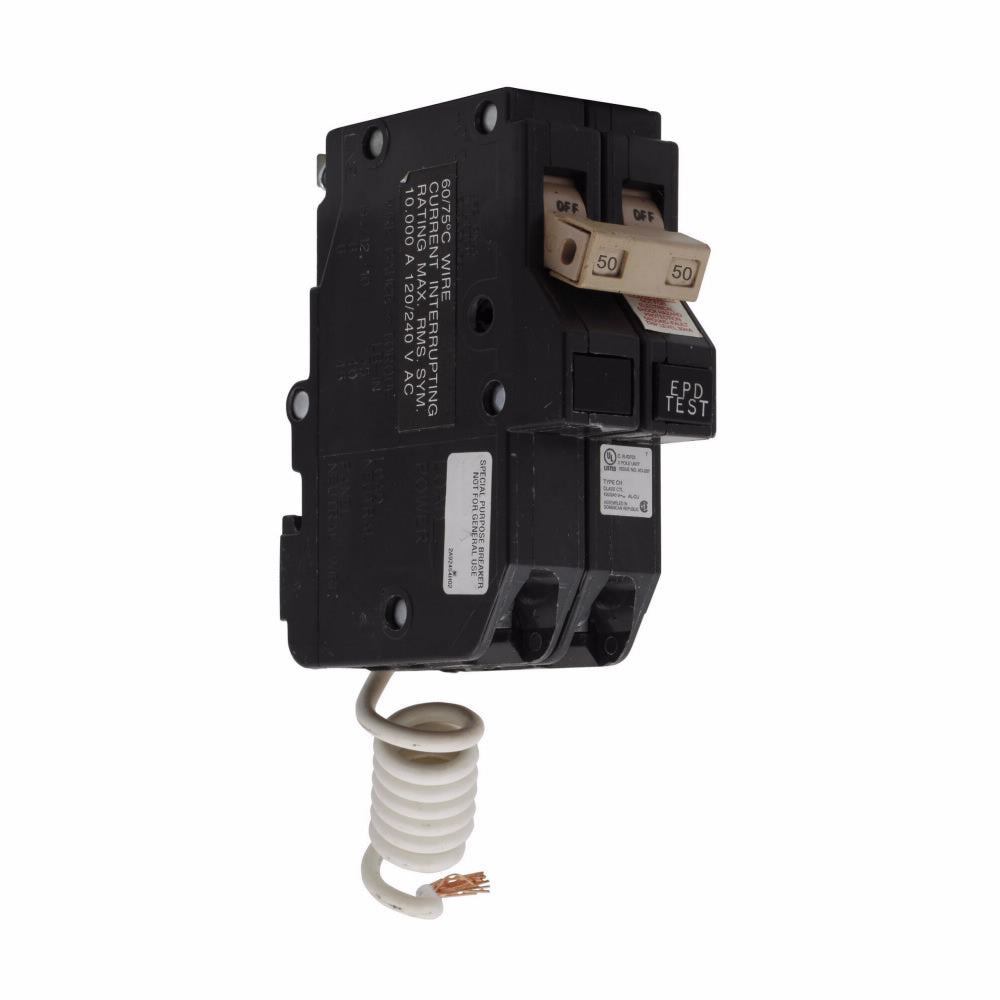

CH250EPD - Cutler Hammer 50 Amp 2 Pole 120/240 Volt GFCI Molded Case Circuit Breaker CH Series

CH250EPD

CH250EPD is a Cutler Hammer 50 Amp 2 Pole 120/240 Volt GFCI molded case circuit breaker designed for reliable ground fault protection.This Eaton Cutler Hammer CH Series circuit breaker features thermal magnetic protection with long-time and instantaneous trip functions. It is a plug-in type breaker compatible with Type CH loadcenters, rated for 10kA interrupting capacity at 240V. The breaker supports wire sizes from #14 to 6 AWG copper or aluminum and is UL listed for safety and performance.

Key Specifications
• Amperage: 50 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10kAIC at 240V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Mounting Type: Plug-In
• Series/Frame: CH
• Wire Size: #14-6 AWG Cu/Al
• Phase: Single Phase
• Certifications: UL Listed
• Type: Ground Fault Circuit Interrupter (GFCI)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CH250EPD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 782113912981
• GTIN : 00782113912981
• Country of Origin : Dominican Republic
• Dimensions : 6 in x 2.2 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : UL 489
• Wire Size : #14 to 6 AWG Cu/Al
